Summary of Contents for Harman BSS Soundweb London BLU-HIF
- Page 1 Soundweb London BLU-HIF Installation Guide 18-0777-A...
- Page 2 DOES NOT break the connection from the mains. As colours of the cores in the mains lead of this appliance may not correspond Harman Music Group MAINS DISCONNECT: The plug shall remain readily operable. For rack- with the coloured markings identifying the terminals in your plug, proceed...

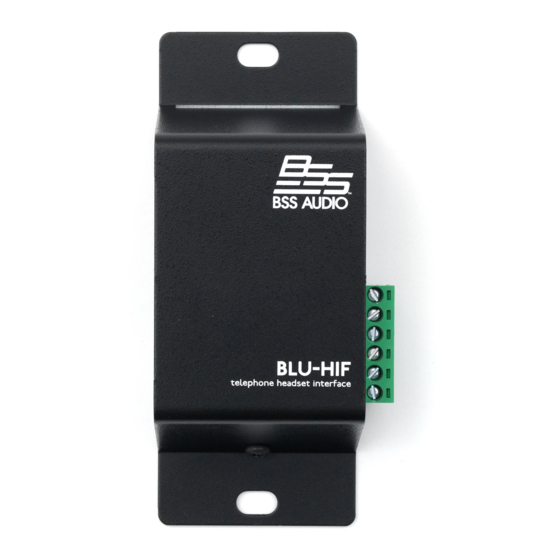

- Page 3 Operating Instructions Overview The BSS Audio BLU-HIF Telephone Headset Interface facilitates connection of the headset jack of a VoIP/digital phone to an AEC input and analog output of a Soundweb London device. The BLU-HIF therefore allows the VoIP/digital phone to be used as the dialing interface and hybrid for a conference system.
- Page 4 Balanced wiring - The convention for balanced wiring (2-core plus shield) is shown here: Balanced cable Cold Shield Unbalanced wiring - The convention for unbalanced wiring to the inputs (1-core plus shield) is shown here: Unbalanced cable Shield Link between pins (S) and (-) (optional for inputs) Telephone Headset –...
- Page 5 Telephone Headset – 2.5mm Jack The additional 2.5mm jack facilitates connection of two-way communication devices such as cellular phones to a Soundweb London device. This gives the end user the advantage of having an alternate communication path to the outside world, which is particularly useful as a backup to the main phone system.
- Page 6 Figure 4: Locating the Internal Jumper Figure 5: Setting the Internal Jumper ...
- Page 7 T e c H n I c a L S p e c I F I c a T I o n S : Headset Jacks: RJ-22 or 2.5mm TRS Line-Level Audio Jacks: 6 Pos 5.08 Phoenix/Combicon Headset I/O: Transformer Isolated Line-Level Audio I/O: Transformer Isolated, Balanced Maximum Input level:...
- Page 8 BSS Audio 8760 South Sandy Parkway Sandy, Utah 84070 801-566-8800 www.bssaudio.com Printed in the USA...
