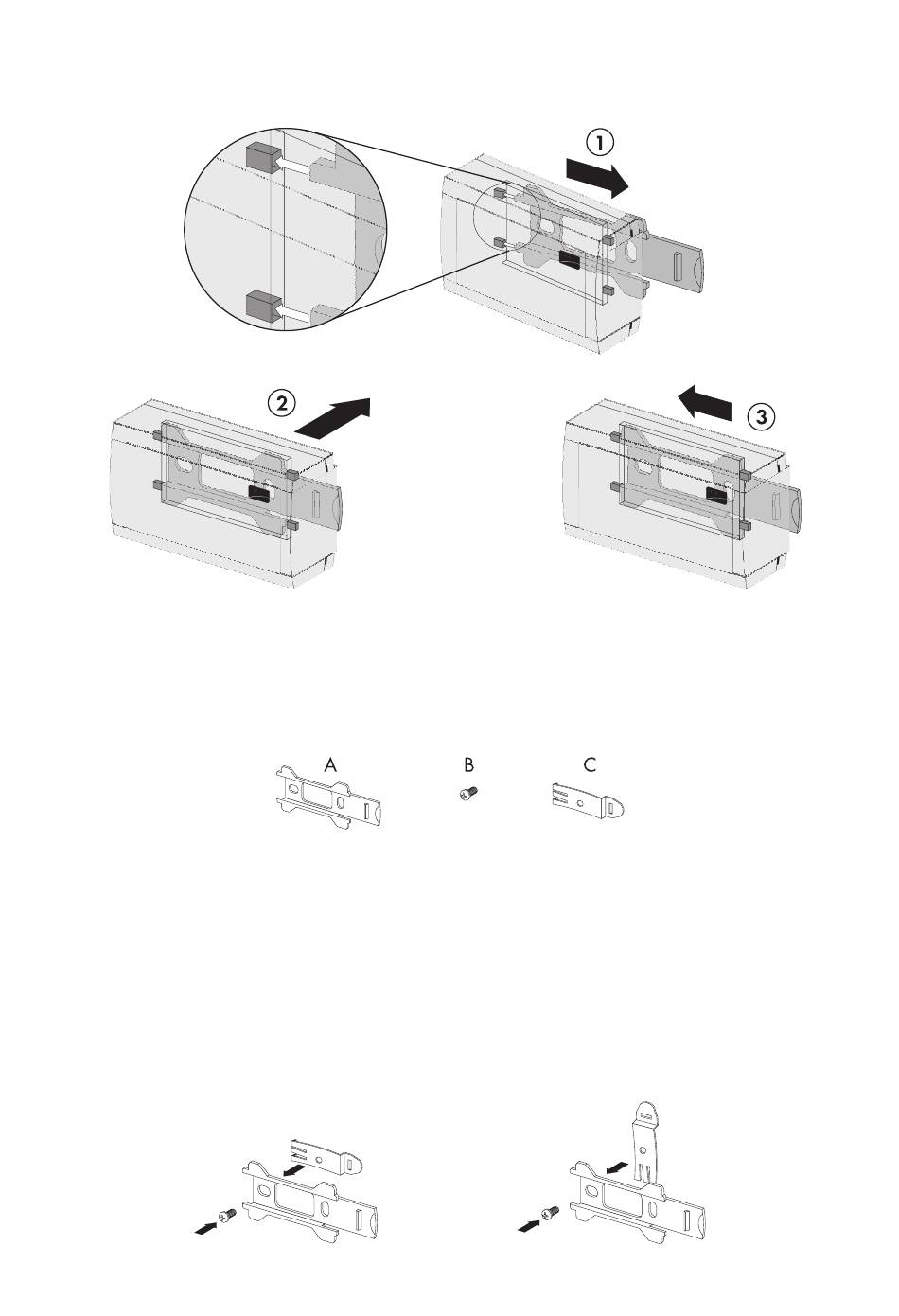

4. Mount the Schoolmeterbox onto the bracket as shown in the illustration.
☑ The Schoolmeterbox has been mounted.

4.3 Mounting the Schoolmeterbox onto a DIN Rail

Mounting accessories provided
A 1 Bracket
B 1 Screw
C 1 Fastener
1. Choose the mounting location as described in section 4.1„Mounting Location" (8).
2. Fix the clip onto the bracket with the screw, as shown in the illustration.
Turn the clip according to whether you want to mount the Schoolmeterbox vertically or
horizontally.
Installation Guide
Mounting the Device
SMETER-IEN084710 9
