C. Select the Units of Operation
The LI23 series can show various engineering units in groups such as Volume, Height, Temperature,
Pressure, Weight, Rate or Custom. This quick start will focus on Volume and Height. The other units
will be covered in the product manual.
Volume can be display in Gallons, Liters, Imperial Gallons, Cubic Meters, etc. Height can be displayed
in inches, feet, cm, meter, etc. Please determine the units of operation that you want to appear on the
display.
To set the Units of Operation:
1) Press MENU button to bring up the SETUP/Input screen.
2) Press ENTER button to bring up SCALE/Units screen.
3) Press ENTER to bring up SCALE/Height screen.

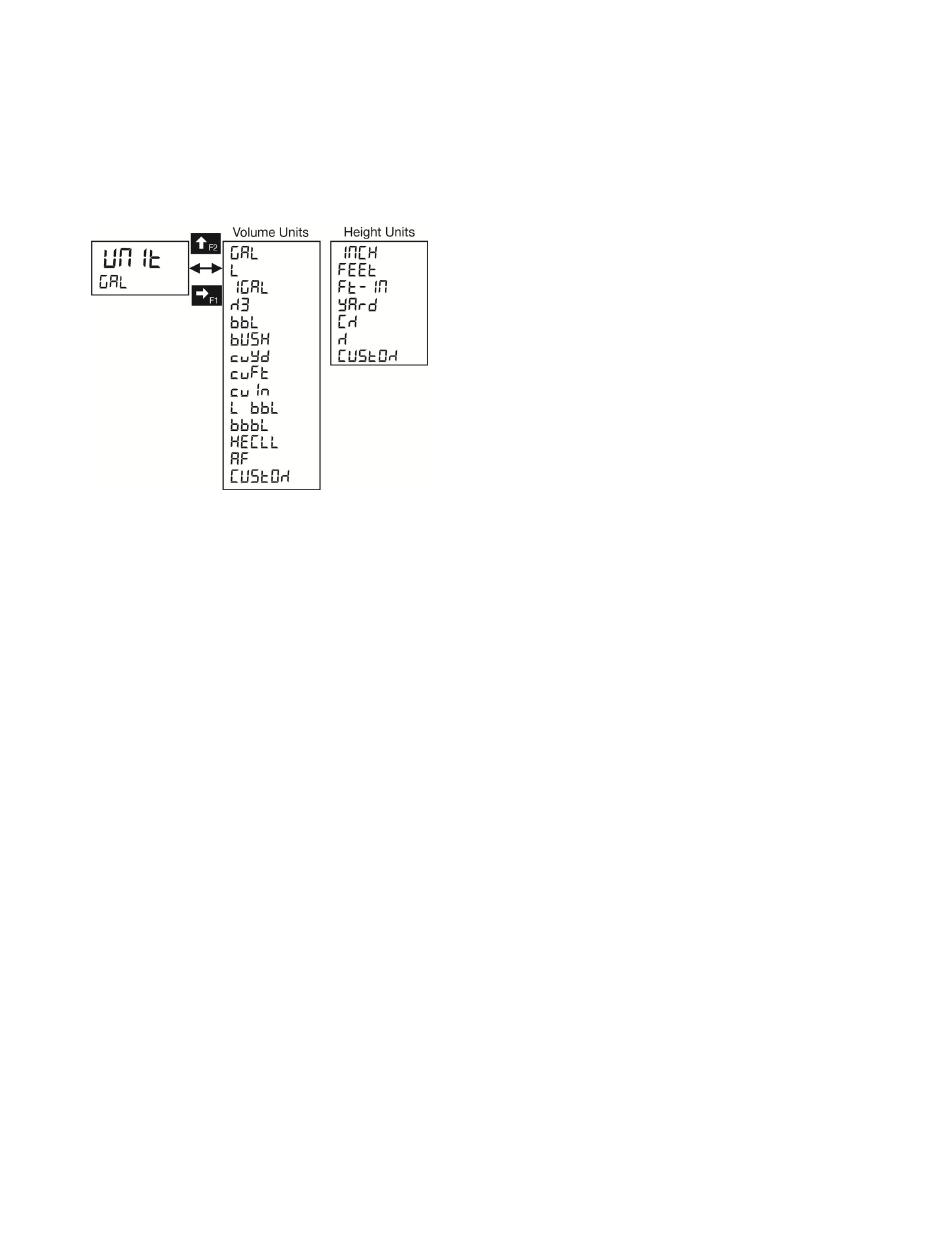

4) Use the Right Arrow or Up Arrow to change the groups between HEIGHT and VOLUME.
5) Press ENTER button to select your group.
6) Use the Right Arrow or Up Arrow to change the engineering units to your required units of operation.
7) Press ENTER button to save your selection.
8) Press MENU button twice to return to Main Screen.
