B. Select the Decimal Points Location
The decimal point may be set to as many as five decimal places. Use the Decimal Point feature to
position the decimal point for all values displayed. Placement of the Decimal Point can influence the
displayed output of your process. For example, setting a scale of 0 to 100% can be show in three
different methods:
Method #1
Method #2
Method #3
When selecting a decimal point, take into account the practical scale for reading the level of liquid.

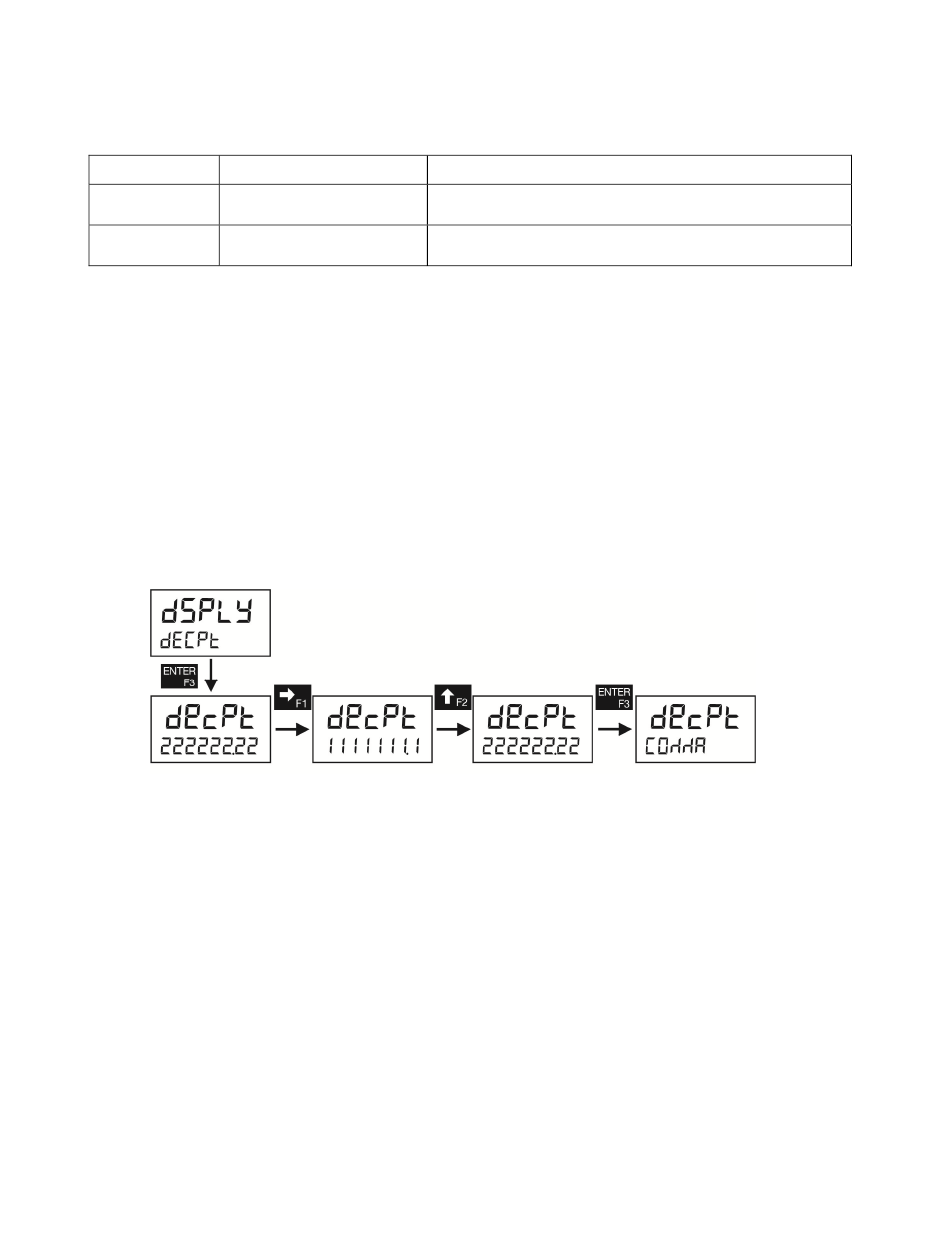

To set the Decimal Point:
1) Press the MENU button to bring up the SETUP/Input screen.
2) Press Up Arrow button to bring up SETUP /Display screen.
3) Press ENTER button to bring up DSPLAY/Units screen.
4) Press Right Arrow to bring up DSPLAY/decpt screen.
5) Press ENTER to bring up DECPT/XXXXXX.XX screen.
6) Use the Right Arrow or Up Arrow to change the location of the decimal point. The location of the
decimal point can be seen on the bottom display. Note: typical applications will set the decimal point to
the 0, 1 or 2 location.
7) Press ENTER button to save your selection.
8) Press MENU button twice to return to Main Screen.
