b. If the value needs to changed, use the UP Arrow to incrementally increase the selected digit and the
Right Arrow to move to the next digit.

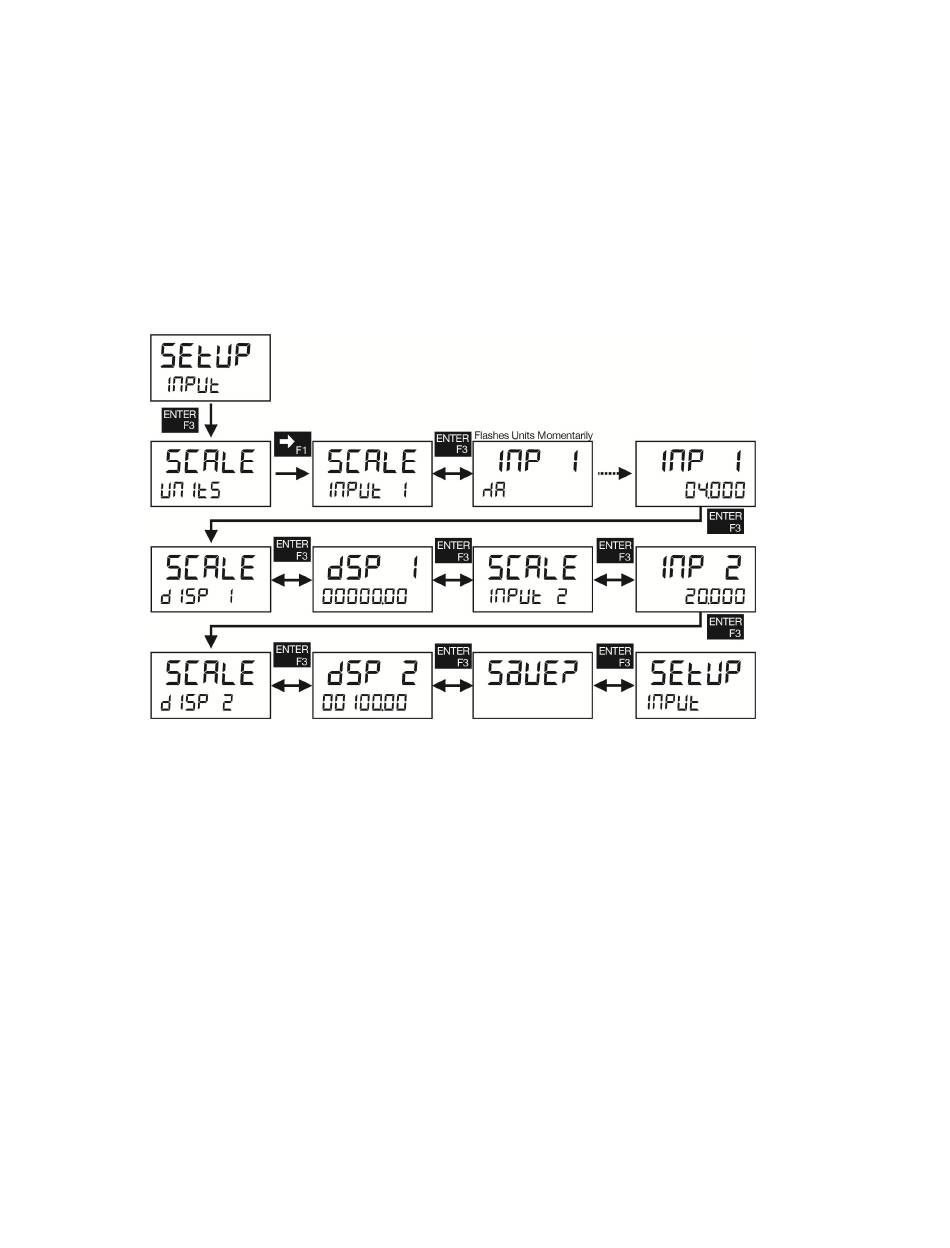

9) Press ENTER to save the Input 2 setting and to bring up SCALE/DISP_2 screen.
10) Press ENTER to bring up DSP_2/00100.00 screen.
a. The default is 00100.00 and typically be the value you want to display when the tank is full.
b. To change the value, use the UP Arrow to incrementally increase the selected digit and the Right
Arrow to move to the next digit.
c. If you are reading the height of the liquid, this value will typically be the same value as the Fill-Height
setting in the Flowline transmitter.
d. If you
11) Press ENTER to save the Display 2 setting and to bring up SAVE? screen.
12) Press ENTER to save all the settings and to bring up SETUP/INPUT screen.
13) Press the MENU button to return to the main screen.
