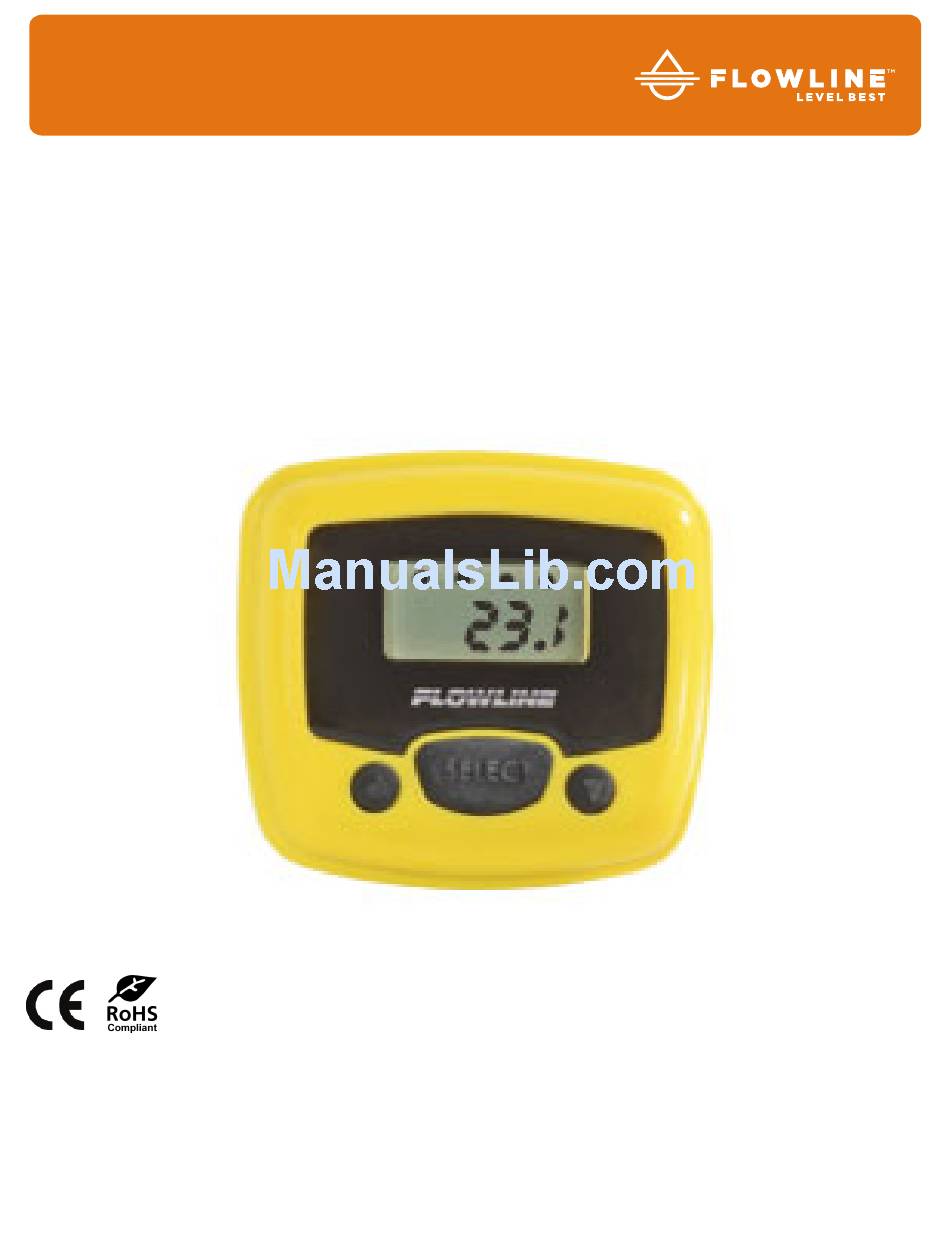

- Page 1 PodView ® Level Indicator LI40 Series Quick Start ©2016 Flowline, Inc. All Rights Reserved Made in USA Flowline, Inc. | 10500 Humbolt Street, Los Alamitos, CA 90720 p 562.598.3015 f 562.431.8507 w flowline.com QS204260 Rev B...
- Page 2 If you have a non-standard installation or setup requirement that is not addressed here, ® please refer to the PodView Manual or support documentation at flowline.com. WE DO YOUR LEVEL BEST™ Thank you for purchasing PodView ®...
- Page 3 MOUNTING PODVIEW ® PodView ® is designed for panel mount installations, either located within an instrument panel or through the wall of a NEMA box enclosure. Panel Installation The maximum cable distance between PodView ® and EchoPod ® is 15’ (4.5m). Follow the below steps to install the indicator in a panel or NEMA box enclosure located near EchoPod ®...
- Page 4 WIRING PODVIEW ® PodView ® and EchoPod ® require a 12 to 28 VDC power supply to operate. The maximum cable distance between PodView ® and EchoPod ® is 15’ (4.5m). Follow the below steps to wire PodView ® with EchoPod ®...
- Page 5 USING PODVIEW ® PodView ® features a 6-digit LCD display with relay indicators and a three-button user interface. PodView ® displays the measured value, relay status (assuming the sensor model has relays and they were configured for use) and set point configuration of the attached EchoPod ®...
- Page 6 Changing Pump Set Points ® EchoPod sensor models with relays have (1-4) channels. If after accessing the MENU, PUMP appears in the display, then at least (1) relay is configured for pump or valve control. Simplex pump control has (1) ON and (1) OFF setting.
- Page 7 Changing Alarm Set Points ® EchoPod sensor models with relays have (1-4) channels. If after accessing the MENU, ALARMS appears in the display, then at least (1) relay is configured as an alarm. The alarm settings may be in any combination of LOW and/or HIGH alarms (such as 4-HIGH or 1-LOW &...
- Page 8 WARRANTY Flowline warrants to the original purchaser of its products that such products will be free from defects in material and workmanship under normal use and service in accordance with instructions furnished by Flowline for a period of two years from the date of manufacture of such products. Flowline's obligation under...
