E. Adjust the Bar Graph
The LI23 series can show various engineering units in groups such as Volume, Height, Temperature,
Pressure, Weight, Rate or Custom. This quick start will focus on Volume and Height. The other units
will be covered in the product manual.
The LI23 Series comes equipped with a bar graph display for applications where a visual
representation of the process variable's percentage of full scale is desirable. This feature can be
enabled or disabled using the Bargraph menu (BARGRAPH). The value displayed on the bar graph can
be the percentage of full scale (PV PCT) or the percentage of a user-programmable range (PV).

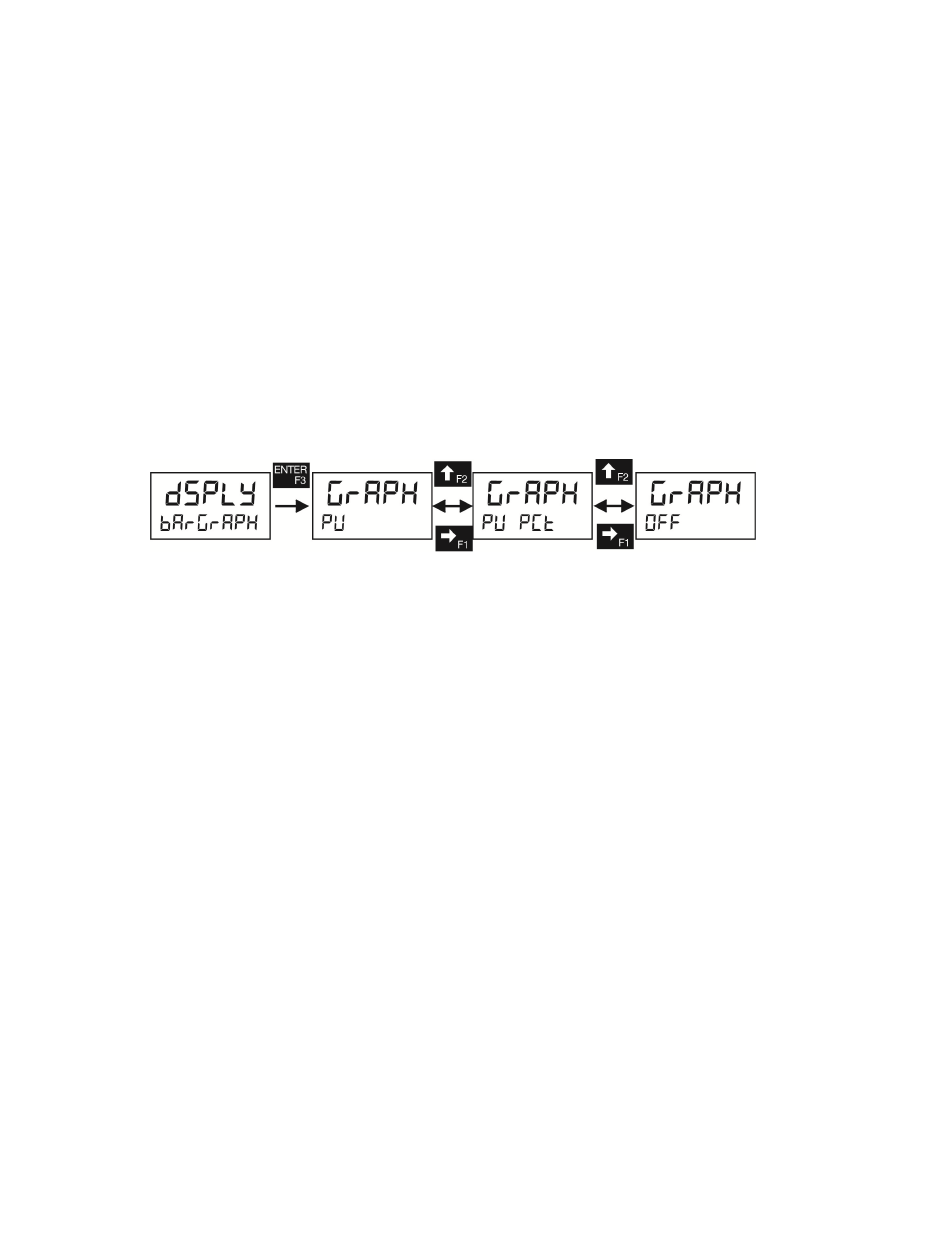

To set the Bar Graph:
1) Press the MENU button to bring up the SETUP/Input screen.
2) Press Up Arrow button to bring up SETUP /Display screen.
3) Press UP Arrow or RIGHT Arrow button three (3) times to bring up DSPLAY/Bargraph screen.
4) Press ENTER to bring up GRAPH/PV PCT screen.
5) Use the Right Arrow or Up Arrow to change the setting to either PV, PV PCT or OFF.
6) Press ENTER button to save your selection.
7) Press MENU button twice to return to Main Screen
QS302100 Rev. A
.
11
|
