Generic ProtoNode Startup Guide
3
INTERFACING THE PROTONODE TO HOST OEM DEVICE
3.1

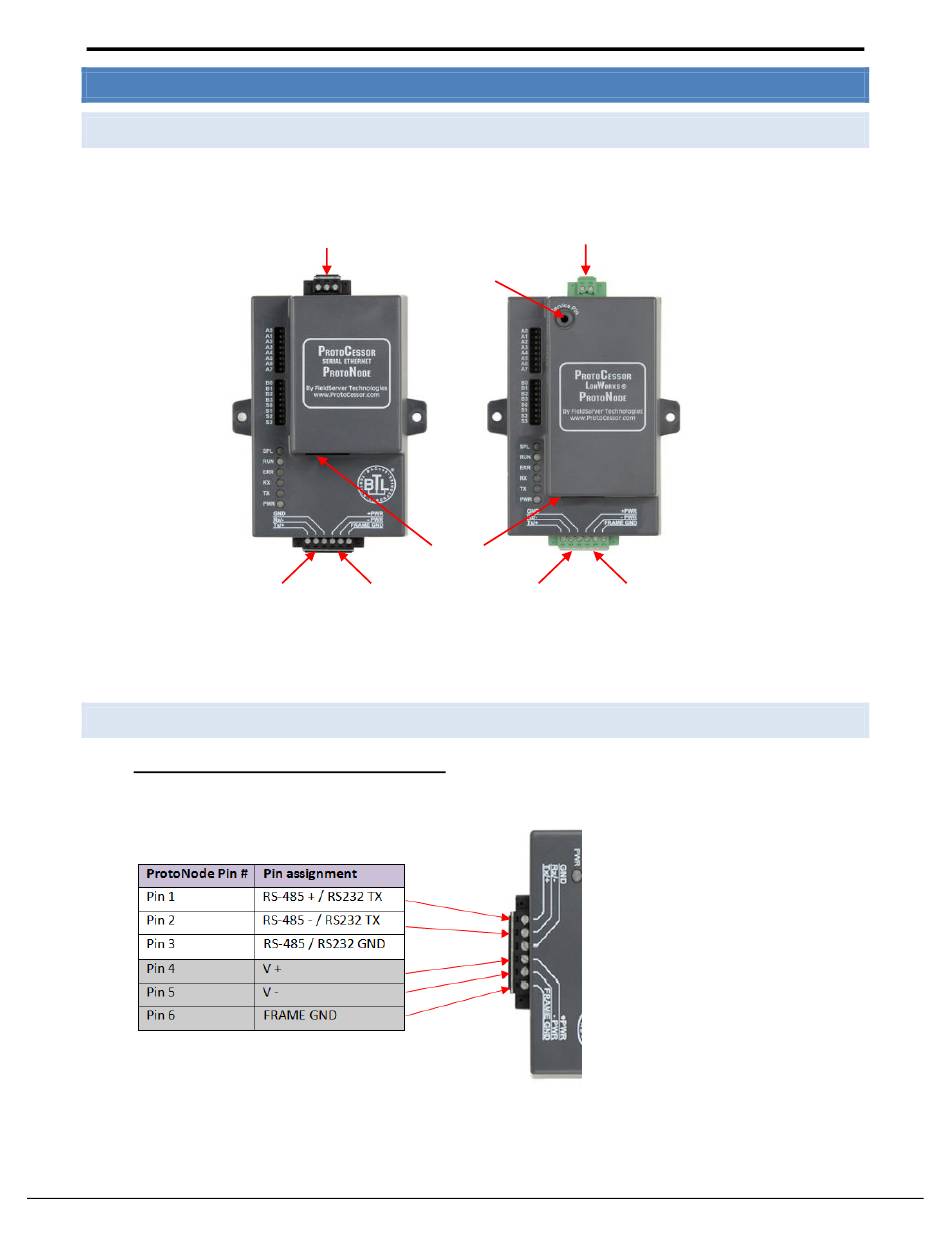

ProtoNode RER and LER showing connection ports
Serial Field Protocol
OEM
Connection
RS-485 Port
3.2
Wiring Connections to ProtoNode RER and LER
ProtoNode 6 Pin Phoenix connector – Pinouts
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Tel: (408) 964 4444 Fax: (408) 262-2269 Toll Free: 888-509-1970 X141 email: support@protocessor.com
RS-485 Port for
LonWorks
Service Pin
10/100
BaseT
Power +/- and FG
9-30 VDC, 12-24 VAC
Figure 4: ProtoNode RER (left) and LER (right)
LonWorks Port
OEM
Power +/- and FG
Connection
9-30 VDC, 12-24 VAC
RS-485 Port
Page 7 of 25
