Generic ProtoNode Startup Guide
4.2

Use the ProtoNode Web GUI to Connect to the ProtoNode

Open PC web browser enter the default IP address of the ProtoNode 192.168.1.24 determine if the
ProtoNode is up and communicating.

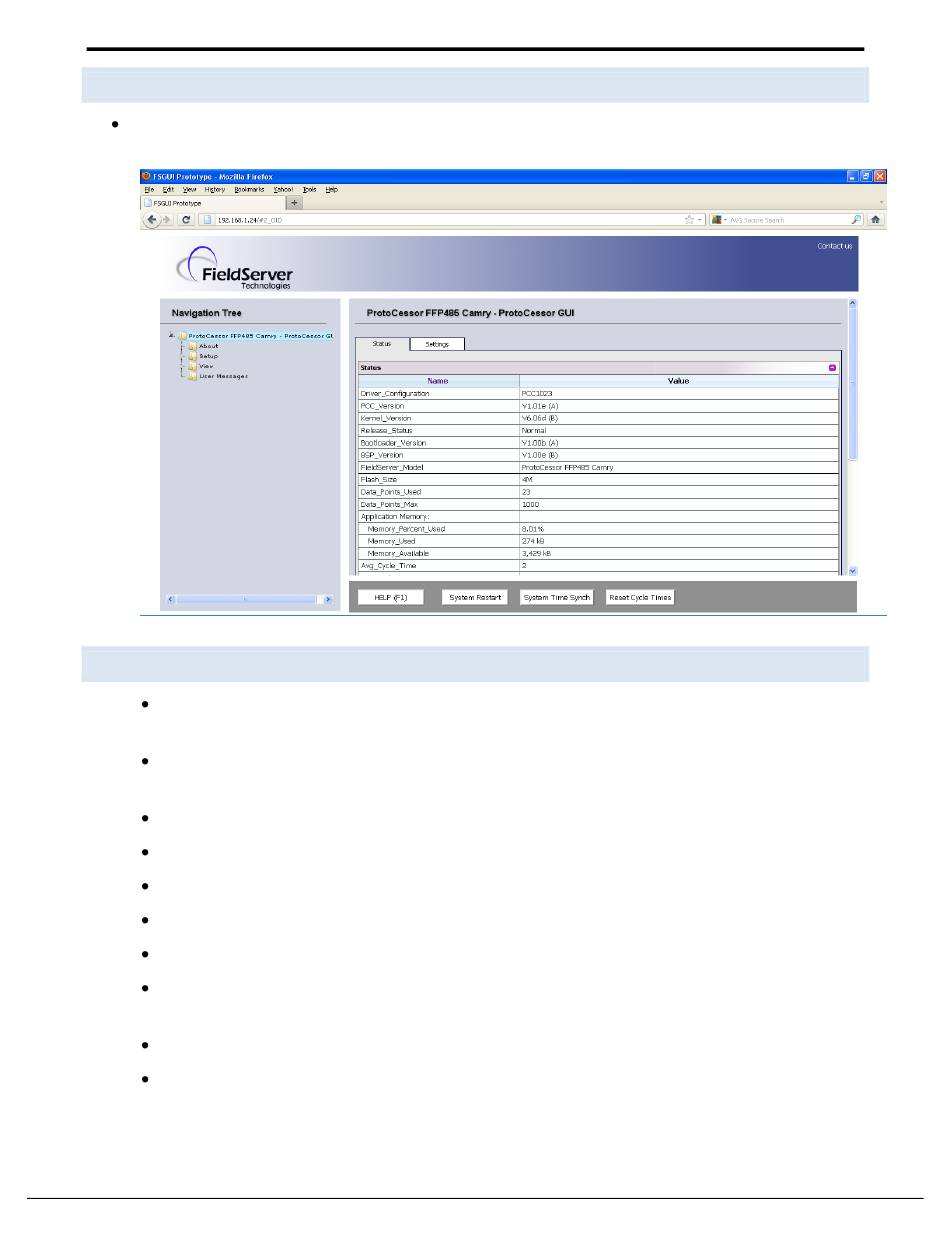

Figure 8: FST Web GUI screen
4.3

Set IP Address for BACnet/IP

Open a PC web browser, enter the default IP address of the ProtoNode 192.168.1.24 and connect to
the ProtoNode.
From the GUI main home page, click on setup and then Network Settings to enter the Edit IP Address
Settings menu.
Modify the IP address (N1 IP address field) of the ProtoNode Ethernet port.
If necessary, change the Netmask (N1 Netmask field).
Type in a new Subnet Mask
If necessary, change the IP Gateway (Default Gateway field)
Type in a new IP Gateway
Note: If the ProtoNode is connected to a router, the IP Gateway of the ProtoNode should be set to the
IP address of the router that it is connected to
Reset ProtoNode
Unplug Ethernet cable from PC and connect it to the network hub or router
