Generic ProtoNode Startup Guide
4
CONNECT THE PROTONODE'S WEB GUI TO SETUP IP ADDRESS FOR BACNET/IP OR
MODBUS TCP
4.1
Connect the PC to the ProtoNode via the Ethernet port

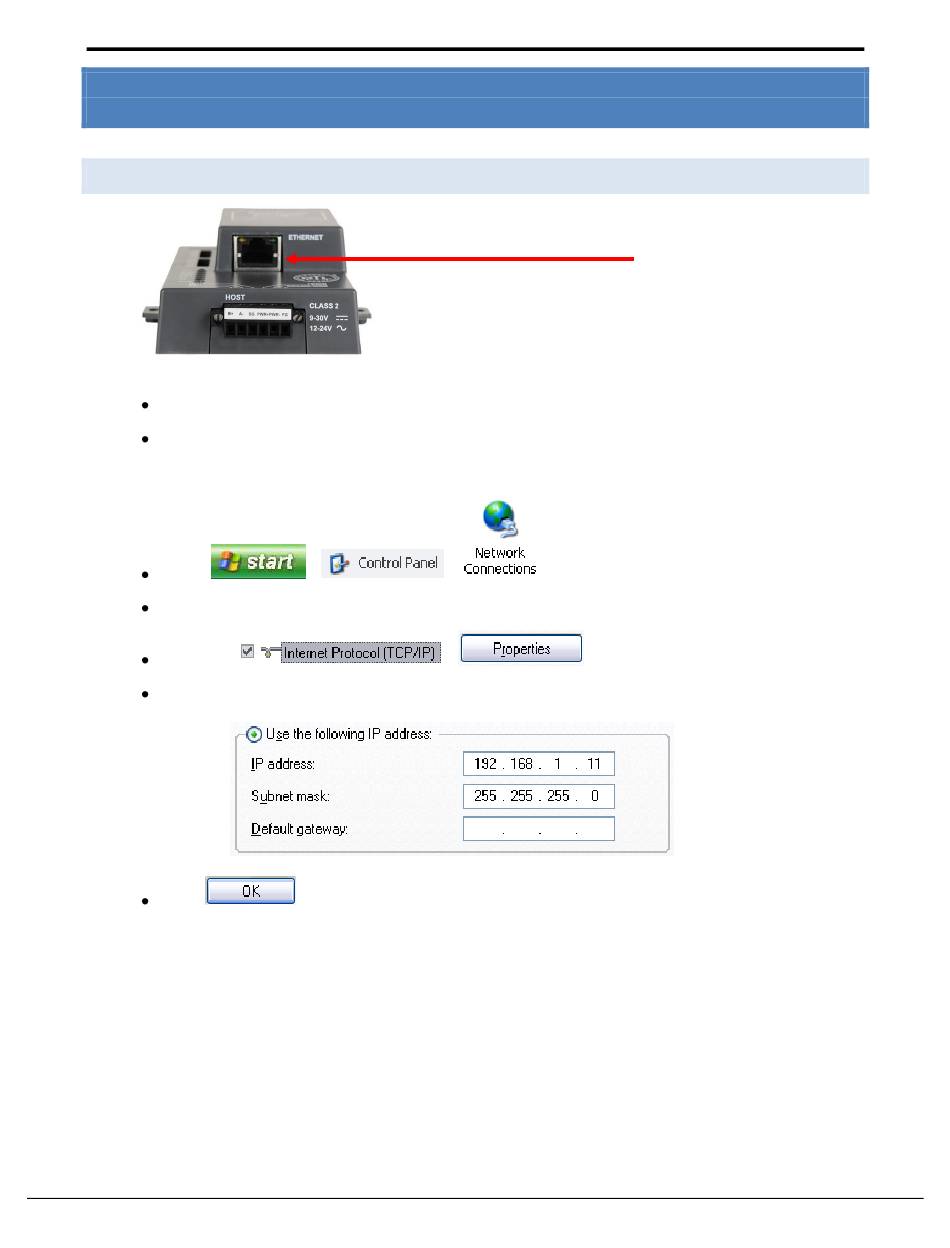

Figure 7: Ethernet port location of ProtoNode
Connect a standard CAT5 Ethernet cable (straight through or cross) between the PC and ProtoNode
The Default IP Address of the ProtoNode is 192.168.1.24, Subnet Mask is 255.255.255.0. If the PC and
the ProtoNode are on different IP Networks, assign a static IP Address to the PC on the 192.168.1.xxx
network
Go to
Right-click on Local Area Connection > Properties
Highlight
Select: Use the following IP address
Click
