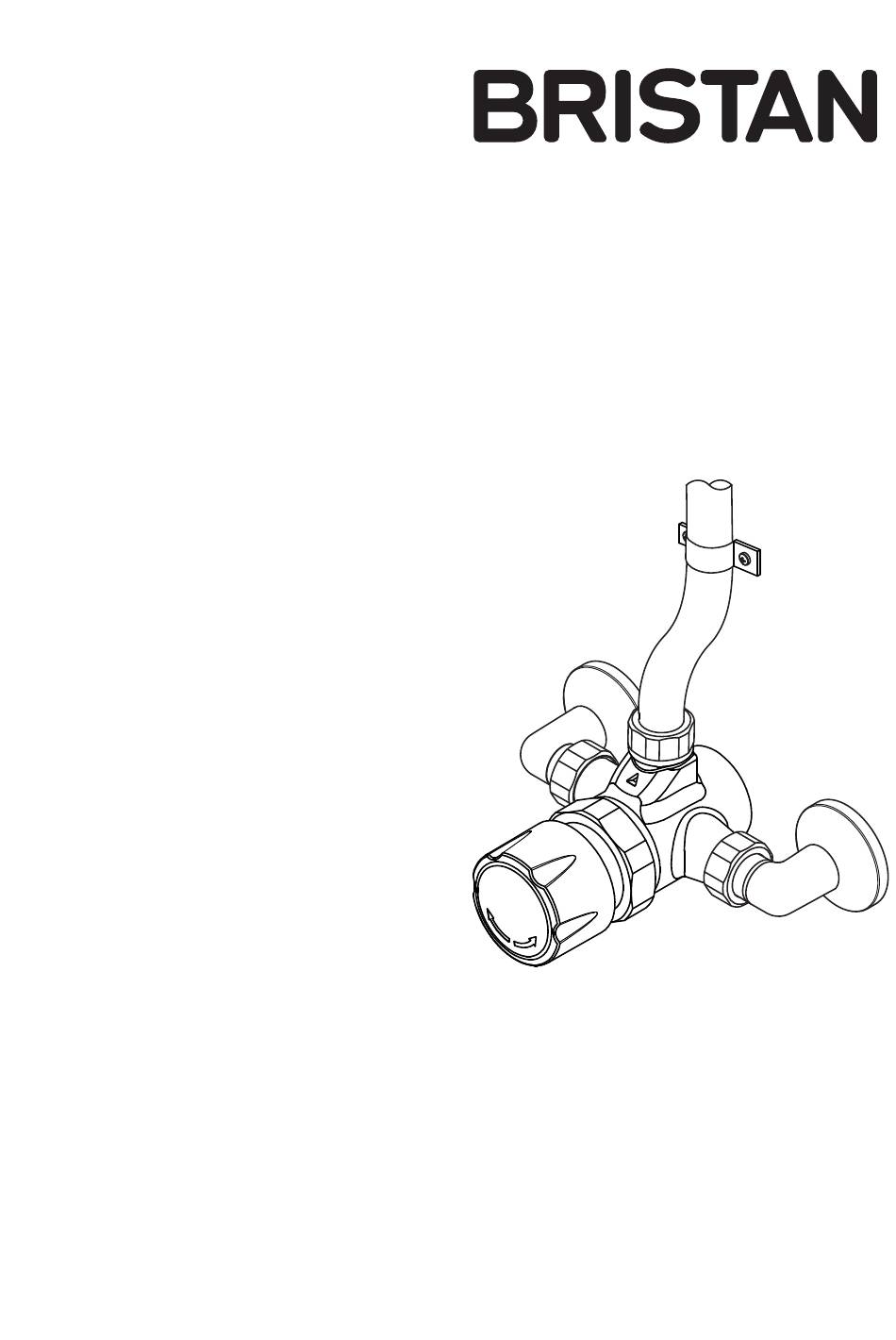

- Page 1 Installation Instructions & User Guide Temperature Control Time Flow Shower Models covered: TFS 1 C Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
-
Page 2: Table Of Contents
Contents Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have designed this product with your enjoyment in mind. To ensure that it works to its full potential, it needs to be fi tted correctly. These fi tting instructions have been created to give you all of the information you need and if you need any further help, please do not hesitate to contact us. -
Page 3: Important Safety Information
Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions. •... -
Page 4: Specifi Cations
Specifi cations Inlet Connections: 15mm Compression with 145-165mm between centres. Outlet Connection: 22mm Compression. Minimum working pressure: 1.0 bar Maximum working pressure: 5.0 bar Maximum static pressure: 10.0 bar System Requirements: Gravity fed hot & cold (Equal pressures) Gravity fed hot & cold (Differential pressure, maximum ratio 5:1) Unvented systems Instantaneous water heater (Combination boiler) Timed Flow: 30 Seconds ±... -
Page 5: Dimensions
Dimensions Dimensions are in millimetres. G3/4" 145-165 Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. -
Page 6: Pack Contents
Pack Contents Shower Valve Elbows Olives Compression Nuts Shrouds Filter Washers 8 L/P/M Flow Regulator Screws Wall Plugs Riser Rail Riser Clamp Washer Shower Head Suggested Fittings (Not Supplied) 1/2" Female 1/2" Female - Wall plate elbow Copper connector Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. -
Page 7: Installation
Installation Supporting 1. Prepare water supply pipes Batton Terminate suitable pipework inside the wall cavity / stud partition with 145-165mm pipe centres and 1/2" BSP female connectors. Flush through the pipework to ensure 1/2" BSP removal of any debris. Female Connection Important: The pipework and 1/2"... - Page 8 Installation 4. Fit Shower Valve Place the shower valve body into position against the wall and adjust the elbows to the valve body ensuring the fi lter washers are fi tted into the elbow nuts. Tighten the elbow nuts ensuring the are fully tightened with the use of a suitable spanner.
-
Page 9: Operation & Temperature Setting
Operation & Temperature Setting 1. Flow Control To operate the flow of water push the central control knob firmly in and release. The water will fl ow for approximately 30 seconds ± 5 seconds. 2. Temperature Turn the control knob clockwise for a cooler temperature. -
Page 10: Maintenance
Maintenance General Cleaning Your fi tting has a high quality fi nish and should be treated with care to preserve the visible surfaces. All surfaces will wear if not cleaned correctly, the only safe way to clean your mixer is to wipe with a soft damp cloth. - Page 11 Clip Elbow If the NRV's are damaged replace with a new NRV supplied by Bristan. Replace the NRV into the housing and push back into the valve body ensuring the 'O' ring on the bottom of the housing is fi...
-
Page 12: Troubleshooting
Troubleshooting Symptom Cause Remedy Shower will not Isolation valves closed. Open Isolation valves. operate when User is holding in control knob. Release control knob. control knob is The water will not fl ow if the fully pushed in. control knob is held in by the user. -
Page 13: Troubleshooting
Troubleshooting Symptom Cause Remedy Poor fl ow from Showerhead blocked. Remove showerhead and clean spray plate. showerhead. Flow regulator blocked. Remove fl ow regulator and clean. Turn off the mains water supply or close any isolation valves before removing the riser / fl ow regulator. -
Page 14: Guarantee
Guarantee At Bristan, we want to make things as • Repair under this guarantee does not easy as possible for our customers. That’s extend the original expiry date. The why we design products that are easy to guarantee on any replacement parts or fit and use, and that are quality tested to product ends at the original expiry date. - Page 15 ‘phone or with a spare part, then we’ll guarantee period, contact Bristan Care send out one of our Bristan Care Customer Service on 0844 701 6273 with engineers to take a look. Bristan Care...
- Page 16 Part Number: FI TFS 1 C Issue: D3 Useful contact details: Customer Service: 0844 7016273 Bristan Group Ltd. Customer Service Email: Birch Coppice Business Park Customercare@bristan.com Dordon Tamworth Customer Service Fax: Staffordshire 0844 7016275 B78 1SG Reception: Web: www.bristan.com 0844 7016274 Email: enquire@bristan.com...
