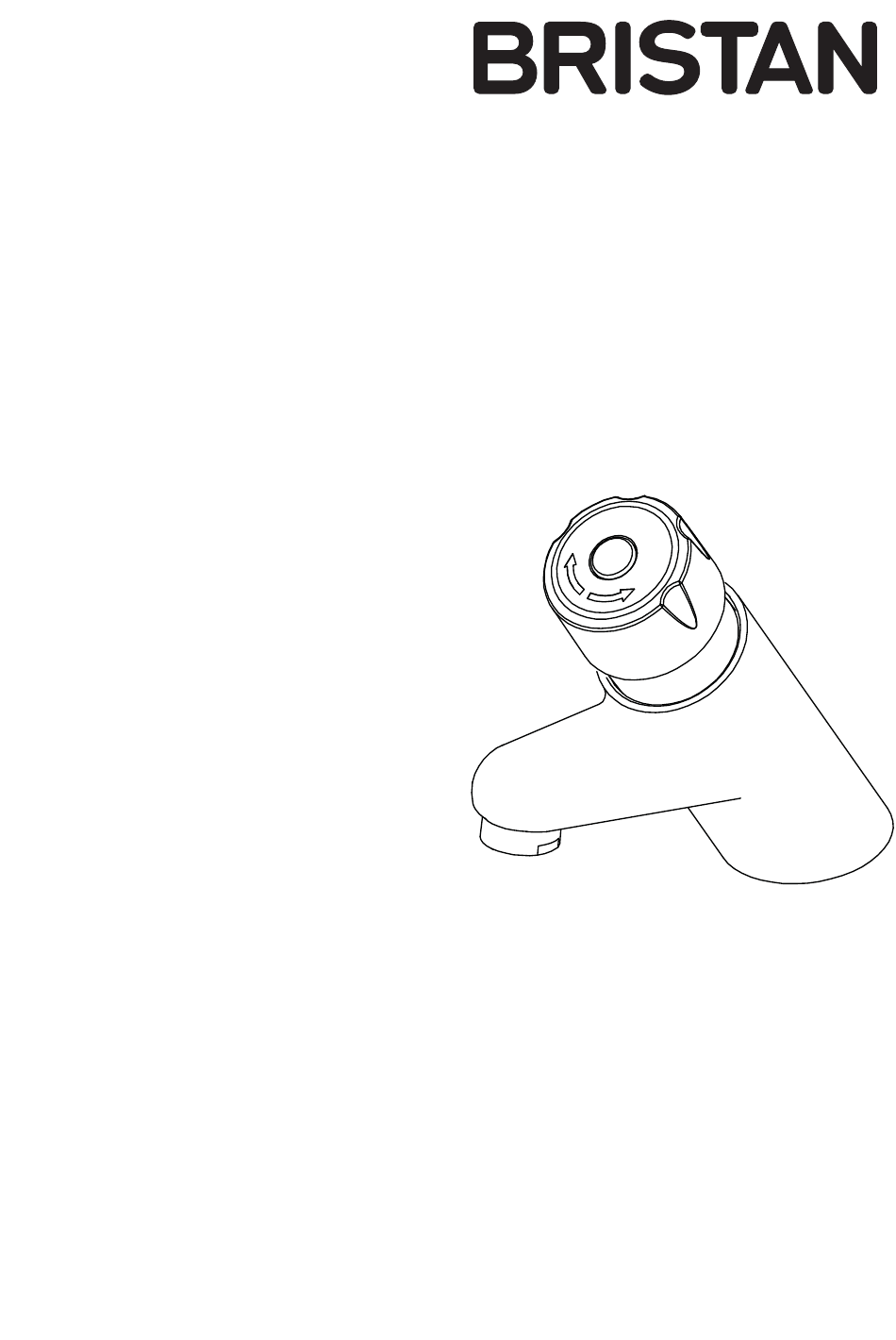

- Page 1 Installation Instructions Temperature Controlled Time Flow Tap Models covered: Z TC 1/2 C Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
-
Page 2: Table Of Contents
Contents Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have designed this product with your enjoyment in mind. To ensure that it works to its full potential, it needs to be fi tted correctly. These fi tting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to contact us. -
Page 3: Important Safety Information
Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions. •... -
Page 4: Specifi Cations
Specifi cations Inlet Connections: 15mm Compression fl exible connecting pipes Minimum working pressure: 1.0 bar Maximum working pressure: 5.0 bar Maximum static pressure: 10.0 bar System Requirements: Gravity fed hot & cold (Equal pressures) Gravity fed hot & cold (Differential pressure, maximum ratio 5:1) Unvented systems Instantaneous water heater (Combination boiler) Timed Flow: 15 Seconds ±... -
Page 5: Dimensions
Dimensions Dimensions are in millimetres. Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. -
Page 6: Pack Contents
Pack Contents Tap Body 3 l/p/m Flow Regulator (Fitted) Flexible Connecting Pipes Non Return Valves (Pre-fi tted) Filter Washers Isolation Valves Base Washer 'C' Shaped Plate Fixing Nut Fixing Rod Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. -
Page 7: Prior To Installation
Prior to Installation Flexible Connecting Pipes See below for recommended ways to fi t the Care must be taken when connecting the fl exible connecting pipes. fl exible connection pipes to the household pipework to ensure they do not bend sharply and kink or twist. -
Page 8: Installation
Installation Before installation Flush through the pipework to ensure removal of debris. Turn off both water supplies or close any isolating valves. Body 1. Fit the tap to sink Thread the fi xing rod into the bottom of the tap (if not aleady fi tted). Fit the tap to the Washer basin / sink / work surface ensuring the Fixing... -
Page 9: Operation
Operation To operate the flow of water push down fully and Push and release release the control knob.The water will flow for approximately 15 seconds ± 5 seconds. Important: If the user pushes and holds down the control knob the water will not flow. Rotate the control knob clockwise for a cooler temperature. -
Page 10: Maintenance
Check the non return valve opens freely, replace with new NRV's from Bristan if faulty. Replace the non return valves in the bottom of the fl exible connecting pipes pushing them in fully. Reconnect the fl exible connecting pipes to the isolation valves ensuring the fi... - Page 11 Maintenance Cleaning the Cartridge Locking Before carrying out any maintenance, turn off both water supplies and close any Cartridge Retaining isolating valves. Shroud Prise out the handle cover cap, loosen the grub screw and remove the handle. Cartridge Assembly Remove the temperature limiter and Cartridge spring.
-
Page 12: Troubleshooting
Troubleshooting Symptom Cause Remedy Tap will not Isolation valves closed. Open Isolation valves. operate when User is holding in control knob. Release control knob. control knob is The water will not fl ow if the fully pushed in. control knob is held in by the user. -
Page 13: Troubleshooting
Troubleshooting Symptom Cause Remedy Flow regulator blocked. Remove fl ow regulator and clean. Turn off the mains water supply or close any isolation valves before removing the riser / fl ow regulator. Insuffi cient water pressure. Check water supply pressure. Refer to 'Specifi... -
Page 14: Guarantee
Guarantee At Bristan, we want to make things as • Repair under this guarantee does not easy as possible for our customers. That’s extend the original expiry date. The why we design products that are easy to guarantee on any replacement parts or fit and use, and that are quality tested to product ends at the original expiry date. - Page 15 ‘phone or with a spare part, then we’ll guarantee period, contact Bristan Care send out one of our Bristan Care Customer Service on 0844 701 6273 with engineers to take a look. Bristan Care...
- Page 16 Part Number: FI Z TC 1/2 C Issue: D3 Useful contact details: Customer Service: 0844 7016273 Bristan Group Ltd. Customer Service Email: Birch Coppice Business Park Customercare@bristan.com Dordon Tamworth Customer Service Fax: Staffordshire 0844 7016275 B78 1SG Reception: Web: www.bristan.com 0844 7016274 Email: enquire@bristan.com...
