Dynamic Water Pressure
Max: 5.0 bar
Min: 0.2 bar
2.0
3.0
1.0
4.0
0
5.0
Pressure
BAR
Maximum Static Pressure: 10.0 bar
Pack Contents
Riser Brackets
Single
x2
Function
Handset
x1
x1
1.5m Hose
Pencil
Spirit Level
Specification
Inlet Water Temperature
Max Hot: 85°C
Riser Centres
560mm
Screw Pack
x1
x1
Slider
Riser Rail
x1
Tools Required for Installation
Cross Head
Screwdriver
Installation Instructions
Inlet Connection
Move the ball joint
to adjust the
handset position
on the riser rail.
8mm
Drill
Safety
Goggles
& User Guide
Please leave these instructions
with the end user
Product Code: TRD KIT01 Range (D4)
Outlet Connection
1/2" BSP
Single Function Handset
Operation
Unscrew the handle
to loosen the slider
position on the rail.
Electronic
Detector
and adjust its
2.5mm
Hexagonal
Keys
Advertisement
Related Manuals for Bristan TRD KIT01
Summary of Contents for Bristan TRD KIT01

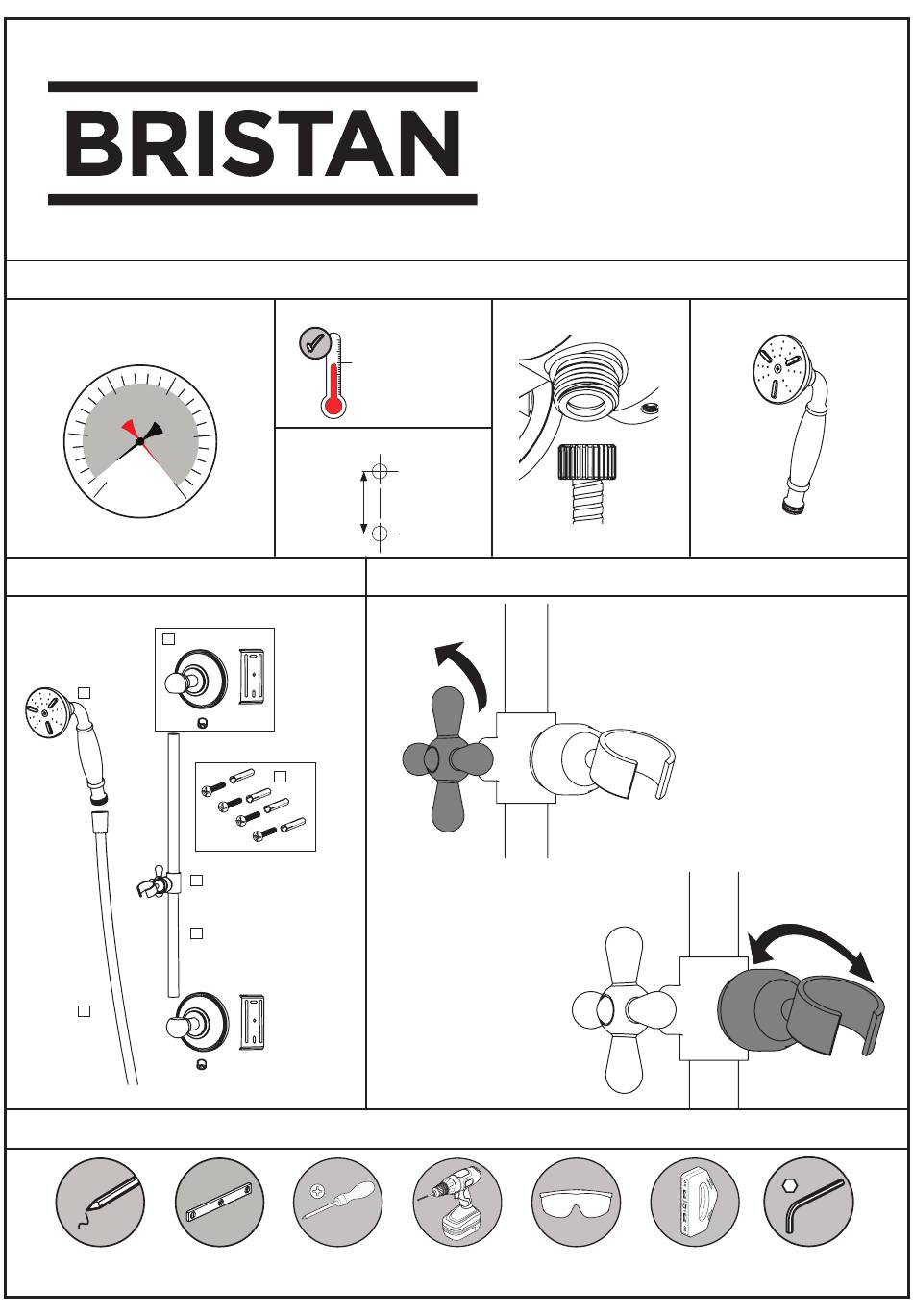

- Page 1 Installation Instructions & User Guide Please leave these instructions with the end user Product Code: TRD KIT01 Range (D4) Specification Dynamic Water Pressure Inlet Water Temperature Inlet Connection Outlet Connection Max: 5.0 bar Min: 0.2 bar Max Hot: 85°C Riser Centres...
-
