2.1 Configuration; 2.2 Configuring The Raven Phoenix 300 - Intuicom RTK Bridge-X Installation Manual

• Using the Intuicom RTK Bridge-X to Phoenix 300 data/power cable and the null
modem adapter, connect the RTK Bridge-X serial port to the B Port on the Phoenix
300 wiring harness.
• Connect the SAE power connector to the supplied DC power adapter which is
connected to Battery power.

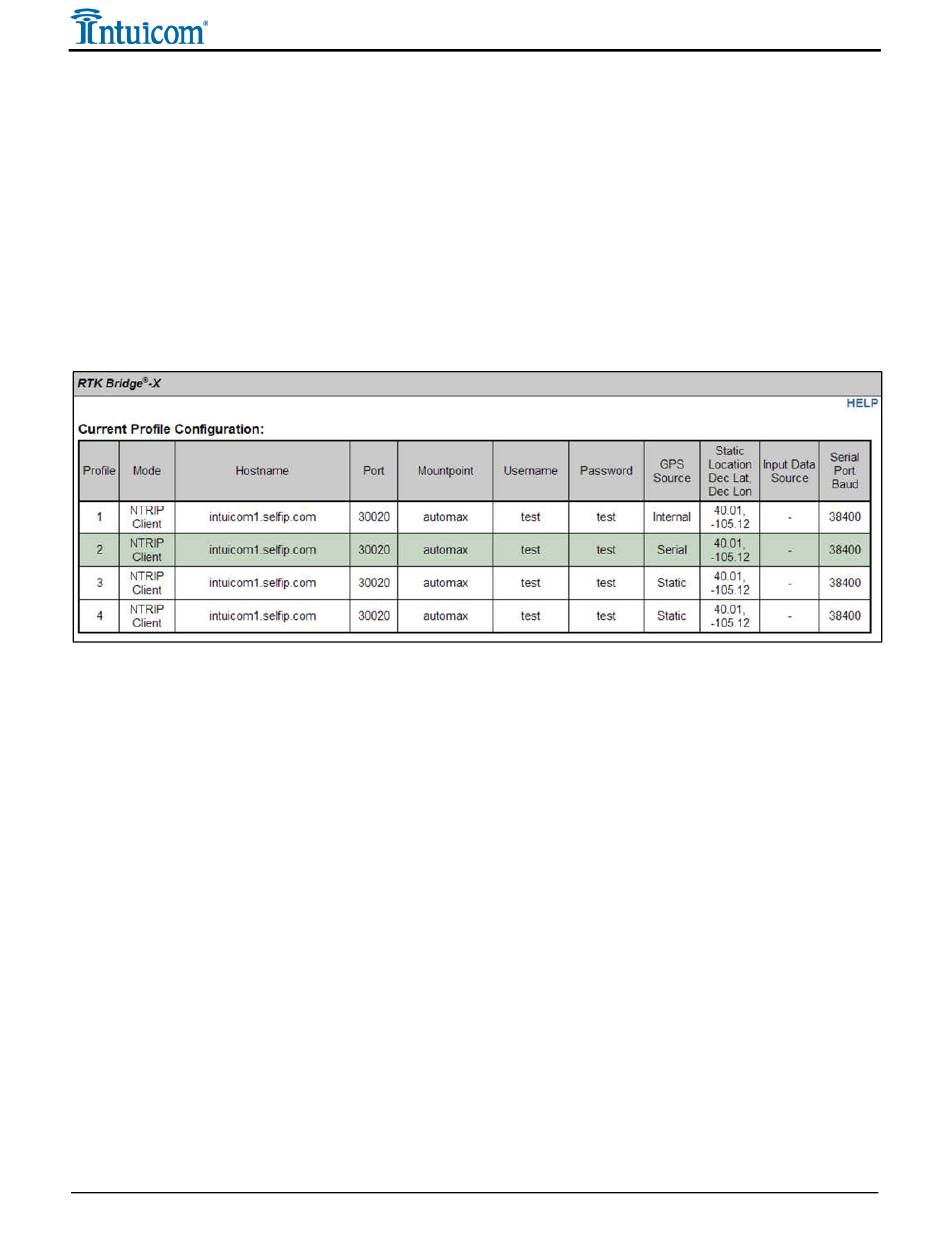

• The RTK Bridge-X should be configured to receive the GPS position from the data
port. In the Profiles page, in the profile that is to be used, under GPS Source, select
Serial. The RTK Bridge-X is now ready to receive the GPS position from the
Phoenix 300.
2.2 Configuring the Raven Phoenix 300
A map of the Raven Phoenix 300 menu structure follows these instructions for reference.
• After unlocking RTK in the Raven Phoenix 300, navigate to the Correction Mode
screen in the Correction Config Menu.
o Press ← and use ↑ or ↓ keys to set the correction mode to RTK. When the
correction mode is set to RTK, the RTK display and configuration menus will
be available in the Phoenix 300 menu.
• To access the RTK configuration screens from the receiver Home display screen,
press the ← or → buttons until the RTK Config screen is displayed
• Press ↓ to view the RTK Format screen
o The RTK format screen displays the current format for receiving RTK
corrections from the assigned base station.
• Press ← and use the ↓ and ↑ keys to select the correction type that corresponds to the
correction you are receiving from the network
• Press ↓ to view the RTK Network screen
• The RTK Network screen displays the current RTK Network used to transmit RTK
correction messages. Press the ← and use the ↑ or ↓ keys to select a VRS or iMax
(depending on which setting matches the network technology)
