FabiaTech FB2505 Series Quick Setting Manual

Version 1.1
1. Brief

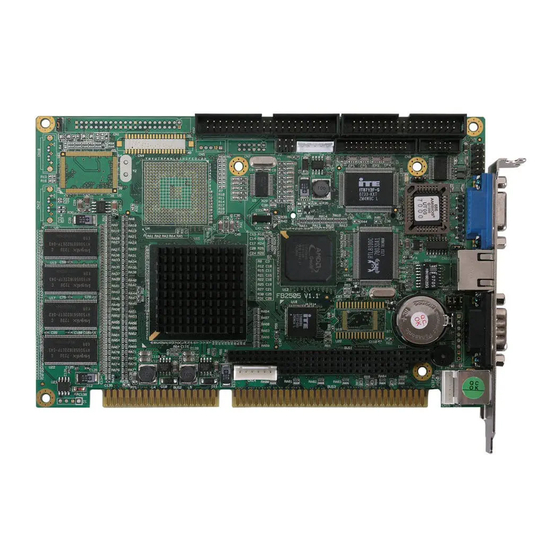

The FB2505 is a Low power AMD LX, all in one, half-size CPU card. This user's quick setting provides
the jumper and switch settings, connector location, and their pin assignment.

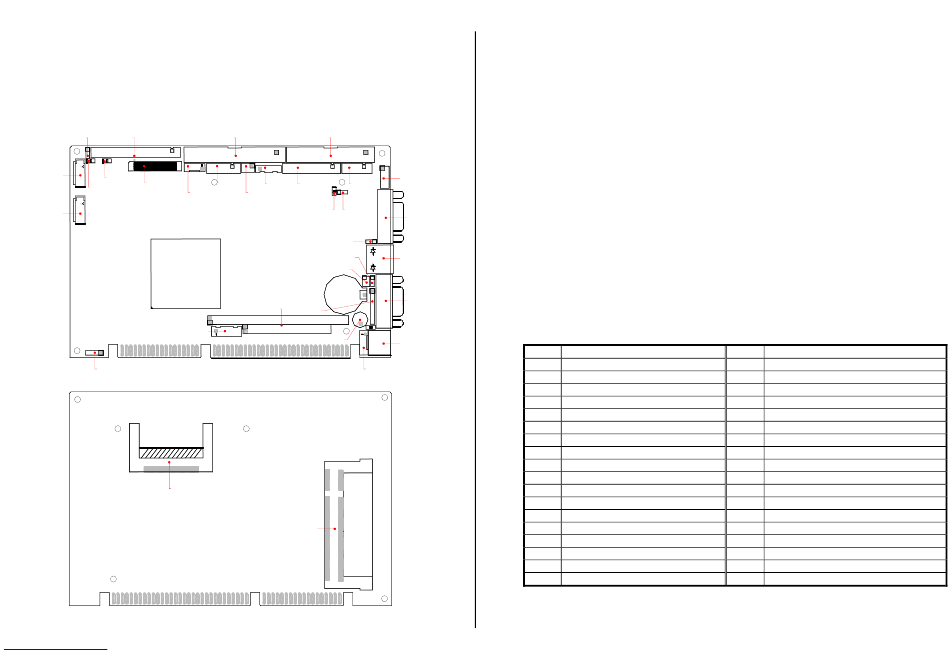

2. Board Placement
JP1 CN1
CN10
LED2
CN4
LED1
CN12
CPU
CN14
J1
CN17
www.fabiatech.com
FB2505 Series User's Quick Setting
CN2 CN3
CN7
CN6 CN8 CN9
CN5 J2
LED3 JP2
JP3
JP5
JP4
BT1
BUS1
J3
BZ1
CN15
DIMM1
3. Packing List
1 FB2505 all-in-one CPU board.
1 40-pin hard disk drive interface cable and 1 34-pin floppy drive interface cable.
1 serial port and parallel port interface cable with bracket.
1 PS/2 keyboard and mouse port adapter cable. (Optional)
1 USB cable, 1 Audio cable, and 1 FB4641x Audio adapter board. (All are optional items)
1 compact disc includes software utilities and manuals.
4. Features
* On-board AMD LX-800 CPU (running at 500MHz) with heat sink only. (Fanless operation)
CN11
* Compact size slot card with ISA and PC/104 bus.
* AMD Geode CS5536 chipset with UMA architecture.
* Support 16-bit ISA bus, but without DMA transfer function.
* On-board 128MB DDR and 1 SoDIMM socket (FB2505A only) for up to 1152MB maximum.
DB1
* 2 USB ports, 10/100M-TX Ethernet with RJ-45 connector.
* Supports CRT and LCD (FB2505A only) with up to 254MB shared memory.
* 1 floppy, 1 PCI IDE, 1 parallel, 1 RS-232 and 1 RS-232/422/485 ports.
CN13 * CompactFlash socket for 3.3V CompactFlash and MicroDrives.
* PS/2 keyboard and mouse interface, 4-bit TTL I/O, On-board buzzer, and LED indicators.
* Software programmable watchdog timer and Flash BIOS with easy upgrade utility.
* Provides 1 AC97 connector for Audio functions. (FB2505A only)
DB2
* Compact size, 185 mm x 122 mm.
5. Connectors and Jumpers List
CN16
Name
CN1 44-pin IDE Connector (Reserved)
CN2 40-pin IDE Connector (40-pin IDC)
CN3 Floppy Connector (34-pin IDC)
CN4 LCD Connector (40-pin DF13)
CN5 LCD Power Connector (5-pin JST)
CN6 TTL I/O Connector (5-pin JST)
CN7 AC97 Connector (12-pin IDC)
CN8 Parallel Port Connector (26-pin IDC)
CN9 COM2 Connector (10-pin IDC)
CN10 SATA#1 Connector (Reserved)
CN11 USB Connector (J2*5)
CN12 SATA#0 Connector (Reserved)
CN13 LAN Connector (RJ45 w/LEDs)
CN14 Aux. Power Connector (6-pin JST)
CN15 KB/MS Connector (6-pin JST)
CN16 KB/MS Connector (6-pin mini-Din)
CN17 CompactFlash Socket (50-pin)
BZ1 On-board Buzzer
Function Name
J1 Reserved
J2 Reset and LED Indicator Header (J2*3)
J3 Reserved
DB1 CRT Connector (15-pin D-sub)
DB2 COM1 Connector (9-pin D-sub)
DIMM1 SoDIMM Socket (200-pin)
BUS1 PC/104 Connector (64 and 40 pin)
BUS2 ISA Golden Finger (16-bit)
BUS3 ISA Golden Finger (8-bit)
JP1 CF Master/Slave Select Jumper (J1*3)
JP2 485 Terminator Resister Select (J1*3)
JP3 SRAM Mapping Select (J1*3)
JP4 COM2 Mode Select (J2*3)
JP5 CMOS RAM Select (J1*3)
LED1 SATA Access LED (Reserved)
LED2 IDE Access LED (Red, Reserved)
LED3 On-Board Power/WD LED (Green)
D4 Reserved LED Indicator
©2007-2008 FabiaTech Corporation
Page 1/3
Function
