FabiaTech FB2510 Series User's Quick Setting

Version 1.5

1. Brief

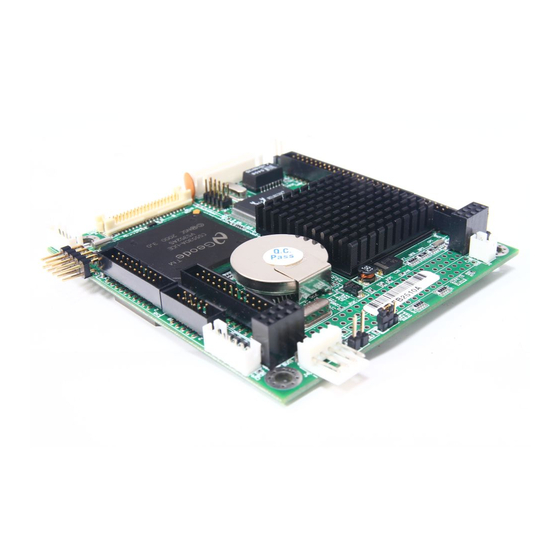

The FB2510 is an all-in-one, PC/104, NS Geode low power CPU module. This user's quick setting
provides the jumper settings, connector location, and their pin assignment.

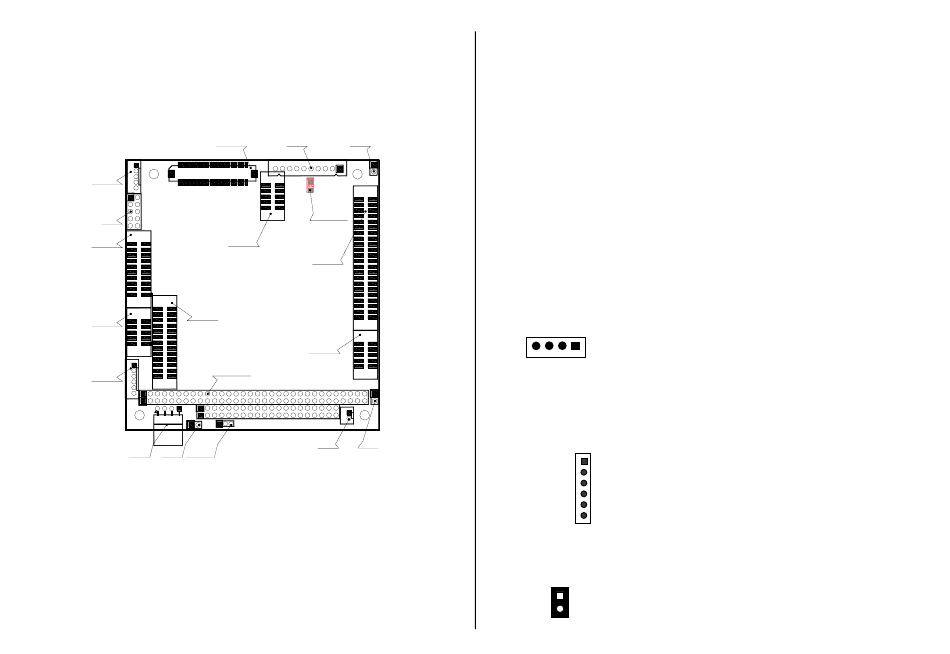

2. Board Placement

CN1
J3
CN5
CN7
CN6
CN9
J4 J5 JP1

3. Packing List

1 FB2510x all-in-one PC/104 CPU board.
1 VGA (CRT interface) adapter cable.
1 44-pin hard disk drive interface cable.
1 20-pin to 34-pin floppy drive interface cable.
2 serial port adapter cable and 1 parallel port interface cable.
1 PS/2 keyboard and mouse port adapter cable.
1 USB adapter cable. (Optional)
1 10-pin LAN adapter cable with FB4605A transfer board.
1 compact disc includes software utility.
1 hard copies of this quick setup manual.
FB2510 Series User's Quick Setting
CN2 J1 J2
LED1
CN3
CN4
CN8
BUS1
J6 J7

4. Features

* On-board 200~300 MHz NS Geode GX1 CPU.
* NS CS5530A chipset with UMA architecture.
* 1 So-DIMM socket for up to 128MB PC-100 SDRAM.
* One 100/10 base-T Ethernet port.
* Provides CRT and LCD with 1.5MB to 4MB shared memory.
* 1 parallel port, 2 RS-232, 1 floppy port and 1 PCI IDE interface.
* PS/2 compatible keyboard and mouse interface.
* Provides header for external speaker and hard disk access LED.
* Flash BIOS with easy upgrade utility.
* 2 USB ports and software programmable watchdog timer.
* Power requires +5V only, 1.2A maximum.
* PC/104 form factor, 90.2 mm x 95.9 mm (3.55" x 3.775")

5. Connectors, Headers and Their Relative Jumpers

A. Reset Header (J5)

J5 is a 2-pin header for connecting to system reset bottom. Close these 2 pins to hardware reset
FB2510 and restart system booting.

B. Power Connector (J4: 4-pin 2.5mm JST)

J4
Pin 1: +5V
Pin 2: Ground
Pin 3: Ground
Pin 4: +12V
4 1

C. Keyboard and Mouse Connector (CN9)

CN9 provides PS/2 keyboard and mouse interface, use the included adapter cable to connect
between CN9 and standard PS/2 device.
1 Pin 1: Mouse Data
Pin 2: Keyboard Data
Pin 3: Ground
CN9
Pin 4: +5V
Pin 5: Mouse Clock
6
Pin 6: Keyboard Clock
D. IDE Hard Disk Connector and Access LED Header
Use 44-pin hard disk cable you can attach up to two 2.5" hard disk drives.
1 Pin 1: LED+
J7
Pin 2: LED-
2
Note: FB2510 needs +5V only,
+12V is not necessary.
(CN4 and J7)
©2001-2003 FabiaTech Corp.
Page 1/3
