Version: 2.1
1. Brief
The FB2300 series is All-In-One, half-size 386SX CPU card. This user's quick setting
provides the jumper setting, connector location, and their pin assignment.

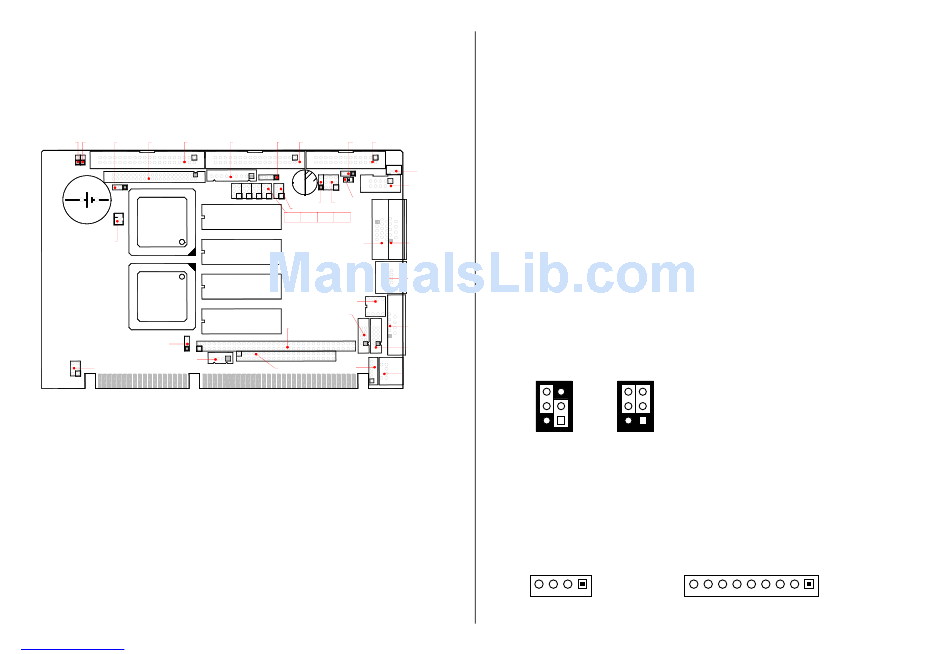

2. Board Placement
J2
J3
JP1
CN4
CN1
BAT1
J1
JP6
J8
JP7
3. Packing List
1 FB2300 or FB2300x all-in-one CPU card.
1 40-pin hard disk drive interface cable.
1 34-pin floppy drive interface cable.
1 parallel port and serial port interface cable with bracket.
1 PS/2 mouse adapter cable with bracket. (Option)
1 Compact Disc including necessary utilities and drivers.
1 hard copies of this quick setup manual.
www.fabiatech.com
FB2300 Series User's Quick Setting
J5
J6
CN2
J7
CN3
BZ1
LED1
JP2
JP3
JP4
M1
LM1LM2LM3LM4
DB1
M2
M3
SW1
CN12
M4
CN10
J9
CN9
CN11
4. Features
*
Up to 33 MHz 386SX single board computer.
*
ISA and PC/104 expansion bus.
*
2 MB EDO RAM on-board & 6 MB space for expansion.
*
10Base-T NE2000 compatible network. (FB2300 only)
*
Provides CRT and LCD interface with 512KB VRAM. (1MB VRAM is optional)
*
Parallel port, floppy and IDE Interface.
*
1 RS-232C and 1 RS-232C/RS485.
*
PS/2 compatible keyboard and mouse interface.
*
Provides 4 sockets for up to 4MB/2MB/2MB EPROM/SRAM/Flash disk
J4
3 sockets for up to 3MB/1.5MB/1.5MB SSD and 1 socket for DiskOnChip.
CN5
*
4 TTL inputs and 4 TTL outputs.
*
E2KEY function for safe CMOS data keeping. (Option)
*
On-board buzzer and LED indicator.
*
On-board Lithium battery for SRAM disk.
*
Flash BIOS with easy upgrade utility.
DB2
*
Software programmable watchdog timer.
*
Low power consumption, +5V only, 2.0A maximum.
*
EMI Considered on every output signals.
CN7
*
Compact size, 185 mm x 122 mm.
5. Connectors and Their Relative Jumpers
DB3
CN8
A. CPU Base Clock Select Jumper (JP7)
JP7
6
5
4
3
2
1
25.0MHz
B. Reset Header (J3)
J3 is a 2-pin header for connecting to system reset bottom. Close these 2 pins to
reset FB2300 and restart system booting.
C. Auxiliary Power Connectors
J8
4
1
JP7
6
5
4
3
2
1
33.0MHz
Factory Preset
(J8
& J5, J5 is optional)
Pin 1: +5V
J5
Pin 2: Ground
Pin 3: Ground
Pin 4: +12V
9
©2000-2005 FabiaTech Corporation
Page 1/4
- Or -
Pin 1,2,8,9: +5V
Pin 3,4,6,7: Ground
Pin 5:
+12V
1
