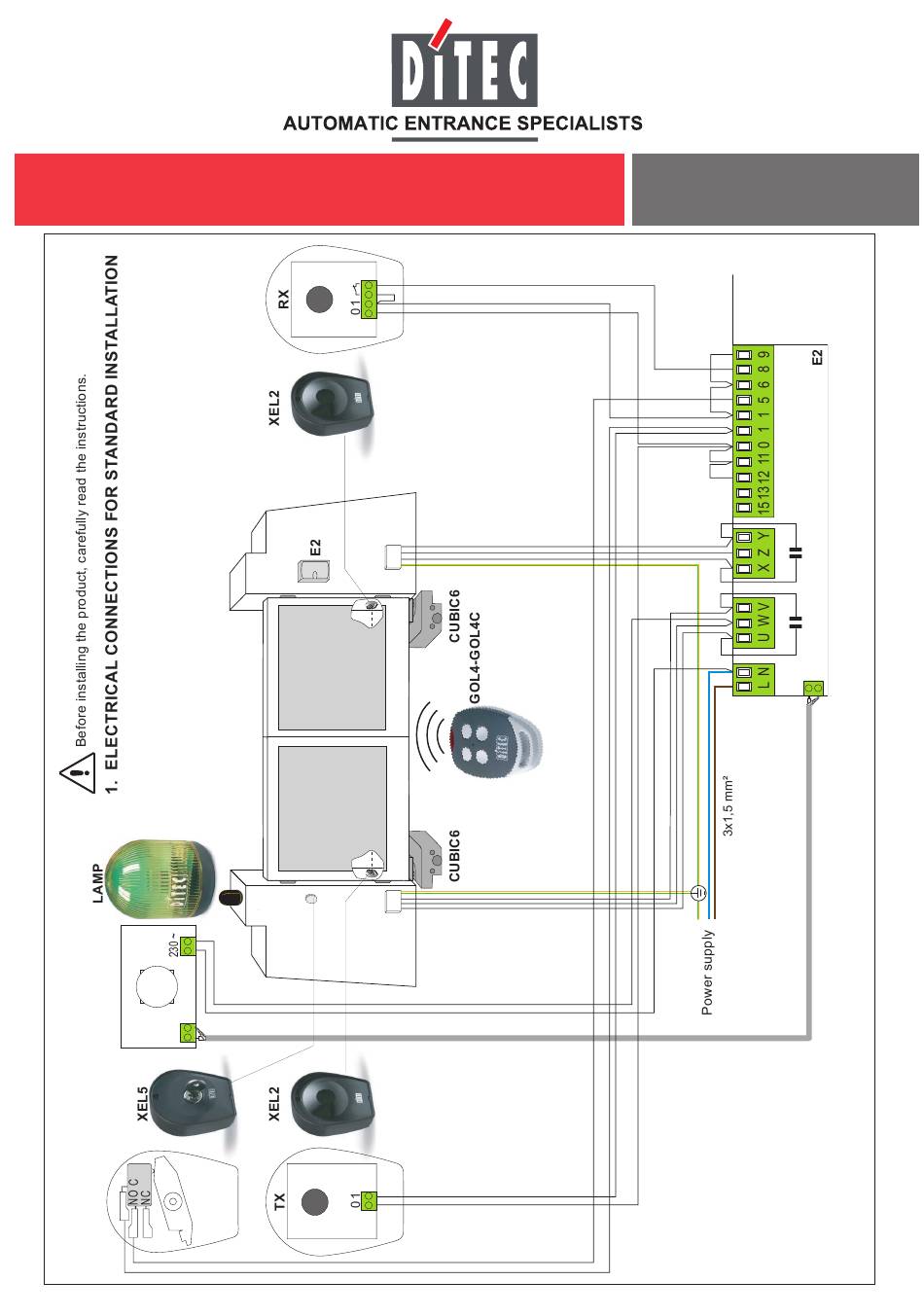

CUBIC6 - E2 QUICK REFERENCE
4x0,5 mm²
4x1,5 mm² (max 10 m)
4x1,5 mm² (max 10 m)
2x1,5 mm²
RG58 (max 10 m)
4x0,5 mm²
4x0,5 mm²
IP2011
rev. 2008-10-13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CUBIC6 E2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DITEC CUBIC6 E2

Summary of Contents for DITEC CUBIC6 E2

  • Page 1 IP2011 CUBIC6 - E2 QUICK REFERENCE rev. 2008-10-13 4x0,5 mm² 4x1,5 mm² (max 10 m) 4x1,5 mm² (max 10 m) 2x1,5 mm² RG58 (max 10 m) 4x0,5 mm² 4x0,5 mm²...
  • Page 2 2. LIMIT SWITCHES CONNECTION (CUBIC6FM OPTIONAL) U/X W/Z V/Y 11/12 Motor 230V~ Closing limit switch adjustment 3. CUBIC6 MOTORS CONNECTION MOTOR 2 MOTOR 1 12 11 12 11 MOTOR 2 MOTOR 1 230V~ 230V~ MOTOR 1 MOTOR 2 12 11 12 11 MOTOR 1 MOTOR 2...
  • Page 3 4.1 USAGE WITHOUT LIMIT SWITCHES CLOSING MOTOR 2 MOTOR 1 MECHANICAL STOP OPENING CYCLE OPENING OPENING MECHANICAL STOP MECHANICAL STOP CLOSING MOTOR 2 MOTOR 1 MECHANICAL STOP CLOSING CYCLE OPENING OPENING MECHANICAL STOP MECHANICAL STOP 4.2. USAGE WITH CLOSING STOP LIMIT SWITCHES (OPTIONAL) MOTOR 2 MOTOR 1 OPENING CYCLE...
  • Page 4 For different setting and further information consult the CUBIC automation instruction manual, the E2 control panel instruction manual and BIXLR22 radio instruction manual. DITEC S.p.A. Via Mons. Banfi, 3 - 21042 Caronno Pertusella (VA) - ITALY Tel. +39 02 963911 - Fax +39 02 9650314 www.ditec.it - ditec@ditecva.com CUBIC6 - E2 QUICK REFERENCE - IP2011...
