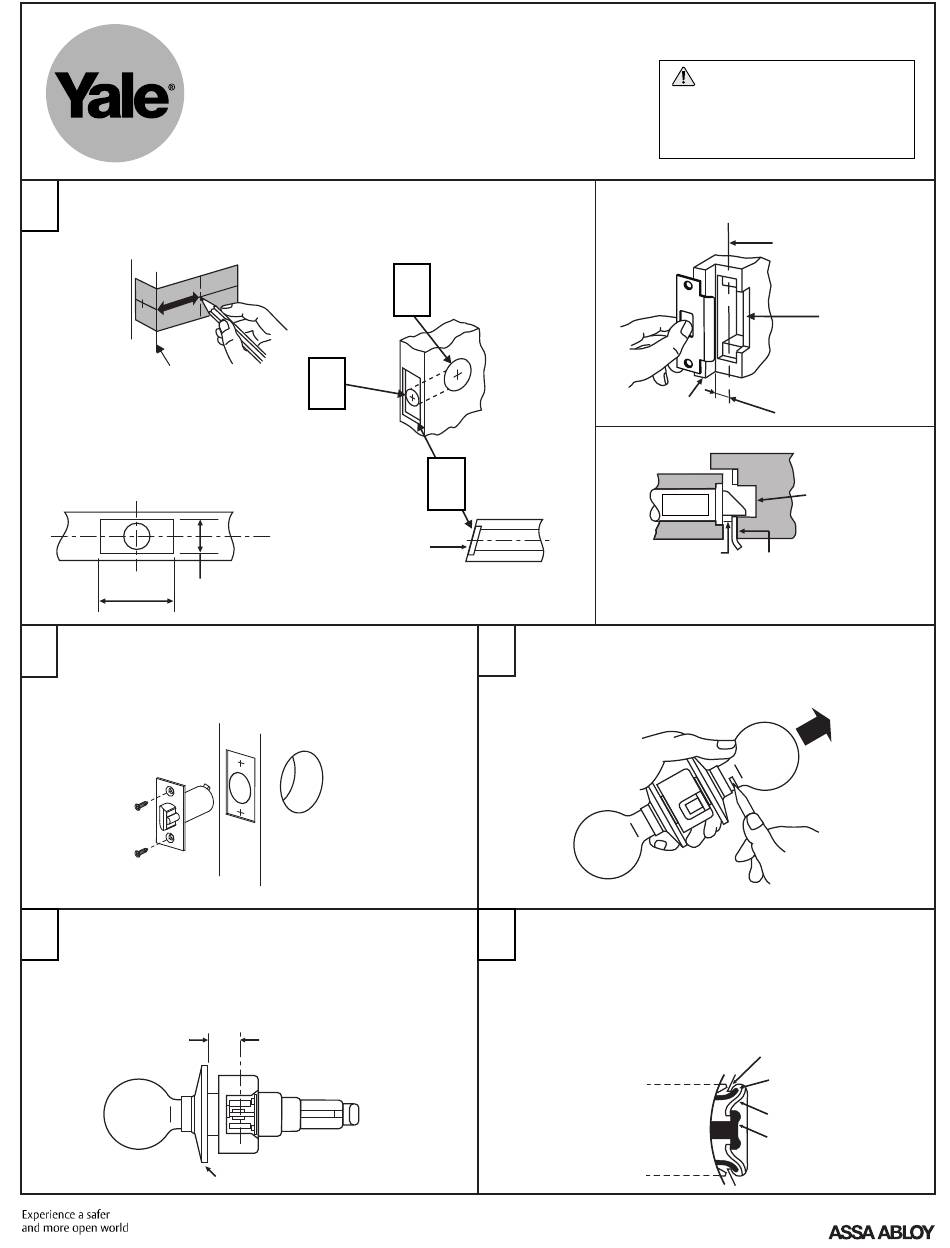

Assa Abloy YALE 4600CK Series Installation Instructions

1

TO PREP DOOR FOR LOCK

Determine correct backset and door thickness. Place template on door
and mark for holes.
High edge of
beveled door.
1-1/8
2-1/4
(29mm)
(57mm)
5

INSTALL LATCH UNIT

After preparing door and jamb according to
template provided, mount latch in door.
Secure with two (2) screws.
7

ADJUST FOR DOOR THICKNESS

Rotate outside rose in or out depending on door
thickness. Lock will fit any door from 1-3/8" to 1-3/4".
Locks preset at factory for 1-3/4" thick doors.
4600CK Series Grade 2
Cylindrical Knob Locks
Installation Instructions
3
Bore 1" (26mm) hole
through into first hole
(this hole must be
centered in door edge
and must be parallel
to sides).
Swivel front latch standard for flat and beveled doors.
Distance from underside of
rose to center of retractor.
11/16" for 1-3/8" Doors
7/8" for 1-3/4" Doors
Outside Rose
2
Bore 2-1/8" (54mm)
hole through door.
4
Cut out to fit latch
front, as shown.
5/32
(4mm)
6

REMOVE INSIDE KNOB

If received with knob engaged, depress knob
catch with release tool and pull knob off spindle.
8

INSTALL LOCK UNIT*

Lock unit housing must engage latch unit prongs and
retractor must engage latch tailpiece.
NOTES
- If guard bolt function is installed, do not attempt to
mount lock unit when door is closed. Guard bolt
tailpiece will interfere.
- Depress latch bolt slightly to
allow retractor to
engage latch tailpiece.
*On cylinder functions make sure
keyway is vertical and down.
See page 2 to reverse cylinder.
WARNING
This product can expose you to lead which is
known to the state of California to cause
cancer and birth defects or other
reproductive harm. For more information go
to www.P65warnings.ca.gov.

TO MORTISE FRAME FOR STRIKE

Centerline for
strike screws
and front screws.
Stop
Lock
Guardbolt
Strike
stops on strike
when door is
closed.
Lock Unit Housing Engages
Latch Unit Prong
Retractor Engages
Latch Tailpiece
Cut out jamb
for strike.
Locate strike screws
at 1/2 door thickness
measured from stop.
When strike box
is not used,
recess in jamb
must be deep
enough to allow
latchbolt to
extend its full
free length.
263007770 (08-19)
