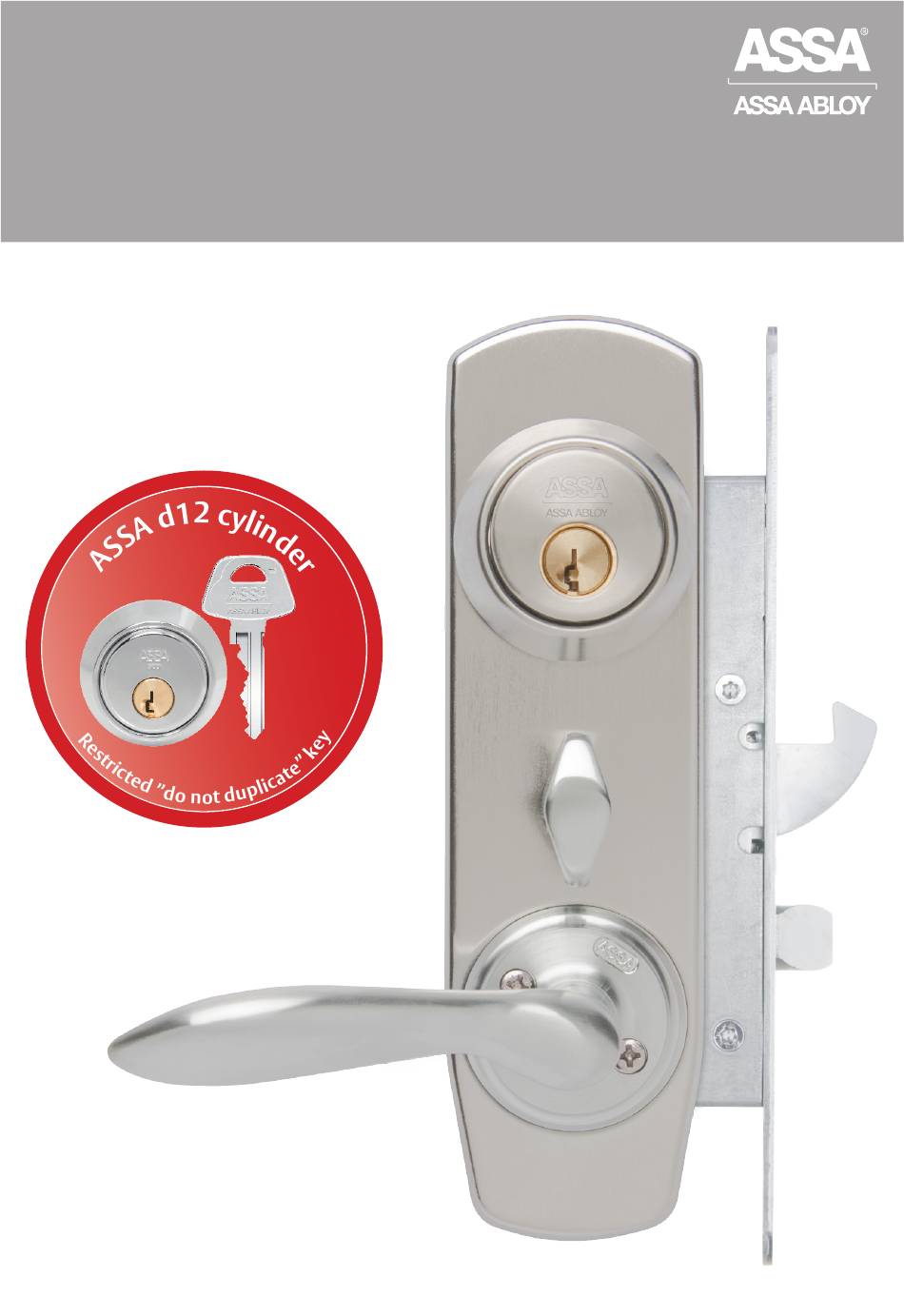

- Page 1 Installation instructions ASSA Entré d12-K1 Accessory kit ASSA Entrance d12-B1, ASSA ABLOY, the global d12-B2, d12-B3, d12-S1 leader in door opening solutions.
- Page 2 Check that your package All parts contains all parts using the color codes. Entrance d12-K1 Entrance d12-B1, B2, B3 Entrance d12-S1 Lock case Pillar asym striking plate Screw to lock case and security striking plate Screw for inclined installation Cylinder Cylinder extender High strength screw of security striking plate...
-
Page 3: Installation
Installation For accessory kit ASSA Entrance d12-S1, skip diagrams 2, 9, and 10. If you do not have openings in the door for the lock case or striking plate, use the extra installation instructions in the package. To turn the lock from right to left and vice versa, loosen the three screws (A) and pull out the cases (B) and turn. - Page 4 Check that arrows in the lock case point downwards on both sides. Point downwards Remove the cylinder sleeve on the inside cylinder by pushing in the locking pin. Note that the cylinder sleeve on the outside cylinder must be fitted during assembly.
- Page 5 Block the screws with cylinder plugs. Turn the key first to “ten o’clock” and push a plug into the opening between the screws on the right side of the cylinder. Then turn the key to the “two o’clock” to mount the plug on the left side.
- Page 6 Slide the cylinder rings on the outside and the inside and secure with the screw on the bottom of the cylinder ring. Slide the o-rings on the handle screws. Install the door handle with the through- handle screws from the inside of the door. Install the barrel nuts from the outside.
-
Page 7: Tips And Advice
Restricted “do not duplicate” key A restricted “do not duplicate” key means that as owner and holder of the blue code token, you are the only one who can have extra keys made. The purpose of restricted keys is to give you control over your keys. The front door lock must be safe, secure and convenient, and with the restric- ted key, we have made the lock even better. - Page 8 SE-631 05 Eskilstuna Sweden phone +46 (0)16 17 70 00 fax +46 (0)16 17 70 49 Customer support: ASSA ABLOY, the global phone intl. +46 16 17 71 00 leader in door opening phone nat. 0771 640 640 solutions, dedicated...
