Product Declassification and Security

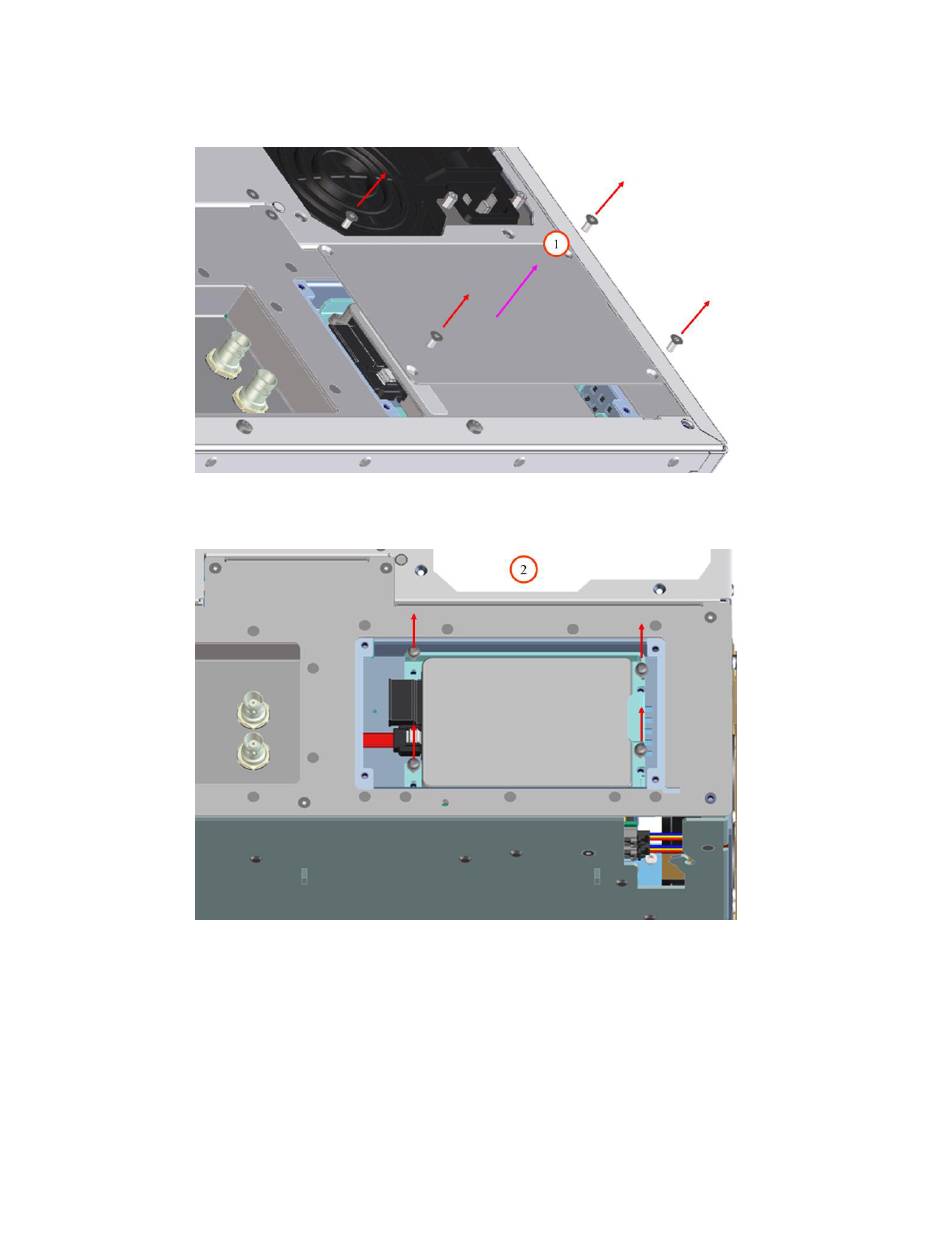

Storage Removal Procedure B
1. Loosen the 4 screws and remove the cover. (Keep the screws for re-assembly)
2. Loosen the 4 screws that hold bracket of the HDD/SSD. (Keep the screws for re-
assembly)
3. Disconnect the cable
4. Push the latch and disconnect the red cable
5. Remove the HDD/SSD from the instrument
Product Name: Network Analyzer
Model Number(s): E5061B/E5063A
Page 12 of 16
