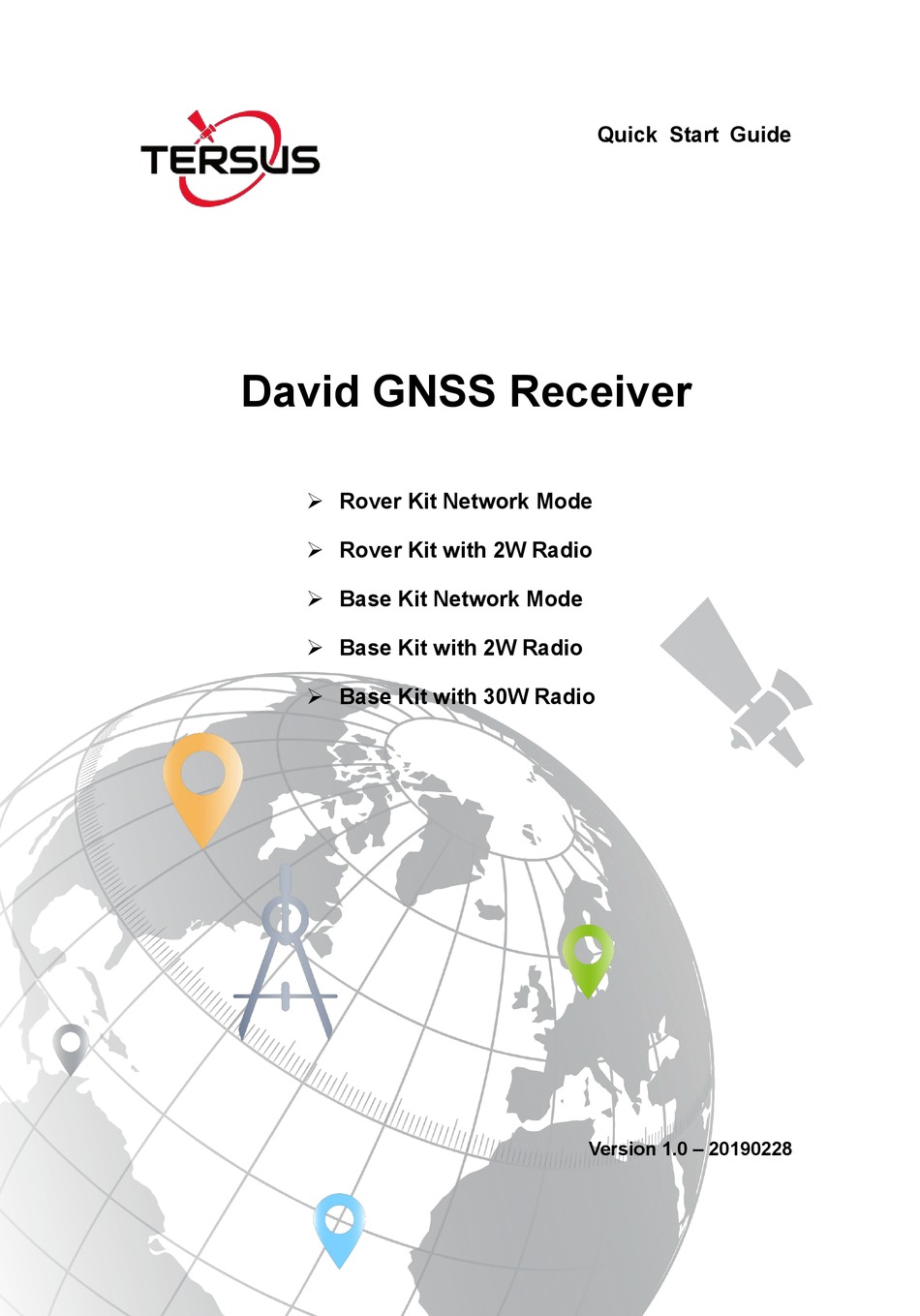

Quick Start Guide

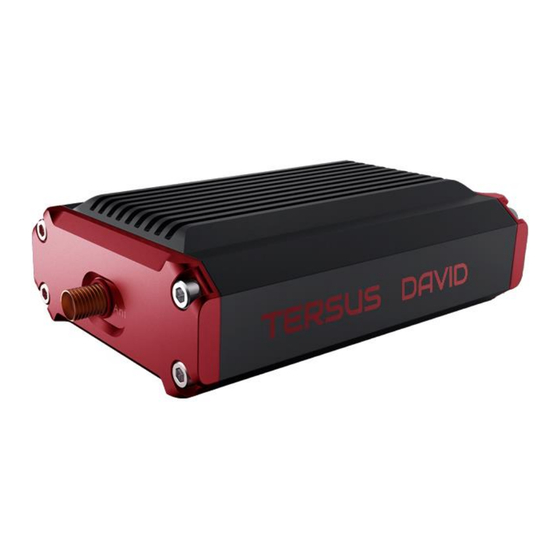

David GNSS Receiver
 Rover Kit Network Mode
 Rover Kit with 2W Radio
 Base Kit Network Mode
 Base Kit with 2W Radio
 Base Kit with 30W Radio
Version 1.0 – 20190228

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the David and is the answer not in the manual?

Questions and answers

Related Manuals for TERSUS David

Summary of Contents for TERSUS David

  • Page 1 Quick Start Guide David GNSS Receiver  Rover Kit Network Mode  Rover Kit with 2W Radio  Base Kit Network Mode  Base Kit with 2W Radio  Base Kit with 30W Radio Version 1.0 – 20190228...

  • Page 2: System Structure

    1.System Structure David GNSS Receiver can work as a Rover or a Base. According to different data links (radio or 2G/3G/4G network accessed via controller) and different types of radio, five kits for David GNSS Receiver are introduced in this Quick Start Guide.

  • Page 3: Rover Kit Network Mode

    David Quick Start Guide v1.0 1.1 Rover Kit Network Mode Figure 1.1 Rover Kit Network Mode Table 1.1 Devices in Figure 1.1 Device Name AX3702 GNSS antenna Ranging pole Android device TC20 (not included in the kit) COMM1-Bluetooth module DC-2pin to USB Power Cable...
  • Page 4 David Quick Start Guide v1.0 1.2 Rover Kit with 2W Radio Figure 1.2 Rover Kit with 2W Radio Table 1.2 Devices in Figure 1.2 NO. Device Name 2W/460MHz radio antenna Bracket for 460M antenna TNC-TNC converter TNC-J to TNC-J cable 1m (radio antenna extension cable)

  • Page 5: Base Kit Network Mode

    David Quick Start Guide v1.0 2W/460MHz radio TNC-J to SMA cable (GNSS antenna cable) AX3702 GNSS antenna 1.3 Base Kit Network Mode Figure 1.3 Base Kit Network Mode Table 1.3 Devices in Figure 1.3 Device Name AX3702 GNSS antenna GNSS antenna connector...

  • Page 6: Base Kit With 2W Radio

    David Quick Start Guide v1.0 Power Bank (not included in the kit) David GNSS receiver TNC-J to SMA cable 1.5m (GNSS antenna cable) 1.4 Base Kit with 2W Radio Figure 1.4 Base Kit with 2W Radio Table 1.4 Devices in Figure 1.4...

  • Page 7: Base Kit With 30W Radio

    David Quick Start Guide v1.0 Metal plate for radio antenna TNC-J to SMA cable 1.5m (GNSS antenna cable) High Gain Radio Antenna Note: Bullet-DC connects to ‘Bullet-DC to Alligator Clips’, then clips to 12V power supply. 1.5 Base Kit with 30W Radio Figure 1.5 Base Kit with 30W Radio...
  • Page 8 David Quick Start Guide v1.0 COMM2-7pin to USB+30W-Radio-5pin cable DC-2pin&30W-Radio-DC-2pin to Bullet-DC DC-2pin&30W-Radio-DC-2pin to Bullet-DC COMM2-7pin to USB+30W-Radio-5pin cable Metal plate for radio antenna High Gain Radio Antenna Note: Bullet-DC connects to ‘Bullet-DC to Alligator Clips’, then clips to 12V power supply.
  • Page 9 David Quick Start Guide v1.0 2.2 Connect David Back to the main interface of Nuwa, click [Device] -> [Connect], select the corresponding Bluetooth address to pair David, select AX3702 for the antenna, click [Connect] to complete the device connection, refer to Figure 2.2 below.
  • Page 10 David Quick Start Guide v1.0 Figure 2.3 Rover Config – Network Figure 2.4 Rover Config – Radio Under the Device interface, click [Base] to enter the Work Mode List, create a new base, select Network for Data Link, and fill up Ntrip information as shown in Figure 2.5 or select Radio for Data...
  • Page 11 David Quick Start Guide v1.0 2.4 Survey Work Back to the main interface of Nuwa, click [Survey] to enter the survey interface. Users can do survey work including point survey, point stakeout, line stakeout and etc. Figure 2.7 Survey Work...

  • Page 12: Exemption Of Liability

    This Quick Start Guide briefly introduces the installation of five kits for David GNSS Receiver and the operation of Nuwa app. More details please refer to User Manual of David and User Manual of Nuwa app which can be downloaded from Tersus official website: https://www.tersus-gnss.com/document/david-receiver...
