- Page 1 Quick Start Guide Oscar Trek GNSS Receiver Visual Positioning Version 1.0...

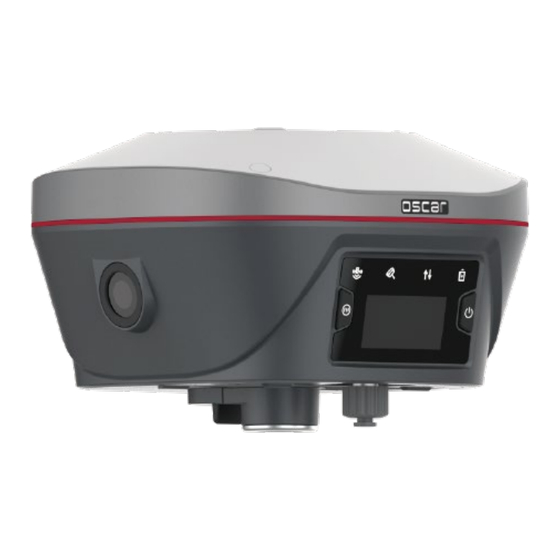

- Page 2 This Quick Start Guide introduces how to start using visual positioning quickly, the detailed introduction and operations of Oscar Trek refer to User Manual for Oscar Trek GNSS Receiver. Figure 0.1 Oscar Trek GNSS Receiver The four steps of visual positioning are outlined below:...
- Page 3 Oscar Trek Quick Start Guide ‒ Prepare 1. Prepare The detailed steps for preparation are as follows: 1).Long press the power button to power on Oscar Trek. 2).Use NFC or Bluetooth to establish communication between the Android controller and Oscar Trek.
- Page 4 Oscar Trek Quick Start Guide ‒ Prepare 4).Click [Visual Positioning], follow the text prompt and choose the Wi-Fi of Oscar-Trek. Figure 1.3 Visual Positioning interface...
- Page 5 Oscar Trek Quick Start Guide ‒ Prepare Figure 1.4 Connect Wi-Fi Note: ◇ Rover configuration has different data link selections, including Internal Radio, Receiver Network, and PDA Network. ◇ The Receiver Network and PDA Network have three protocol options respectively: Ntrip, TCP and Tersus Caster Service (TCS).
- Page 6 Oscar Trek Quick Start Guide ‒ Initialization 2. Initialization Click [Back]-[Visual Positioning], and follow the animated prompts to complete IMU initialization. Figure 2.1 Start initialization The initialization is a two-stage process, shaking and moving. Figure 2.2 Initialization-shaking Figure 2.3 Initialization-moving...
- Page 7 Figure 2.4 Lower 3D value Above all, the initialization is completed. Note: ◇ Ensure that the Oscar Trek is located in an open sky environment, without any obstruction to the GNSS antenna, throughout the initialization process. ◇ Remember not to rotate the receiver violently during the initialization process.
- Page 8 Oscar Trek Quick Start Guide ‒ Measuring 3. Measuring The detailed steps of measuring are as follows: 1).Click [Start Vision] to start capturing images. Make sure the target can be observed by multiple views. Figure 3.1 Start Vision 2).Click [Stop] to end capturing...
- Page 9 Oscar Trek Quick Start Guide ‒ Measuring 3).Click [Photos] to start measuring points from captured images. 4).Choose a image and then select feature points to measure. Figure 3.3 Photos Note: Figure 3.4 Measure ◇ Hold the receiver steady and keep a normal walking speed while capturing images.
- Page 10 Oscar Trek Quick Start Guide ‒ Storage 4.Storage Click [Store], save the points and modify point name. Figure 4.1 Store and modify point name Figure 4.2 Stored Click [Point], access the point store and check the detail. Figure 4.3 Point...
- Page 11 Oscar Trek Quick Start Guide ‒ Storage Figure 4.4 Survey Point Figure 4.5 Detail Above all, the storage is completed.
-
Page 12: Exemption Of Liability
Right to the Point Get More This Quick Start Guide briefly introduces the visual positioning for Oscar Trek GNSS Receiver. More details please refer to User Manual of Oscar Trek GNSS Receiver which can be downloaded from Tersus official website: https://www.tersus-gnss.com/product/oscar_trek_gnss_receiver...
