Quick Start Guide

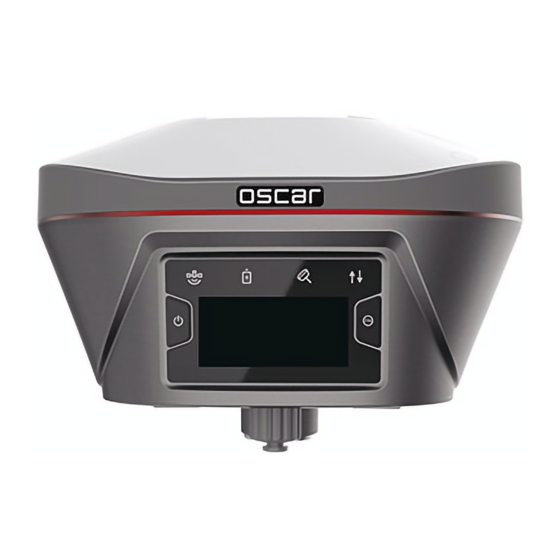

Oscar GNSS Receiver
 Oscar as a Base
 Oscar as a Rover
Version 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the Oscar and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TERSUS Oscar

Summary of Contents for TERSUS Oscar

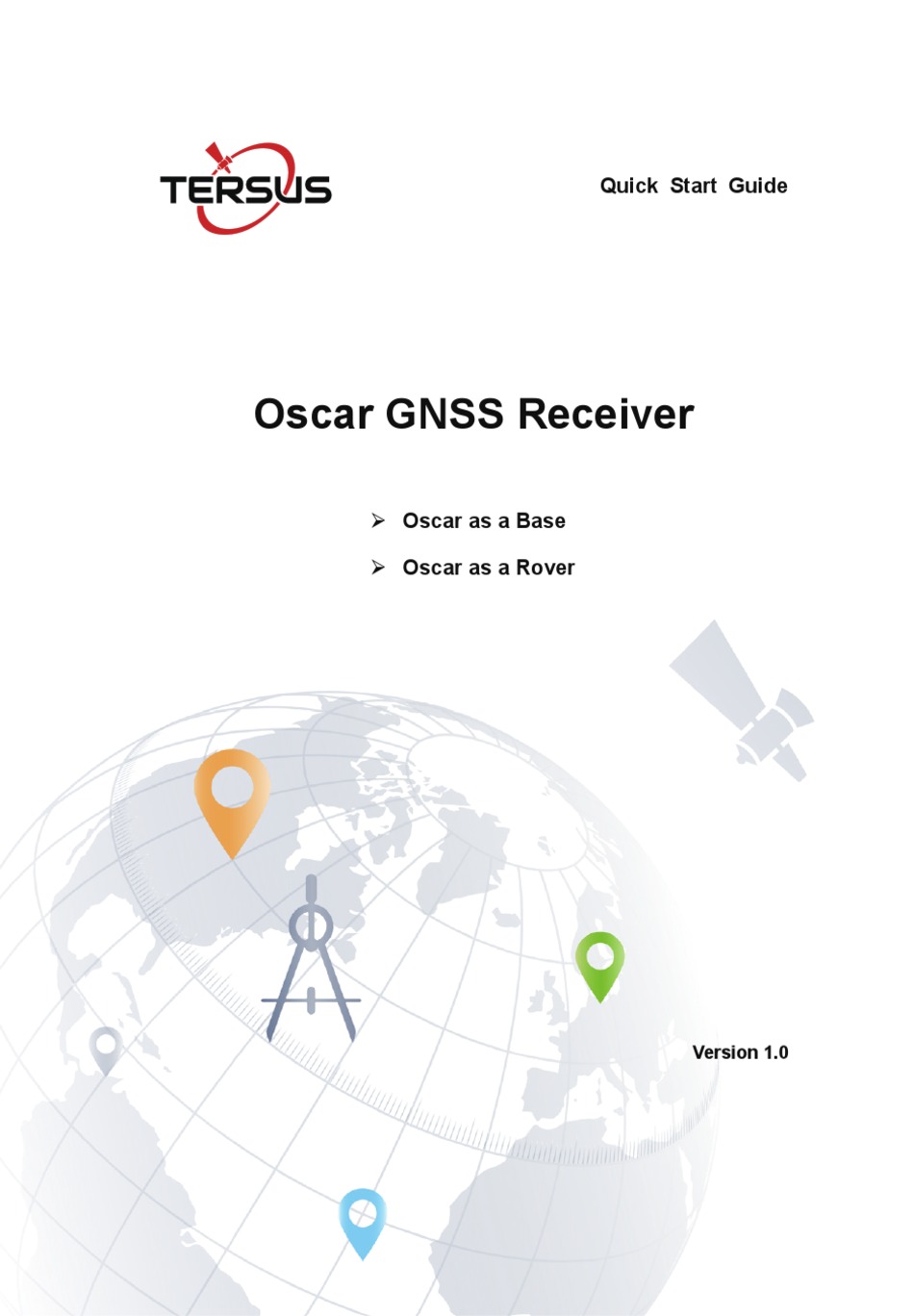

  • Page 1 Quick Start Guide Oscar GNSS Receiver  Oscar as a Base  Oscar as a Rover Version 1.0...

  • Page 2: System Setup

    This Quick Start Guide introduces how to start using Oscar GNSS Receiver quickly, the detailed introduction and operations of Oscar refer to User Manual for Oscar GNSS Receiver.

  • Page 3: Base Setup

    Oscar Quick Start Guide – System Setup 1.1 Base setup Figure 1.1 Oscar as a Base – Network Mode Table 1.1 Devices in Figure 1.1 Device Name Oscar GNSS Receiver Height measure accessory GNSS antenna connector Tribrach Tripod...
  • Page 4 Oscar Quick Start Guide – System Setup Figure 1.2 Oscar as a Base – Internal Radio Table 1.2 Devices in Figure 1.2 Device Name Oscar GNSS Receiver Height measure accessory 410-470MHz radio antenna Extension pole 30cm Tribrach Tripod...
  • Page 5 Oscar Quick Start Guide – System Setup Figure 1.3 Oscar as a Base – External 25W Radio Table 1.3 Devices in Figure 1.3 Device Name Oscar GNSS Receiver Height measure accessory Serial-5pin to 25W-Radio-DC-5pin & Bullet-DC 25W Radio for Oscar...

  • Page 6: Rover Setup

    Oscar Quick Start Guide – System Setup 1.2 Rover setup Figure 1.4 Oscar as a Rover – Network Mode able 1.4 Devices in Figure 1.4 NO. Device Name Oscar GNSS Receiver Ranging pole Bracket for TC20 TC20 Controller...
  • Page 7 Oscar Quick Start Guide – System Setup Figure 1.5 Oscar as a Rover – Internal Radio Table 1.5 Devices in Figure 1.5 NO. Device Name Oscar GNSS Receiver Radio antenna for Oscar Bracket for TC20 Ranging pole TC20 Controller...
  • Page 8 2.Configure via Buttons 2.1 Configure Oscar as a Base Steps of button configuration: 1. Long press the power button to power on Oscar; 2. Press FN button to select [Mode Config], press the power button to enter the work mode options;...

  • Page 9: Nfc Function

    3.Configure via Nuwa App 3.1 NFC Function While Oscar is powered on and the screen of TC20 Controller is unlocked, put TC20 Controller close to the Oscar NFC logo. The Bluetooth pairs automatically after a beep and Nuwa is launched requesting to open the latest project.
  • Page 10 Oscar Quick Start Guide – Configure via Nuwa App 3.2 Create project / open existing project If using an android device without NFC function, ensure Oscar is powered on, and launch Nuwa application on the android device. Click [Project] in the main interface to create a new project or open an existing project as shown in Figure 3.1 and connect Oscar...
  • Page 11 Oscar Quick Start Guide – Configure via Nuwa App Figure 3.3 Base Config Figure 3.4 Rover Config Choose [External Radio] (Base only) or [Internal Radio] or [Receiver Network] or [PDA Network] for Data Link, after the detailed configuration of a base or rover is filled in, then click [OK] and back to the work mode list, select this configuration to start data transmission for base or rover which are shown in Figure 3.5...
  • Page 12 This Quick Start Guide briefly introduces the setup and operation for Oscar GNSS Receiver and the operation of Nuwa app. More details please refer to User Manual of Oscar and User Manual of Nuwa app which can be downloaded from Tersus official website: https://www.tersus-gnss.com/product/oscar-gnss-receiver.
