David Quick Start Guide – Base Kit with 30W Radio
!
Note: Please check the item list first to confirm that this kit is for David
Base Kit with 30W Radio.

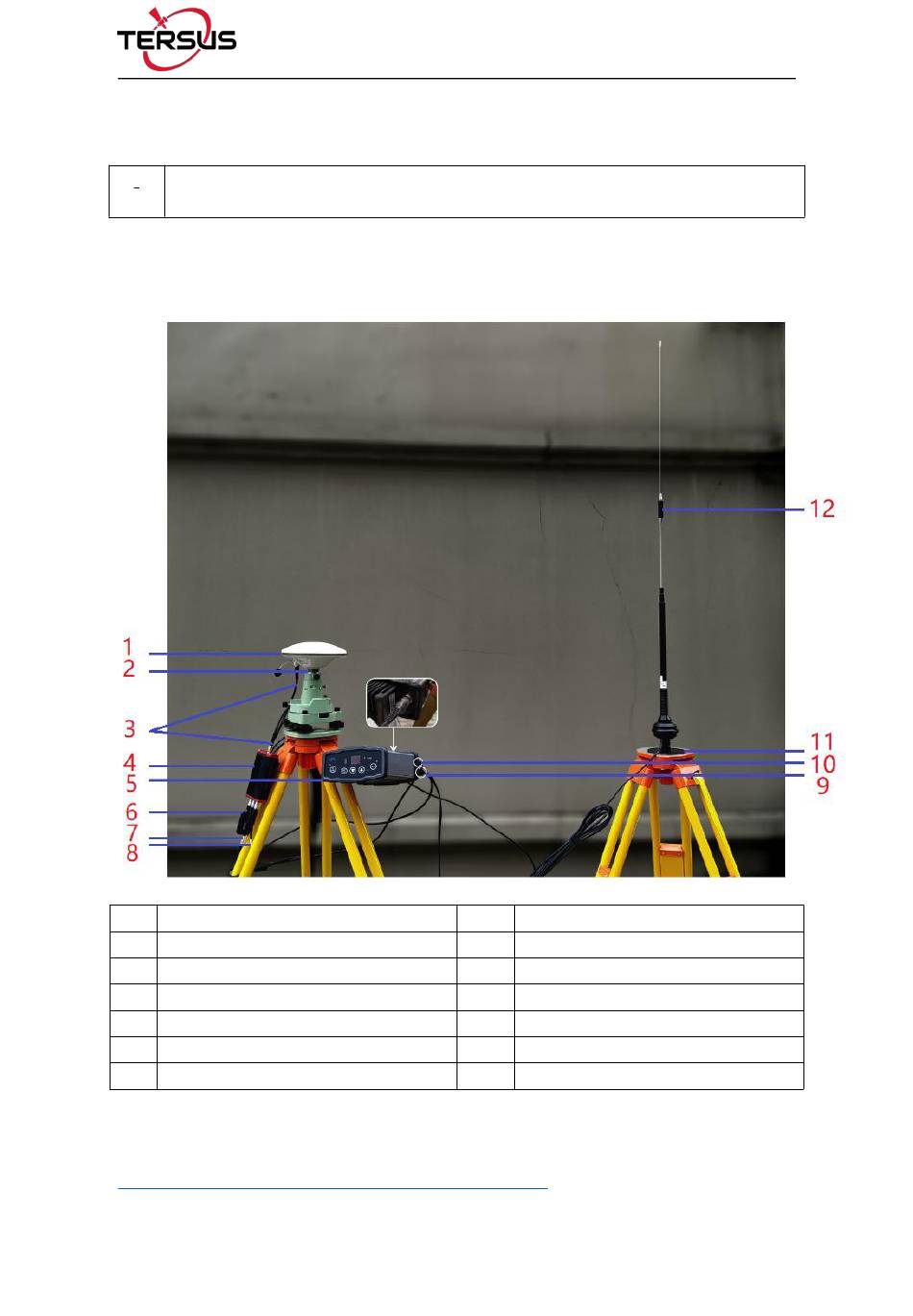

1. David Base Kit with 30W Radio System Structure
NO.
Device Name
1
AX3702 GNSS antenna
2
GNSS antenna connector
3
TNC-J to SMA cable 1.5m (GNSS antenna cable)
4

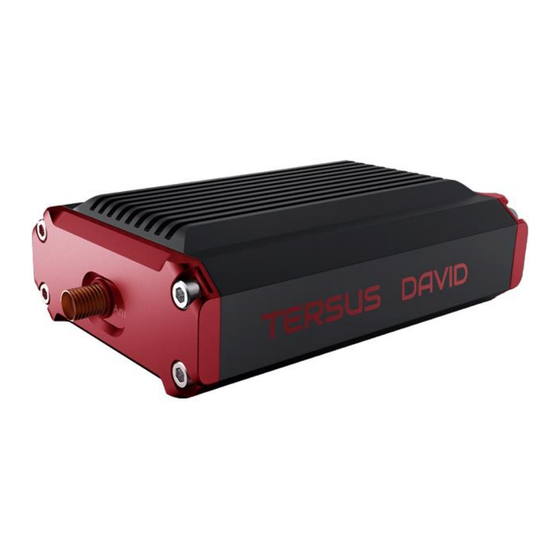

David GNSS receiver
5
30W radio
6
COMM1-Bluetooth module
Note: Bullet-DC connects to 'Bullet-DC to Alligator Clips', then clips to 12V power supply.
David Quick Start Video including Nuwa operation is on the official website:
https://www.tersus-gnss.com/video/david-receiver
David Quick Start Guide – Base Kit with 30W Radio v1.0
NO.
Device Name
7
COMM2-7pin to USB+30W-Radio-5pin cable
8
DC-2pin&30W-Radio-DC-2pin to Bullet-DC
9
DC-2pin&30W-Radio-DC-2pin to Bullet-DC
10
COMM2-7pin to USB+30W-Radio-5pin cable
11
Metal plate for radio antenna
12
High Gain Radio Antenna
1
