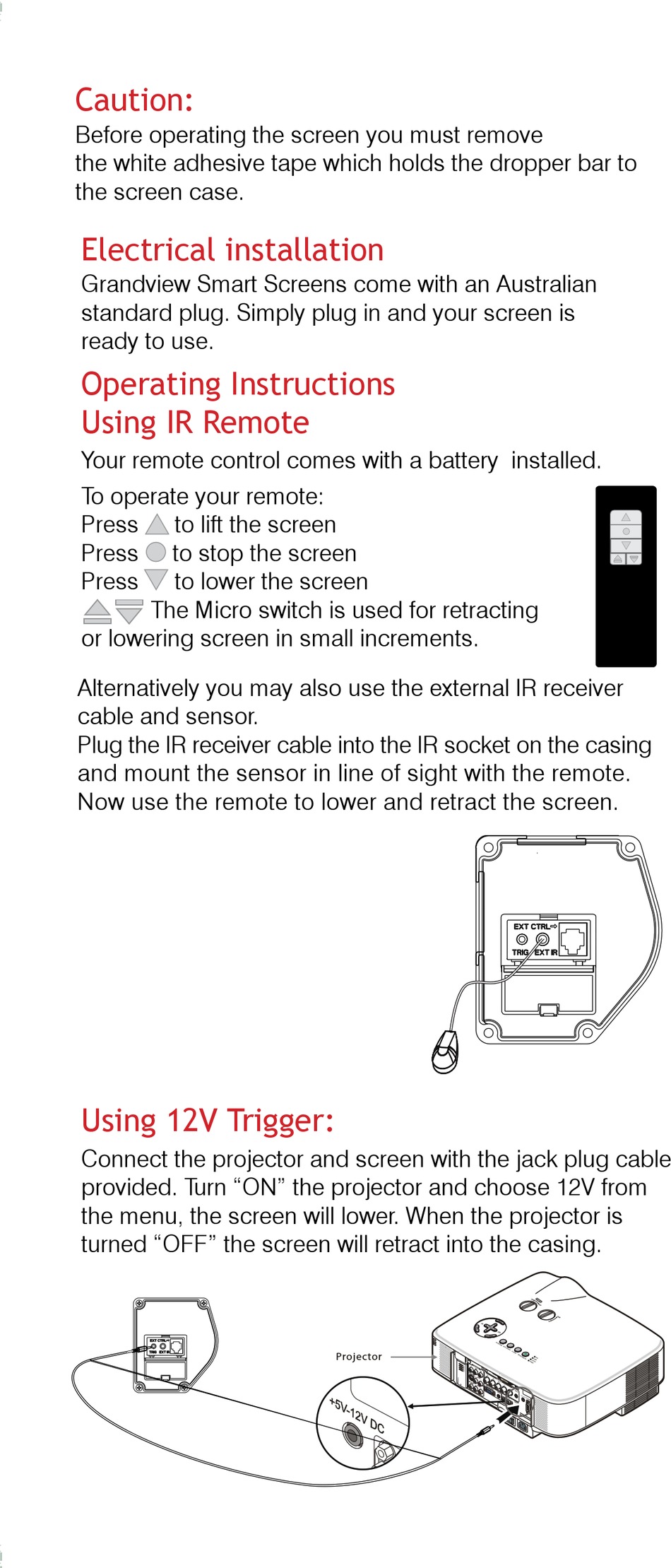

Caution:
Before operating the screen you must remove
the white adhesive tape which holds the dropper bar to
the screen case.

Electrical installation

Grandview Smart Screens come with an Australian
standard plug. Simply plug in and your screen is
ready to use.
Operating Instructions
Using IR Remote
Your remote control comes with a battery installed.
To operate your remote:
Press  to lift the screen
Press  to stop the screen
Press  to lower the screen
The Micro switch is used for retracting
or lowering screen in small increments.
Alternatively you may also use the external IR receiver
cable and sensor.
Plug the IR receiver cable into the IR socket on the casing
and mount the sensor in line of sight with the remote.
Now use the remote to lower and retract the screen.
Using 12V Trigger:
Connect the projector and screen with the jack plug cable
provided. Turn "ON" the projector and choose 12V from
the menu, the screen will lower. When the projector is
turned "OFF" the screen will retract into the casing.
Projector
Figure 22
Limit se
The scree
the left ha
the up or d
the WHITE
BOTTOM
Setting
The YELLO
prevent ac
lead you t
damage th
DO NOT R
YELLOW P
VIOD YOu
Setting
CAuTION
leader ma
your warr
To access
grommet b
case. Ope
Insert the H
CLOCKWI
15mm step
To raise the
the bottom
and turn it
rise by app
HOWEVER
screen has
Using c
Simply co
system, an
in the con
pre-set lim
EXTERNAL C
Dry contac
UP and Do
GND conn
