Grandview GPCM-C Instruction Manual

A. Please install GPC support bar
Assembly on the ceiling
Fix the base on the ceiling or concrete
(please ensure that the load is 40kg at least).

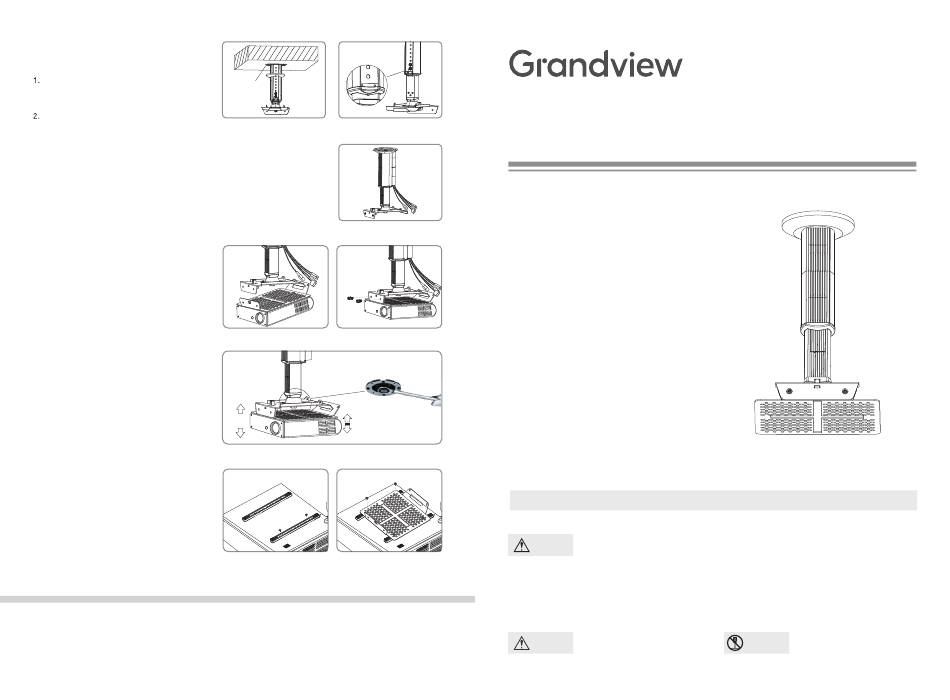

Figure 6
Open the back ornament board ③ b, and
loosen the screws of subsidiary arm④ .
Please adjust the subsidiary arm④ to your
desired position (this function is only for
B200、 B300), and then fasten the screws
again. Please hide the power line into the gap
and close the back ornament board③ b.
Figure 7 and Figure8.
B. Please connect the GPC support bar
assembly and GPM projector fixation
1. For installing the completed low bracket ⑧ to
the top bracket⑦ that push up the completed
low bracket until it is fixed with the security
lock⑨ and fasten the screws,refer to figure9
and figure 10.
2. Please ensure the GPC projector fixation is
fastened.
3. Connection of power cord to projector.
4. Install the back ornament board.

C. Adjust your desired angle.

1. Loosen the screws of GPC support bar
assembly⑥ via the spanned; adjust the
projector to your desired position and fasten
it. Figure 11
2. The direction of projector can be adjusted by
forward 30° and backward 3°. Left and
right adjustment is 3°.
Installation for multifunctional arm
(optional accessories)
1. Install the multifunctional arm ⑩ on the
projector. Figure 12
2. Adjust the fixer ⑩ a of multifunctional arm for
aligning the install hole of low bracket, and
then fasten the screws. Figure 13
3. Install ornament board⑩b for multifunctional
arm.
Grandview Crystal Screen Canada Ltd.
#11- 3751 North Fraser Way,
Marine Way Business Centre,
Burnaby, BC, Canada V5J 5G4
Tel: 1-604-412-9777 Fax: 1-604-412-9796
Website: www.grandviewscreen.ca
M6-M8 Expanding
Screw or Tapping
Screw
Figure 6 Figure 7
Figure 8
Figure 9 Figure 10
3°
3°
30°
Figure 11
Figure 12 Figure 13
Guangzhou Grandview Crystal Screen Co., Ltd.
No.43,Guomao Road South, Hualong Town,
Panyu District, Guangzhou City, China
Tel: +8620-8489-9499 Fax: +8620-8480-3343
Website: www.grandviewscreen.com
www.grandviewscreen.com.cn
Projector Lift GPCM-C
Applicable Model: GPCM-C Series
Please read before using
Thank you for purchasing our products.
Please read the instruction manual
carefully in order to ensure this projector lift
is suitable for your projection equipment.
Cautious
This instruction manual is written for dealers and technicians.
Warnings
The customer must employ the technicians for installation. Please process the
construction following this instruction manual to avoid injury caused by accidents.
For safety, the minimum load of ceiling must be 40KG
Please do not incline the
Caution
projector the extremely.
Instruction Manual
Do not Please do not take apart the
take apart
accessories of projector lift.
