Telescopic rod projector lift installation manual
Model:GPCD50 Series
Grandciew Crystal Screen Guangzhou Co.,Ltd.
Guangzhou Jude Intelligent Audiovisua l Equipment Co., Ltd.
No.43 S, Guomao Ave. H ualong, Panyu, Guangzhou, Guangdong, P.R.C
http://www.grandviewscreen.com
After-sales service T el:0 20-84899499
Thank you for purchasing this product. Please read the manual carefully before use.
Please read the collection after reading for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Grandview GPCD50 Series
Summary of Contents for Grandview GPCD50 Series

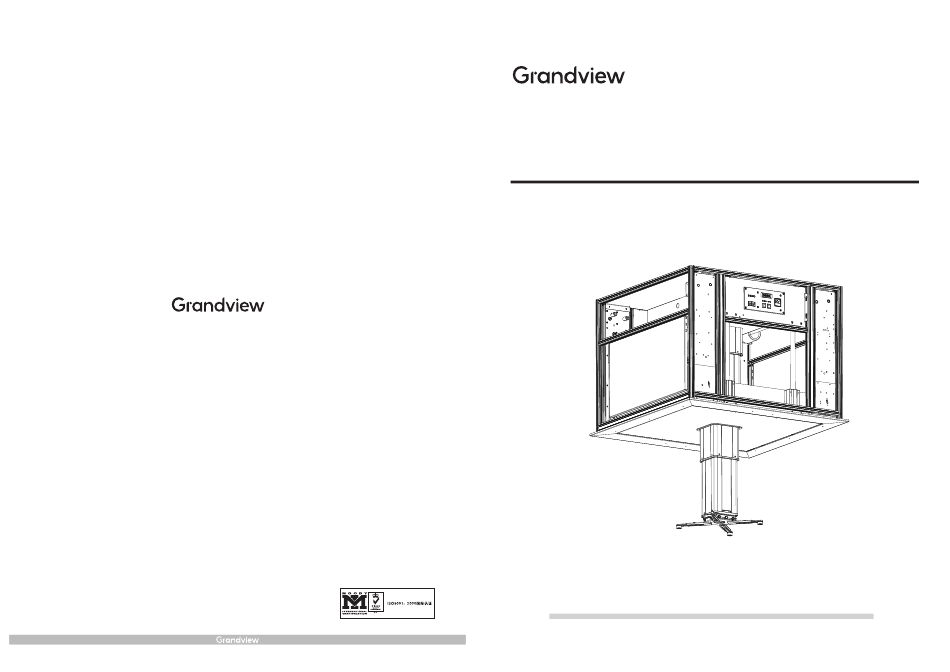

- Page 1 Telescopic rod projector lift installation manual Model:GPCD50 Series Grandciew Crystal Screen Guangzhou Co.,Ltd. Guangzhou Jude Intelligent Audiovisua l Equipment Co., Ltd. No.43 S, Guomao Ave. H ualong, Panyu, Guangzhou, Guangdong, P.R.C http://www.grandviewscreen.com After-sales service T el:0 20-84899499 Thank you for purchasing this product. Please read the manual carefully before use.
- Page 2 The design of this product can be used without failure for many years, many problems are caused by simple things. If something goes wrong, check out our simple fix list.If the problem continues, please contact the authorized dealer or call the after-sales service number: 020-84899499-509 Trouble The cause of the trouble The solution...
- Page 3 Caution 1.Please ensure the installation ceiling be secure enough to avoid falls, The loading capacity must be 4 times of the projector lift and the projector. 2.Please tighten all the screws and check whether it become loose regularly, to ensure safety use. 3.Please do some regular maintenance.
- Page 4 Components Remote control Notes 1.Working temperature: -20℃ to +70℃ 2. Battery: 2 pcs of RC2032 button battery GPCD50 Series Projector Lift Traction wire electronic 3.Requires replacement battery when given positioning setting button signal weak Battery 1.Control panel Battery installation: 2.Electric ceiling door...
- Page 5 高级 （ ） … 还原默认值(R) 安装孔φ10mm 310mm 确定 确定 取消 取消 Hexadecimal control code: GPCD50 Series： Size：640x640xH mm UP：ff,ee,ee,ee,dd Max Load：15kg STOP：ff,ee,ee,ee,cc Ceiling Hole Opening Size：655x655 mm DOWN：ff,ee,ee,ee,ee Screw Rod Installation Size：310x620 mm Some center console need setting address:ff,ee,ee,ee,aa Ceiling door Dimension ：680x680 mm Rated Voltage：220V 50Hz...
- Page 6 Installation Remote Localizer Installation instructions When it is necessary to set the lower limit, open the electric double door. When the laminate reaches the ceiling, press the pause button to use the keyhole on the back of the remote controlWhen the needle is inserted into the blue light, the hanger will enter the preset state and reach the position required by the customer.
- Page 7 Angle adjustment Installation steps Rotate left and right ±3° 1.determine the direction of the projector and the installation position, according to the size of the opening in the ceiling layer. 1.Rotate left and right Use a hex wrench to loosen the two screws on the front end. As shown by the arrow in Figure 1, the universal joint can be adjusted to the left and right by ±3°.
- Page 8 3.After checking that the tapping screw is fixed, install the screw rod and fix it. (In order to 5.Install the decorative frame so that the decorative frame fits on the ceiling layer and the make the screw rod easier to pass through the lifter, we recommend that the end of the installation is completed.
