Telescopic rod projector lift installation manual
Model:GPAD64 Series
Grandciew Crystal Screen Guangzhou Co.,Ltd.
Guangzhou Jude Intelligent Audiovisua l Equipment Co., Ltd.
No.43 S, Guomao Ave. H ualong, Panyu, Guangzhou, Guangdong, P.R.C
http://www.grandviewscreen.com
After-sales service T el:0 20-84899499
Thank you for purchasing this product. Please read the manual carefully before use.
Please read the collection after reading for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Grandview GPAD64 Series
Summary of Contents for Grandview GPAD64 Series

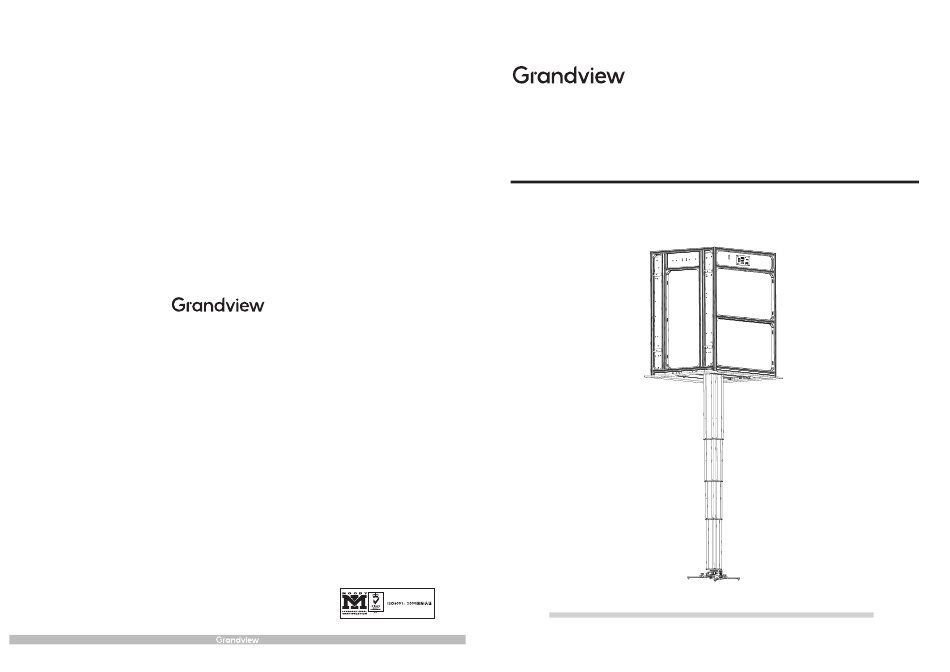

- Page 1 Telescopic rod projector lift installation manual Model:GPAD64 Series Grandciew Crystal Screen Guangzhou Co.,Ltd. Guangzhou Jude Intelligent Audiovisua l Equipment Co., Ltd. No.43 S, Guomao Ave. H ualong, Panyu, Guangzhou, Guangdong, P.R.C http://www.grandviewscreen.com After-sales service T el:0 20-84899499 Thank you for purchasing this product. Please read the manual carefully before use.
- Page 2 Components 1.Please ensure the installation ceiling be secure enough to avoid falls, The loading capacity GPAD64 Series Projector Lift must be 4 times of the projector lift and the projector. 2.Please tighten all the screws and check whether it become loose regularly, to ensure safety use.
- Page 3 Side View Over View Concreted-Ceiling 945mm Screw rod Model: GPAD64 Series 1.Rated Voltage: 220V 50Hz 2.Rated Power: 240W 3.Ceiling Hole Opening Size: W840XD990 mm 4.Screw Rod Installation Size: W480XD945 mm 5.Movable Distance: Please refer to Parameter List in Page 3 6.Ceiling door Dimension: 867mmx1015 mm...
- Page 4 Installation steps 3.After checking that the tapping screw is fixed, install the screw rod and fix it. (In order to make the screw rod easier to pass through the lifter, we recommend that the end of the screw rod be tapered, and the length between each two lead rods can differ by 10-20mm. 1.determine the direction of the projector and the installation position, according to the size of the opening in the ceiling layer.
-
Page 5: Projector Installation
Angle adjustment 5.Install the decorative frame so that the decorative frame fits on the ceiling layer and the installation is completed. Rotate left and right ±3° Rotate left and right Use a hex wrench to loosen the two screws on the front end. As shown by the arrow in Figure 1, the universal joint can be adjusted to the left and right by ±3°. - Page 6 Remote Localizer Rs485 Port Setting: Need to set the lower limit, opened the door of electric double mask, when finished surface layer board to Bit Rate: 2400 smallpox, press the pause button, will the remote control on the back of the puncture needle inserted to blue Data bit: 8 bit light, the hanger into the default state, meet customer customer desired location, press the stop button, once Odd check: N/A...
- Page 7 Remote control Notes 1.Working temperature: -20℃ to +70℃ 2. Battery: 2 pcs of RC2032 button battery Traction wire electronic 3.Requires replacement battery when given The design of this product can be used without failure for many years, many problems are caused by simple things. positioning setting button signal weak If something goes wrong, check out our simple fix list.If the problem continues, please contact the authorized dealer...
