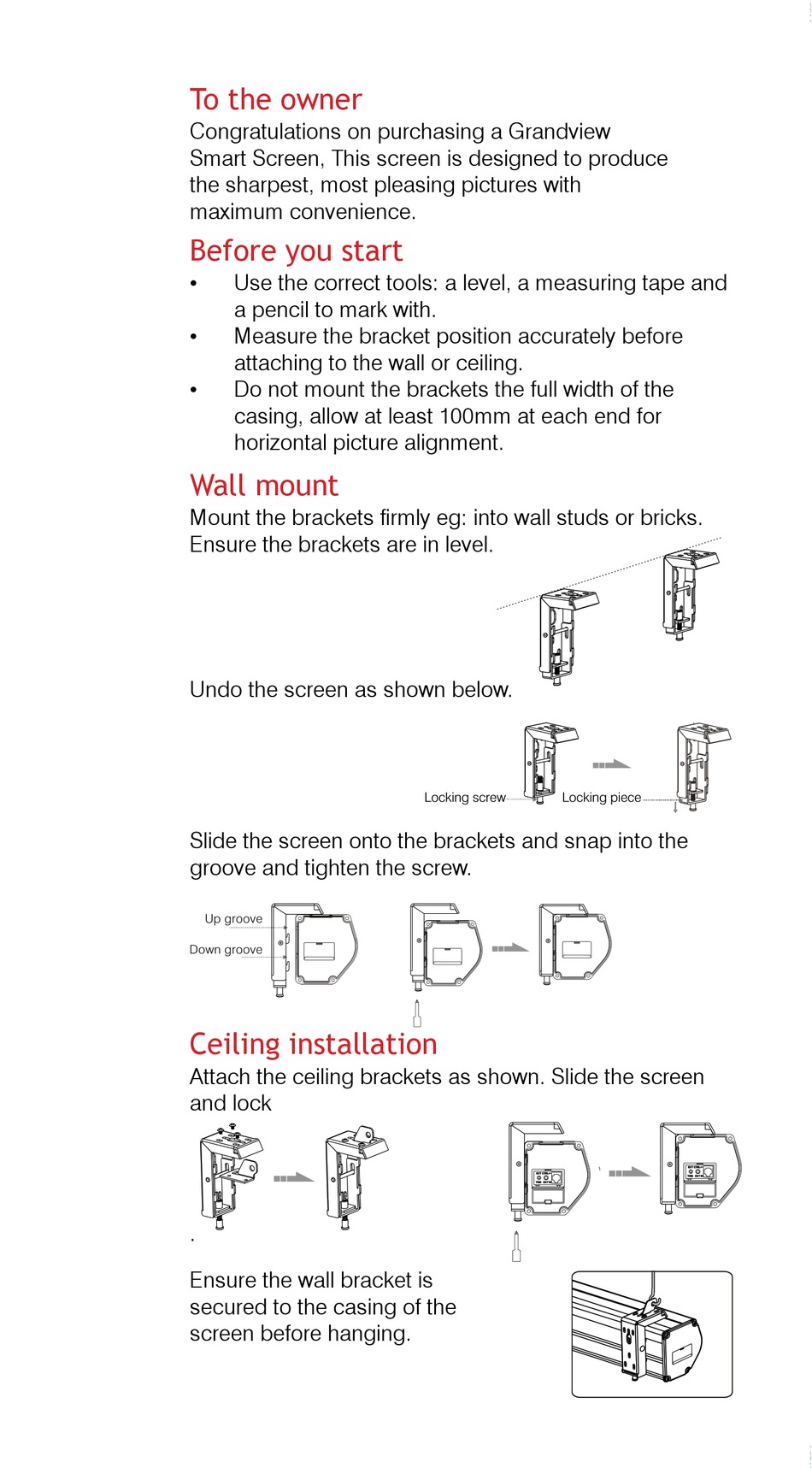

To the owner
Congratulations on purchasing a Grandview
Smart Screen, This screen is designed to produce
the sharpest, most pleasing pictures with
maximum convenience.

Before you start

•
Use the correct tools: a level, a measuring tape and
a pencil to mark with.
•
Measure the bracket position accurately before
attaching to the wall or ceiling.
•
Do not mount the brackets the full width of the
casing, allow at least 100mm at each end for
horizontal picture alignment.

Wall mount

Mount the brackets firmly eg: into wall studs or bricks.
Ensure the brackets are in level.
Undo the screen as shown below.
Slide the screen onto the brackets and snap into the
groove and tighten the screw.
Up groove
Down groove

Ceiling installation

Attach the ceiling brackets as shown. Slide the screen
and lock
.
Ensure the wall bracket is
secured to the casing of the
screen before hanging.
Locking screw Locking piece
Caution:
Before ope
the white a
the screen
Electric
Grandview
standard p
ready to us
Operati
Using IR
Your remot
To operate
Press  to
Press  to
Press  to
The
or lowering
Alternativel
cable and
Plug the IR
and mount
Now use th
Using 12
Connect th
provided. T
the menu,
turned "OF
