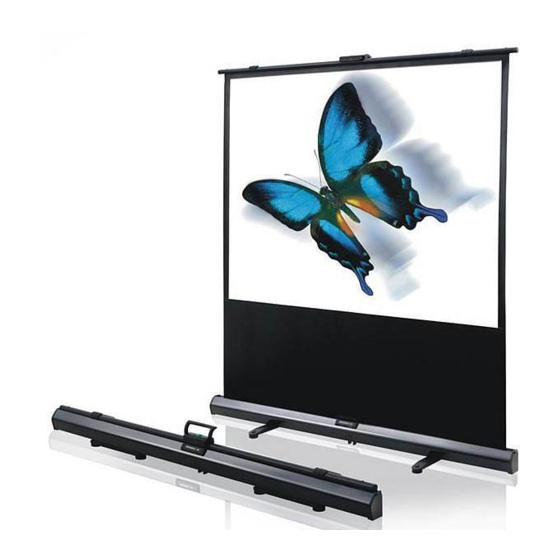

Summary of Contents for Grandview CB-UY60
- Page 1 Installation Guide for Portable Series X-Press Screen Model-Y ISO9001:2000 International Certification CB-UYxx Thanks for purchasing a Liberty Grandview screen...
- Page 2 Note Description 收 合 银 幕 The surface of screen is processed to achieve good performance of the reflector. Any damage of surface will influence projection effects so please use this product in right way. Illustration Caution Please do not shake the screen by hand. Please do not use any cloth with water, volatile oil and corrosive cleaning agents to clean the screen, because they will make the surface metamorphism and paint off.
- Page 3 Specification perpendicular to the screen casing ( Figure 1 - 2 ) Format Model B1 (mm) (In) (kg) W (mm) H (mm) L (mm) A (mm) CB-UY60 60 " 1219 1380 1750 6.25kg 6.85kg CB-UY70 70 " 1422 1067 1582...
- Page 4 Open Screen Retract screen 收 合 银 幕 收 合 银 幕 1. Put the screen back to casing after using. 5. Pull up the screen with constant speed and stop at desired position for three minutes so that the screen can be installed ( Figure 6 - 9 ) 2.
