Steelcase RoomWizard Retrofit Installation Instructions page 7

Hard Surfaces (continued) - Retrofit

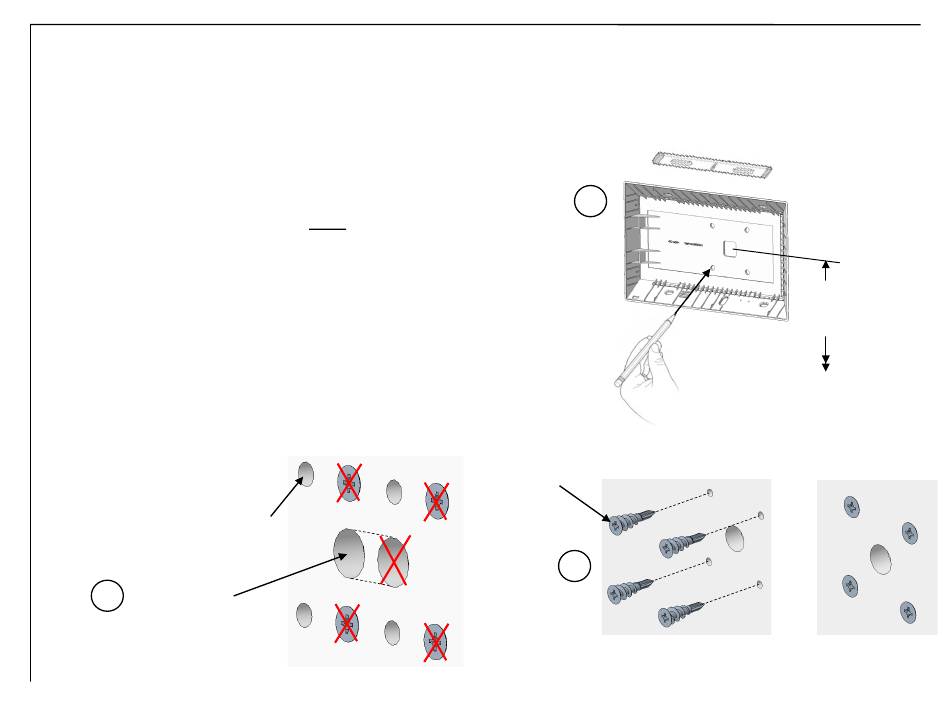

6. Position mount bracket onto wall avoiding existing holes,
mark a 5/8"(16mm) hole for PoE cable and four (4) 3/16"
(5mm) for new wall anchors ensuring the mount bracket is
level.
7. Remove mount bracket from wall and drill four (4) 3/16"
(5mm) holes for wall anchors and one (1)
5/8" (16mm) hole for the PoE cable. Note: if there is a
metal stud use a #32 (3mm) drill to use with the supplied
screws.
8. Screw the wall anchors into the wall using a #2 Phillips
screwdriver. Be sure not to overtighten. Tighten until the
wall anchor flanges are completely against the wall
surface.
9. Go back to Step 1 to complete installation.
3/16
" (5mm) for Wall Anchors
#32 (3mm) Sheet Metal Screws
5/8" (16mm)
7
DRILL BIT FOR
PoE CABLE
½
(12mm) or
"
or
RoomWizard
Retrofit Installation Instructions
6
Wall Anchor
8
Mounting Kits
©
52"
(132cm)
to floor
Page 7 of 22
