Steelcase RoomWizard Retrofit Installation Instructions page 10

Privacy Wall (with 1" flange) – Retrofit

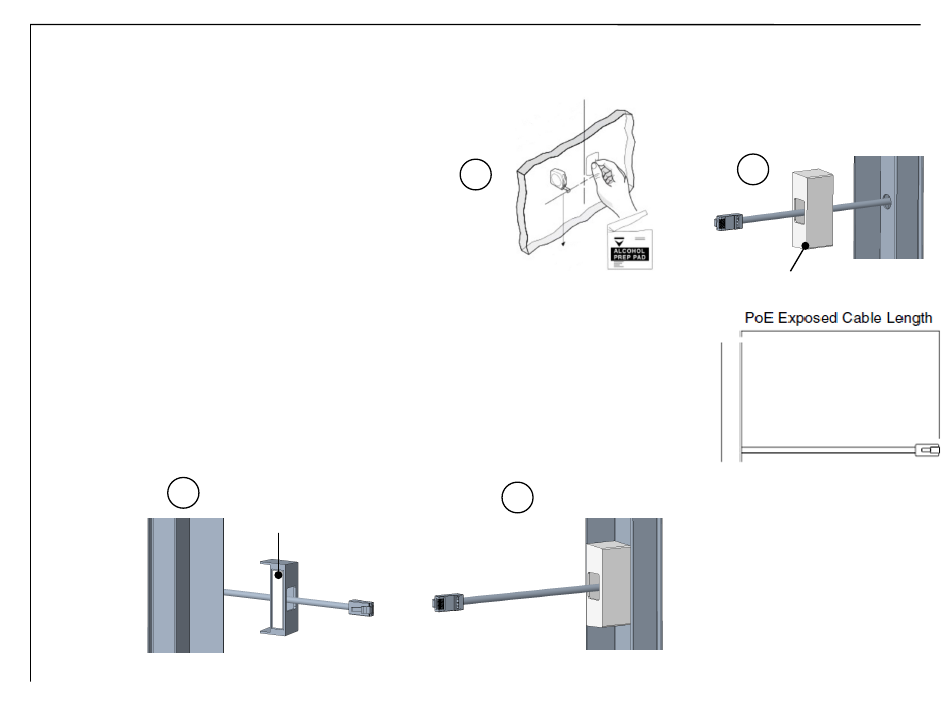

1. See page 5 to remove existing RW20. Thoroughly
clean an area at least as large as the mounting
bracket using the alcohol wipe provided. Allow to
completely dry (approximately 20 seconds) before
attaching mount bracket. Removal of any vinyl
applique is required, vinyl must be cut to a 3-3/8" x
7-1/4" (8.5cm x 18.5cm) rectangle. Glass must be
clean, free of any residue and dry from any
previous application used.
2. Route the PoE cable through the PoE Cable Cover.
See Table 1 for correct exposed length.
3. Remove the adhesive backing film from the
adhesive strip on the back of the PoE cable cover.
4. Center the PoE cable cover with the hole in the
extrusion and attach to the 1" flange. Be sure the
PoE cover is all the way against the extrusion.
3
Adhesive Strip
RoomWizard
Retrofit Installation Instructions
1
52"
(132cm)
TO FLOOR
4
Mounting Kits
©
2
PoE Cable Cover
7-1/2" (19cm)
Page 10 of 22
