Hard Surfaces (Wood, Drywall, Etc.) - Steelcase RoomWizard Retrofit Installation Instructions

Notice
Before installing the RoomWizard, review the existing
wall anchors or mounting holes. They must be flush,
aligned and level. There may be need for adjustment.
Hard Surfaces (wood, drywall, etc.) – Retrofit
If re-using the existing wall anchors or mounting holes please
follow Steps 1-5. If not move to Step 6.

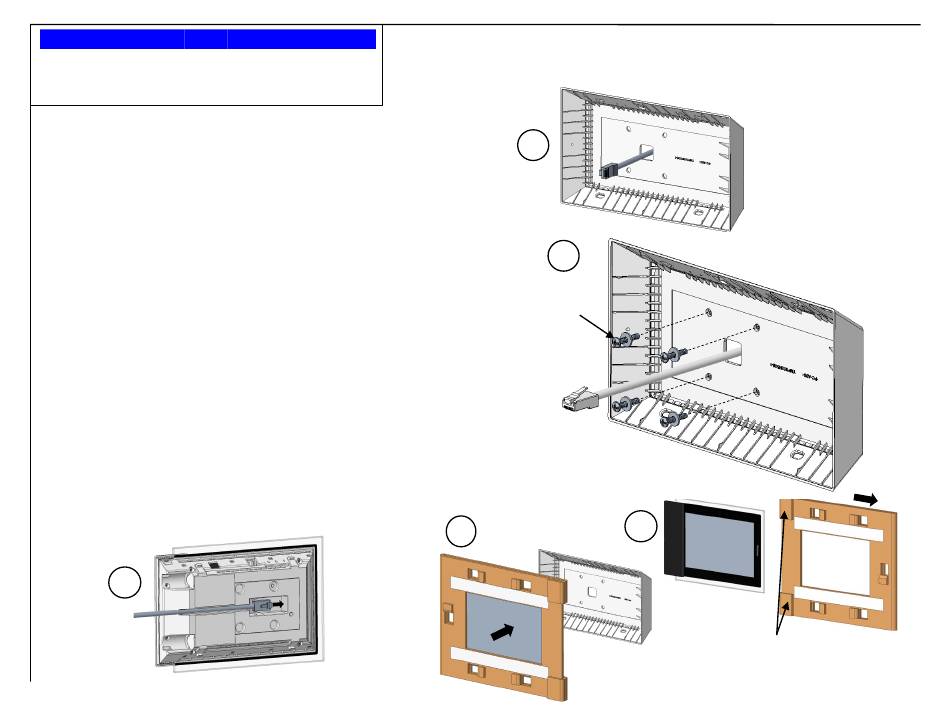

1. See page 4 to remove exiting RW20. Route the PoE cable
through the mount bracket. See Table 1 for correct exposed
length.
2. Place the mount bracket onto the wall and install the four
(4) screws and four(4) washers using a #2 Phillips
screwdriver. Make sure the mount bracket is level before
final tightening.
3. Plug the PoE cable into the back of the RoomWizard.
4. Install the RoomWizard module into the mount bracket.
5. Peel or cut the tabs on the protective cover, then slide to
remove the protective cover.
3
RoomWizard
Retrofit Installation Instructions
1
2
Washer and
Screw
4
Mounting Kits
©
5
Peel or cut the tabs on the protective cover
Page 6 of 22
