Privacy Wall (without 1" flange) – Retrofit

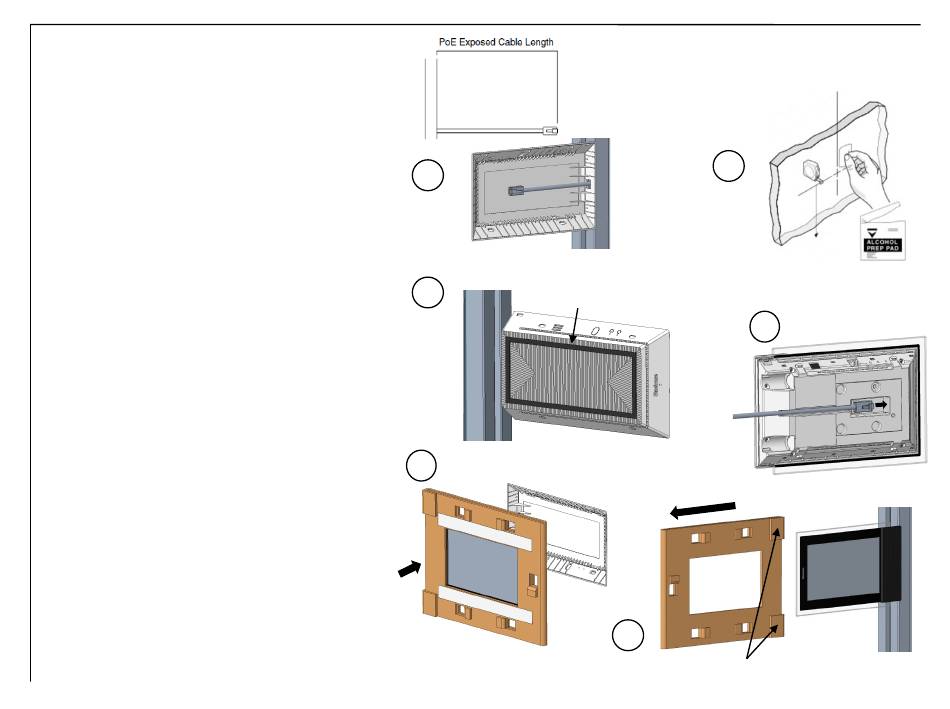

1. See page 5 to remove existing RW20. Route the
PoE cable through the glass mounting bracket.
See Table 1 for correct exposed length.
2. Thoroughly clean an area at least as large as the
mounting bracket using the alcohol wipe
provided. Allow to completely dry
(approximately 20 seconds) before attaching
mount bracket. Removal of any vinyl applique is
required, vinyl must be cut to a 3-3/8" x 7-1/4"
(8.5cm x 18.5cm) rectangle. Glass must be
clean, free of any residue and dry from any
previous application used.
3. Peel the adhesive backing film from the
adhesive mounting strips on the back of the
glass mounting bracket. Making sure the glass
mounting bracket is level and against the frame
then press the glass mounting bracket onto
glass. Hold even pressure for at least 15
seconds.
4. Plug the PoE cable into the back of the
RoomWizard.
5. Attach the RoomWizard to the glass mount
bracket.
6. Peel or cut the tabs on the protective cover,
then slide to remove the protective cover.
6-1/2" (16.5cm)
1
REMOVE ADHESIVE BACKING
3
FILM FROM ADHESIVE STRIPS
5
RoomWizard Mounting Kits
©
Retrofit Installation Instructions
2
4
6
PEEL OR CUT TABS ON
PROTECTIVE COVER
52"
(132cm)
TO FLOOR
