- Page 1 SpectroLED ESSENTIAL 500II LIGHT USER MANUAL...

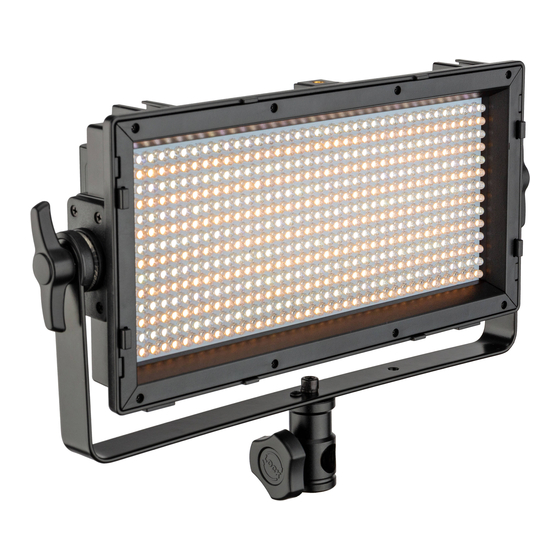

- Page 2 THANK YOU FOR CHOOSING GENARAY The SpectroLED Essential Bi-Color LED and Daylight LED lights have a sturdy housing that’s designed for use in the studio or on location. They produce bright, consistent light SP-E-500II powered by AC power or by two Sony-style NP-F batteries.
- Page 3 · Do not attempt to disassemble or · Make sure the item is intact and that repair the equipment—doing so will there are no missing parts. void the warranty, and Genaray will · All images are for illustrative not be responsible for any damage. purposes only.
-
Page 4: Product Overview
Front LED array PRODUCT OVERVIEW Baby 5/8” Diffusion Tightening Mounting Yoke mounts notches knob receiver and adjustment knobs (2) SpectroLED ESSENTIAL 500II LIGHT - USER MANUAL... - Page 5 Back Dimming Color temperature knob NP-F battery Knob (SP-E-500IIB Only) mount(2) Power button DC input 1/4-20 Cold shoe sockets stacking mounts (4) SpectroLED ESSENTIAL 500II LIGHT - USER MANUAL...
-
Page 6: Key Features
CONTENTS KEY FEATURES INCLUDE · Light Panel · Portable, lightweight LED light · Yoke · Dimming from 100% to 0% · AC to DC adapter · Daylight version produces 5600 K light · AC power cord · Bi-color version has adjustable color ·... - Page 7 MOUNTING THE SPECTROLED ESSENTIAL LIGHTS Horizontally mounted The SpectroLED Essential LED lights come with a preinstalled yoke, allowing you to easily balance and adjust the tilt of the light. The yoke can be mounted horizontally or vertically on a light stand, allowing the user to position the device in a way that the yoke doesn’t block the light.
- Page 8 MOUNTING THE SPECTROLED ESSENTIAL LIGHTS CONTINUED) To remove the yoke, unscrew the two adjustment knobs from the sides. The Essential-series LED lights are also equipped with stacking mounts, allowing you to connect up to three units to create a vast array of additional lighting options. To stack your units, slide the stacking clips into the stacking mounts on one of the devices.
- Page 9 POWERING THE LIGHTS The SpectroLED Essential LED lights come with an included AC/DC cable, allowing for a nearly limitless power supply from a standard electrical outlet. To power your light, plug the AC/DC adapter into a power outlet, and the other end into your device’s DC input port on the back of the unit.
-
Page 10: Adjusting The Light Output
ADJUSTING THE LIGHT OUTPUT The SpectroLED Essential LED lights’ The Essential-series LED lights come output is controlled with the Dimming with an offset diffuser which is perfect knob on the back of the device. Turn the for dispersing and softening the light knob clockwise to adjust the brightness output. -
Page 11: Specifications
SPECIFICATIONS Light Fixture LED Chip Type: Standard Housing Material: ABS Plastic Beam Angle: 60° Number of LEDs: 504 SP-E-500IIB: 3200 to 5600 K Color temperature: Expected Lamp Life: 30,000 hr. SP-E-500IID: 5600 K AC Input Power: 100 to 240 V CRI: SP-E-500IIB: 96.2 (5600 K), 96.2 (4400 K), DC Input Power: NP-F Batteries 7.2 to 7.4 V 95.7 (3200 K... -
Page 12: One-Year Limited Warranty
ONE-YEAR LIMITED WARRANTY This GENARAY product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. Genaray’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at Genaray’s discretion, of any product...
