- Page 1 SSL-836 8 × 36 IN. SOFT STRIP DAYLIGHT LED USER MANUAL...

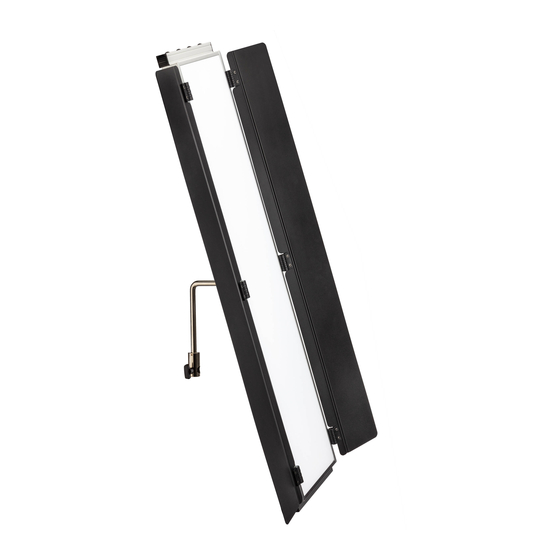

- Page 2 SSL-836 is constructed with full-length barndoors that can cut the beam to a very narrow strip. The SSL-836 has a color temperature of 5600 K and delivers excellent color accuracy with its 96.7 CRI rating. Its power output ranges from 0% to 100% brightness for a full six f-stop range.
- Page 3 · Do not attempt to disassemble or repair · All images are for illustrative purposes the equipment—doing so will void only. the warranty, and Genaray will not be responsible for any damage. SSL-836 8 × 36 in. Soft Strip Daylight LED - USER MANUAL...
-
Page 4: Product Overview
AC adapter Lollipop Two-way 5/8 in. mount receiver Mounting PRODUCT AC power pins OVERVIEW cable Carry case V-mount strap FRONT BACK Diffuser Mounting Plate Barndoors Power input cable SSL-836 8 × 36 in. Soft Strip Daylight LED - USER MANUAL... - Page 5 Dimmer control box Battery contacts Battery release button Hanger loop V-mount battery slot Antenna D-tap power Antenna socket port Power output 4-pin XLR input cable 3-way power switch SSL-836 8 × 36 in. Soft Strip Daylight LED - USER MANUAL...
- Page 6 3. Make sure the lollipop mount is flush with · Antenna the mounting plate, and rotate the lollipop mount a quarter-turn clockwise until it · Carry case clicks into place. SSL-836 8 × 36 in. Soft Strip Daylight LED - USER MANUAL...
- Page 7 Pro Tip: To prevent the light stand from tipping over, place a counterweight like a sandbag over one or two legs of your light stand. SSL-836 8 × 36 in. Soft Strip Daylight LED - USER MANUAL...
- Page 8 Then tighten the locking collar until secure. 3. Push the 3-way power switch to the AC position. SSL-836 8 × 36 in. Soft Strip Daylight LED - USER MANUAL...
- Page 9 To connect gold-mount batteries to the control box, use a D-tap power cable (not included). Important! Do not operate the light while the barndoors are closed. SSL-836 8 × 36 in. Soft Strip Daylight LED - USER MANUAL...
-
Page 10: Wireless Operation
2. Select the channel for each light by repeatedly tapping the channel button. 3. Make sure the control boxes are set to the same channel. SSL-836 8 × 36 in. Soft Strip Daylight LED - USER MANUAL... - Page 11 Individual Control and operation instructions. (multiple lights set to different channels): Use the brightness control on one box to adjust the brightness of lights set to each channel. SSL-836 8 × 36 in. Soft Strip Daylight LED - USER MANUAL...
-
Page 12: Product Specifications
CRI: 97.6 TLCL: 99.0 Dimming: 0% to 100% in 1% increments Display: LCD Housing Material: Metal Light Intensity @ 3 ft.: 3520 lx Expected Lamp Life: 50,000 hr. SSL-836 8 × 36 in. Soft Strip Daylight LED - USER MANUAL... -
Page 13: Remote Operation
Max Power Consumption: 112 W Fixture Mount: 5/8 in. receiver Power Pass-Through: No Remote Operation Remote Control Type: 2.4 GHz Number of Channels: 4 Wireless Range : 100 ft. (30 m) SSL-836 8 × 36 in. Soft Strip Daylight LED - USER MANUAL... -
Page 14: Fcc Disclaimer
SSL-836 8 × 36 in. Soft Strip Daylight LED - USER MANUAL... - Page 15 ONE-YEAR LIMITED WARRANTY This Genaray product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. Genaray’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at Genaray’s discretion, of...
