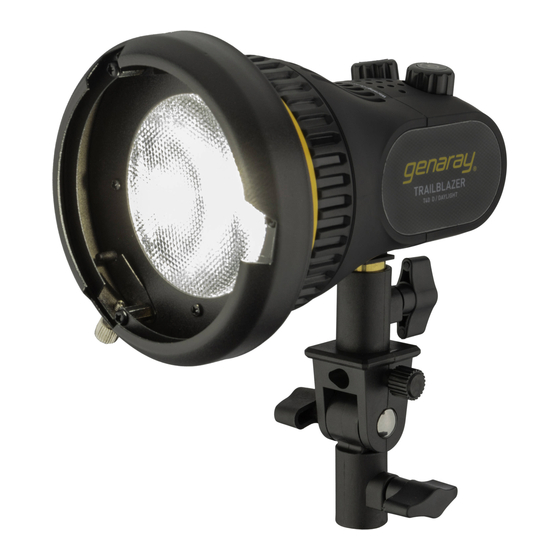

- Page 1 T40-D TRAILBLAZER PORTABLE 40 W DAYLIGHT LED MONOLIGHT USER MANUAL...
- Page 2 THANK YOU FOR CHOOSING GENARAY Genaray’s compact and portable Trailblazer features a COB LED array that offers bright, flicker-free light that’s perfect Trailblazer for photo and video shoots in the studio or on location. INTRODUCTION The fixture runs on a readily available NP-F battery or on...
- Page 3 · Do not attempt to disassemble or that there are no missing parts. repair the equipment—doing so will · All images are for illustrative void the warranty, and Genaray will purposes only. not be responsible for any damage. Trailblazer Portable LED Monolight - USER MANUAL...
- Page 4 LCD Screen Brightness indicator graphic Battery status OVERVIEW Remaining battery percentage Brightness indicator Trailblazer Portable LED Monolight - USER MANUAL...
- Page 5 Bowens mount Brightness Knob Power Knob DC power input Battery Diffuser lens release Battery slot and contacts 5/8 in. baby pin Fix screw Trailblazer Portable LED Monolight - USER MANUAL...
- Page 6 Tilt Adapter Power and Cables Top receiver AC adapter Locking knobs Umbrella lock Umbrella mount AC power cord Tilt lock Bottom receiver Carry case Battery charger NP-F970 battery and plate Trailblazer Portable LED Monolight - USER MANUAL...
-
Page 7: Charging The Battery
If the battery has the plate into the charger. not been in use for several months, Genaray Swivel the plug out of the notch, and recommends fully recharging the battery plug the charger into an available before a shoot. -
Page 8: Preparing For Use
PREPARING FOR USE Place the Trailblazer’s baby pin into MOUNTING ON A LIGHT STAND the tilt adapter’s receiver, and tighten Important! the locking knob until secure. Always support the Trailblazer with one To adjust the angle of the light, loosen the hand when mounting or adjusting the tilt lock while supporting the light with angle until all locks and connections are... - Page 9 POWERING THE TRAILBLAZER ATTACHING A REFLECTOR OR USING THE TRAILBLAZER WITH LIGHT-SHAPING ACCESSORY BATTERY POWER The Trailblazer features an integrated Make sure the power knob is in the Bowens mount that accommodates most off position the barrel connector Bowens-compatible accessories such as from the DC input if it's plugged in.
-
Page 10: Setting The Brightness
SETTING THE PRODUCT BRIGHTNESS SPECIFICATIONS Use the brightness knob to Light Fixture adjust the brightness from 100% LED Chip Type: COB LED to 5% in 1% increments. Output Power: 40 W Beam Angle: 40° Color Temperature: 5600 K Color Accuracy Standard: CRI: 97.1 TLCI: 99 Cooling System: Fan Dimming: Yes (100% to 5% in 1% increments) - Page 11 PRODUCT SPECIFICATIONS (CONT.) Dimensions: Length: 6.25 in. (15.9 cm) Power Diameter:5 in. (12.7 cm) AC Input Power: 100 to 240 V AC, 50/60 Hz Weight: 1.3 lb. (0.6 kg) without battery DC Input Power: 7.4 V Power Source: AC adapter, NP-F battery Connectors Max Power Consumption: 40 W Battery Plate: Integrated NP-F battery plate...
- Page 12 ONE-YEAR LIMITED WARRANTY This Genaray product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. Genaray’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at Genaray’s discretion, of...
