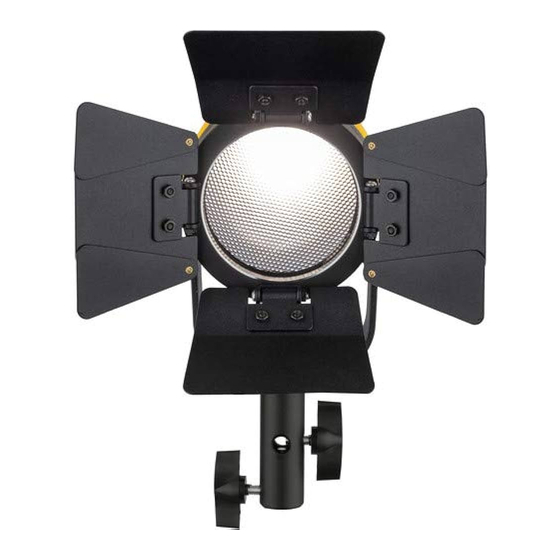

- Page 1 BLT-60 / BLT-60B Torpedo PORTABLE FOCUSING LED USER MANUAL...
- Page 2 THANK YOU FOR CHOOSING GENARAY The Genaray Torpedo is a great choice for photographers and videographers who need a powerful and focusable beam from a compact, portable source. This advanced light is perfect for events that are usually shot on location, such as weddings and BLT-60 / BLT-60B meetings.
- Page 3 · Use only the correct, recommended voltage. · Do not attempt to disassemble or repair the equipment—doing so will void the warranty, and Genaray will not be responsible for any damage. Torpedo Portable Focusing LED - USER MANUAL...
-
Page 4: Product Overview
Focusing ring Heat vents LED array PRODUCT OVERVIEW Locking knobs Yoke screw Umbrella locking knob Umbrella Locking mount Barndoors knob 5/8 in. light stand receiver Torpedo Portable Focusing LED - USER MANUAL... - Page 5 Battery terminals Battery slot 3-pin mini XLR Battery power input release button Filters (×4) D-tap cable AC adapter and Diffusers (×2) Lens power cord Torpedo Portable Focusing LED - USER MANUAL...
- Page 6 ATTACHING THE MOUNTING ON A BARNDOORS LIGHT STAND Align the barndoors with the front of the 1. Loosen the yoke’s locking screw, and fit Torpedo, and screw them on until the receiver over the light stand’s 5/8-inch they’re secure. stud. Tighten the locking screw until secure.
- Page 7 POWERING THE TORPEDO AND ADJUSTING THE BRIGHTNESS AC Power Battery Power Important: The Torpedo is a multivoltage The Torpedo will operate with two different fixture capable of running on 120 to 240 V, types of batteries. 50/60 Hz. The included cable has a 120 V, 50 Sony NP-F Series Batteries: Align the battery Hz (North American) plug.
- Page 8 OPERATING THE TORPEDO Using the Barndoors Adjusting the Light Unfold the barndoors to shape the beam and With the light turned on, press the up and prevent light spill. down buttons to adjust the brightness from 1% to 100%, in 1% increments. Using a Diffuser or Filter Adjusting the Color Temperature The Torpedo comes with two diffusers of...
- Page 9 Mounting an Umbrella Adjusting the Fresnel Lens An integrated umbrella mount in the The Torpedo has an integrated Fresnel-style Torpedo’s yoke accepts an umbrella that lens that focuses the angle of the beam from a has a standard 8 mm shaft. 15°...
-
Page 10: Recommended Accessory
RECOMMENDED ACCESSORY Bowens Mount Adapter The BLT-60BA Bowens adapter ring screws onto the Torpedo and lets you attach light- shaping tools with Bowens-style S-mounts, such as softboxes, diffusers, and globes. -
Page 11: Product Specifications
PRODUCT SPECIFICATIONS Light Source: 60 W COB LED array Light Intensity (lx) @ 3 ft: Lamp Life: 50,000 hr. BLT-60: 15°: 12026 lx (5600 K) 75°: 4131 lx (5600 K) Beam Angle: 15° to 75° BLT-60B: 15°: 9260 lx (5600 K), Color Temperature: BLT-60: 5600 K 8310 lx (4400 K), 7760 lx (3200 K) BLT-60B: 3200 to 5600 K... -
Page 12: One-Year Limited Warranty
ONE-YEAR LIMITED WARRANTY This Genaray product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. Genaray’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at Genaray’s discretion, of...
