Summary of Contents for Genaray Mini Moon RSF-11

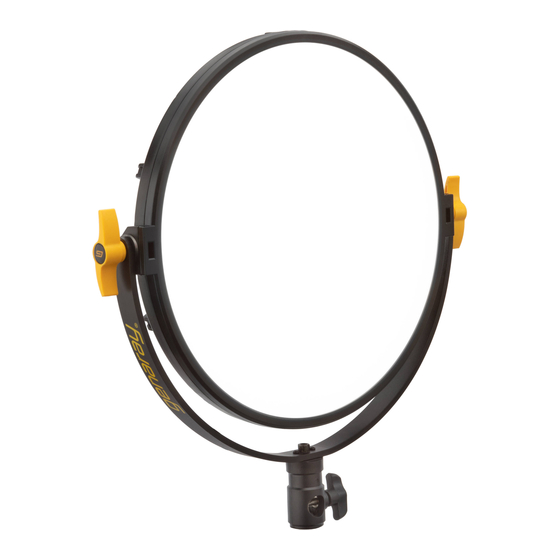

- Page 1 RSF-11 Mini Moon 11 IN. ROUND BI-COLOR SOFT LED USER MANUAL...
- Page 2 THANK YOU FOR CHOOSING GENARAY The Genaray Mini Moon LED light is a thin and portable fixture that provides photographers and videographers with a natural and soft continuous light source with Mini Moon broad coverage. This 600-LED fixture casts a bright...
- Page 3 · Keep this unit away from water and void the warranty, and Genaray will any flammable gases or liquids. not be responsible for any damage. · Make sure the unit is powered off ·...
- Page 4 Accessory shoe mount Diffuser PRODUCT OVERVIEW Tilt Adjustment Knobs Yoke 1/4-20 threading mounting socket 2-way 5/8 in. Locking knob mount Mini Moon 11 in. Bi-Color LED Light - USER MANUAL...
- Page 5 Channel/ V-mount DMX address release button Battery status Brightness V-mount battery plate Color temperature D-tap connector NP-F battery plates LCD screen DMX selector button Color temperature Channel selector knob button Color temperature quick adjust (+ or -400 K) DMX output port DMX input port Dimmer/channel knob Power socket...
- Page 6 POWERING THE CONTENTS INCLUDE MINI MOON · LED with yoke The Mini Moon can be powered directly from an AC outlet, two NP-F · AC adapter batteries, or one V-Mount battery. · Power cord · User manual USING THE MINI MOON WITH AC POWER ·...
- Page 7 Important INSTALLING NP-F BATTERIES Use only V-mount batteries with a Align the batteries with the battery maximum of 14.8 volts per battery. terminals on the battery plates. Place the Two NP-F batteries must be attached batteries down into the plates, and slide to the Mini Moon to power the light.
- Page 8 The MB -WRT can operate the Mini Moon, as After powering on the Mini Moon, set well as Genaray’s Full Moon LED and other light fixtures, from up to 98 feet (30 m) away. the brightness and color temperature by rotating the knobs on the back of the fixture.
- Page 9 USING DMX 3. Press the channel select button The Mini Moon supports DMX-512 so to set the channel. The channel the light’s settings can be remotely icon will stop blinking. controlled from a DMX console. Refer to the MB-WRT user manual to Note set the channel on the transmitter.
-
Page 10: Product Specifications
PRODUCT SPECIFICATIONS LED Count: 600 To set the DMX address on the Mini Moon: Color Temperature: 3200 to 5600 K · Press the DMX selector button to switch to DMX mode. The DMX Luminance: 1900 lx @ 3 ft. icon will appear onscreen. Coverage: 120°... -
Page 11: One-Year Limited Warranty
ONE-YEAR LIMITED WARRANTY This Genaray product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. Genaray’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at Genaray’s discretion, of...
