Summary of Contents for Genaray SRL-10

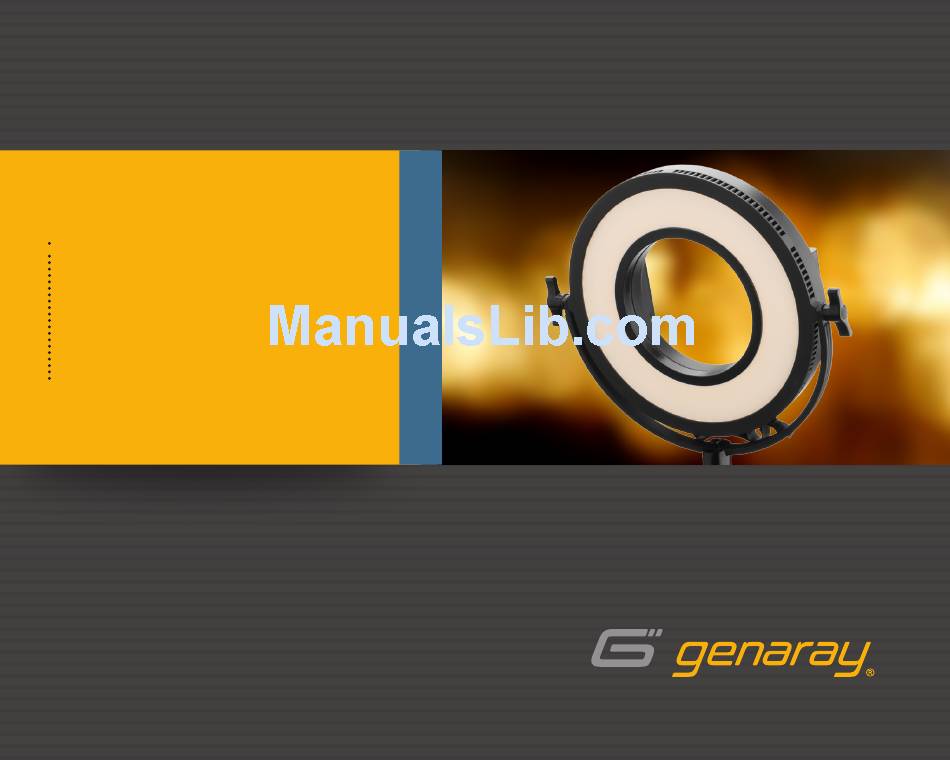

- Page 1 SRL-10 SpectroLED USER MANUAL SpectroLED - USER MANUAL...
- Page 2 THANK YOU FOR CHOOSING GENARAY. The Genaray Soft Ring Light LED provides photographers and videographers with ultrabright yet soft continuous light. This 120- SpectroLED LED fixture can operate on AC or battery power, and it features INTRODUCTION flicker-free light from 100% to 10% with an even 75° beam angle.
- Page 3 · Use only the correct, recommended voltage. · Do not attempt to disassemble or repair the equipment—doing so will void the warranty, and Genaray will not be responsible for any damage. SpectroLED - USER MANUAL...
- Page 4 Front diffuser (not removable) PRODUCT OVERVIEW Tilt locking knob Yoke Locking knob 5/8 in. mounting receiver SpectroLED - USER MANUAL...
- Page 5 Dimmer indicator Battery indicator Color temperature indicator Power/dimmer knob Color temperature knob Battery release button Yoke locking knob Battery DC input Also included: • Dual charger • Charger power cord Ratchet handles • Cigarette lighter charging cable • AC adapter •...
- Page 6 ROD SYSTEM The mounting bracket that comes with the 3. Slide the light and bracket onto the rods, SRL-10 is compatible with 15 and 19 mm and turn the ratchet handles until secure. rod support systems. To mount the SRL-10 to a rod system, follow these steps: 1.
- Page 7 MOUNTING TO A LIGHT STAND OR TRIPOD The SRL-10 includes a removable yoke for Alternate method: The yoke can also be easy light stand attachment. mounted onto a light stand with a 1-inch junior-pin receiver. Remove the locking 1. Attach the yoke to the threaded side...
- Page 8 Using the SRL _ 10 with Battery Power The SRL-10 can be powered directly from an AC outlet or by one or two NP-F The SRL-10 can be powered by one or two style batteries (included). NP-F style batteries. Using the SRL _ 10 with AC Power...
- Page 9 OPERATING THE SRL-10 1. Make sure the power switch is in the Off Power the SRL-10 on by turning the power position, and the fixture is not plugged into knob. The LCD screen will show the last a wall outlet.
-
Page 10: Specifications
PRODUCT SPECIFICATIONS LED count: Working voltage: AC: 100 to 240 V DC: 7.4 to 14 V Color temperature: 3200 (±200) to 5600 K (±300 K) Battery type: NP-F style rechargeable Luminance: 900 lx @ 0.5 m lithium-ion battery Coverage: 75° Mount: Bracket for 19 and 15 mm rail systems CRI:... - Page 11 ONE-YEAR LIMITED WARRANTY This GENARAY product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. Genaray’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at Genaray’s discretion, of any product...
- Page 12 SpectroLED - USER MANUAL...
