SQ-60 / TW-120
Square 60 / Twin 120
BI-COLOR LED PANELS
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Square 60 and is the answer not in the manual?

Questions and answers

Summary of Contents for Genaray Square 60

  • Page 1 SQ-60 / TW-120 Square 60 / Twin 120 BI-COLOR LED PANELS USER MANUAL...
  • Page 2 THANK YOU FOR CHOOSING GENARAY The Genaray Square 60 and Twin 120 Bi-Color LED Panels are bright, soft, and portable lighting tools for photographers and videographers. Change the color temperature and brightness from 2700 to 6500 K for warm to cool tones, and 0% to 100% for dim to brightly lit photos.
  • Page 3 Genaray will not be responsible · Keep this unit away from water and any for any damage. flammable gases or liquids.

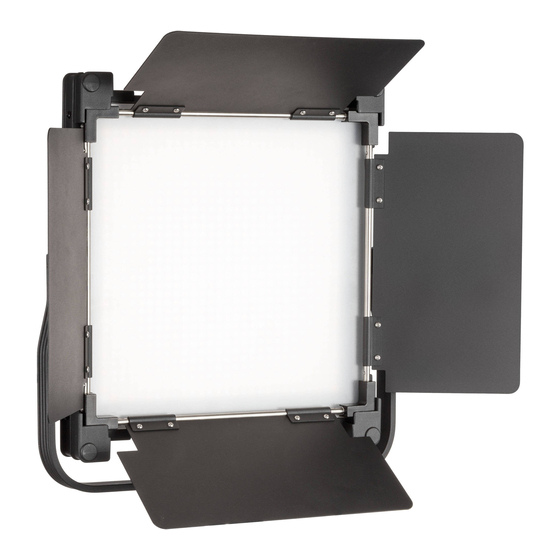

  • Page 4 Light Fixture - Front Barndoors Locking tabs PRODUCT OVERVIEW LED array/ Soft panel Yoke Mount locking knob 5/8 in. receiver Square / Twin Bi-Color LED Panels - USER MANUAL...
  • Page 5 Light Fixture - Back D-tap output power socket V-mount battery plate Tilt adjustment knob V-mount release button 5-pin DMX Selector switch output socket 5-pin DMX Power switch input socket 4-pin XLR power socket Setting buttons Square / Twin Bi-Color LED Panels - USER MANUAL...
  • Page 6 CONTENTS INCLUDE MOUNTING THE LED PANEL · LED panel with yoke Mount the light on a heavy-duty light stand with a 5/8-inch baby pin, and turn the · V-mount AC adapter with 4-pin XLR locking knob until secure. connector Remove the locking knob to mount the light ·...
  • Page 7 POWERING THE LED PANEL The light can be powered directly from Slide the V-mount AC power adapter into an AC outlet or by a V-mount battery (not the V-mount plate until it clicks. Connect the included). 4-pin XLR connector to the 4-pin XLR power socket, and plug the power cable into the AC adapter and an outlet.
  • Page 8: User Interface

    USER INTERFACE BATTERY POWER Open the barndoors and turn on the light. The LCD will show the last setting that was The light can be powered by a V-mount used. battery. When attaching the battery, make sure the power switch is in the Off position, and the fixture is not plugged into a wall outlet.
  • Page 9: Setting Buttons

    SETTINGS SETTING BUTTONS Press one of the setting buttons to enter the setting. INT: 29% SELECTOR SWITCH CCT:2700K Rotate the selector switch to adjust the value of the highlighted setting. Press the selector switch to toggle the highlighted setting. This is necessary only if there are multiple settings on a page.
  • Page 10 CCT: Adjusts the color temperature from 2700 to 6500 K in 100 K increments. SPEED: Adjusts the speed of the lighting effect from 0% to 100%. MODE:Lightning 1/11 INT: 10% EFFECTS Lightning: Simulates lightning with short CCT:2700K bursts of light. SPEED: Fireworks: Simulates the effect of fireworks with pulses of color and white light.
  • Page 11 Fault Light: Simulates a faulty light with inconsistent flickering. Language Turn Signal: Simulates the blinking turn Language:English signal of a car. Tracing: Outputs one flash followed by two Ver1.2 quick flashes. Screen: Simulates the changing brightness of a TV screen. H&L Beam: Outputs alternating high- and low intensity flashes.
  • Page 12 APP/2.4G Addr.:238 Addr.: DMX – DMX CHANNEL 2.4G - REMOTE CHANNEL Addr: Changes the DMX channel from 01 Addr: Adjusts the wireless remote channel to 512. from 1 to 12, and RMT_OFF (remote off). Note This feature is not yet available and will be released in a future update.
  • Page 13 REMOVING THE BARNDOORS USING DMX The barndoors come attached. To remove The light supports DMX-512 so the light’s them, press down on the frame’s top two settings can be remotely controlled from a corners until the barndoor is free from the DMX lighting control console.
  • Page 14: Product Specifications

    PRODUCT SPECIFICATIONS SQ-60 Mount: 5/8 in. baby pin, convertible to 1 ⁄ in. junior pin LED count: 896 Power supply output: 15V⎓4.8A; 72 W Color temperature: 2700 (±150) to 6500 K (±300 K) Cable length: 12.8 ft. (3.9 m) Luminance: 2670 lx @ 3 ft. 2230.5 lx @ 1 m Dimensions (H ×...
  • Page 15 TW-120 Power supply output: 15V⎓10A; 150 W LED count: 1792 Cable length: 12.8 ft. (3.9 m) Color temperature: 2700 (±150) to 6500 K (±300 K) Dimensions (H × W × D): Light only: 13.1 × 21.4 × 3.1 in. (33.4 × 54.3 × 7.9 cm) Luminance: 5270 lx @ 3 ft.
  • Page 16 ONE-YEAR LIMITED WARRANTY This Genaray product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. Genaray’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at Genaray’s discretion, of...
