DECT IP Multi-Cell Deployment ToolKit Quick Start Guide Contents Overview Package Contents Adjusting the Stand Height Setting up the Measuring Base Station Setting up the Measuring Handset Using the Measuring Handset Configuring the Metering Mode Taking Measurements... -
Page 2: Overview

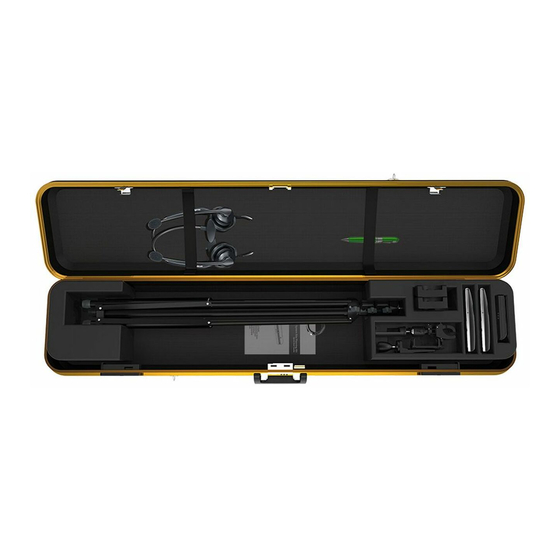

Overview The Yealink DECT IP multi-cell deployment toolkit helps you plan and install your DECT IP multi-cell system. It contains one measuring base station, two measuring handsets and further helpful accessories for exact determination of the DECT environmental conditions for the planned network. -
Page 3: Adjusting The Stand Height
Adjusting the Stand Height Note: The stand height can be adjusted from 3.28 feet (1.00 meter) to 9.19 feet (2.80 meters). Setting up the Measuring Base Station 1. Mount the measuring base station on the stand Deployment Toolkit Position the thread of the base station clip on the stand and screw the base station clip into place. Fix the base station on the base station clip. - Page 4 2. Charge the base station Range: 2.05-3.94 inch Maximum thickness: 0.59 inch Deployment Toolkit (Measuring Base Station) Mobile Power Adjust the angle Fix the mobile power clip on the top section of the stand. Fix the mobile power on the mobile power clip. Note: You need to purchase the mobile power separately.
- Page 5 2. Connect the charging cradle and charge the handset. Note: Use Yealink supplied power adapter (5V/600mA). A third-party power adapter may damage the handset. Determine whether to charge the handset according to the battery status on the top-right corner of the LCD screen.
-
Page 6: Using The Measuring Handset
Using the Measuring Handset The idle screen The LCD screen shows the following information in the idle screen: Indicates the signal strength between the base station and registered handset. Weak to strong: No reception: Indicates the current battery status. Low to full: Need charging: (red) Values for determining the connection quality:... -
Page 7: Configuring The Metering Mode
Configuring Metering Mode The measuring handsets are already in the metering mode out of the box. Note: The handset backlight is always on in the metering mode, so the screensaver does not work. To change the settings for metering mode: 1. - Page 8 As one of the best providers in more than 140 countries and regions including the US, the UK and Australia, Yealink ranks No.1 in the global market share of SIP phones shipments.
