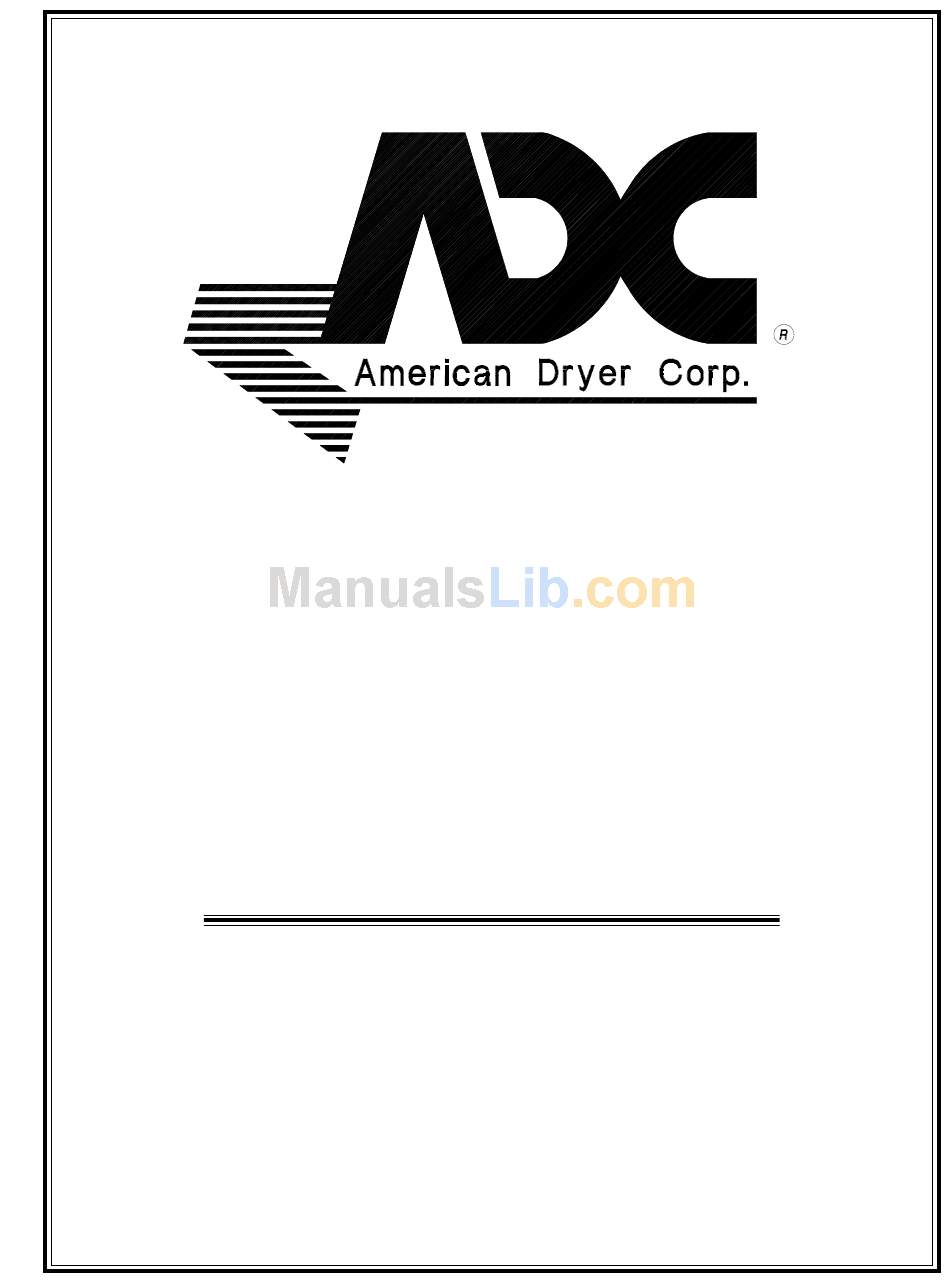

ML-75 Parts Manual
24 VAC Phase 6
1997/1998
American Dryer Corporation
88 Currant Road
Fall River, MA 02720-4781
Telephone: (508) 678-9000 / Fax: (508) 678-9447
E-mail: techsupport@amdry.com
www.amdry.com
112697SL/abe
ADC Part No. 450173

Advertisement

Table of Contents
loading

Related Manuals for ADC ML-75

Summary of Contents for ADC ML-75

  • Page 1 ML-75 Parts Manual 24 VAC Phase 6 1997/1998 American Dryer Corporation 88 Currant Road Fall River, MA 02720-4781 Telephone: (508) 678-9000 / Fax: (508) 678-9447 E-mail: techsupport@amdry.com www.amdry.com 112697SL/abe ADC Part No. 450173...
  • Page 2 We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or discontinue models.

  • Page 3: Table Of Contents

    Table of Contents Control Door Assembly ... 2 Phase 6 OPL Microprocessor Control Panel Assembly ... 3 Microprocessor Control Box Assembly ... 4, 5 Front Panel/Main Door Assemblies For Models Mfd. as of October 24, 1997 ... 6, 7 Front Panel/Main Door Assemblies For Models Mfd.

  • Page 4: Control Door Assembly

    Illus. No. Part No. Qty. Description 112366 Logo ONLY 881691 Control Door Assembly (includes illus. nos. 2, 3, 7, and 8) For Models Mfd. as of October 24, 1997 881045 Control Door Assembly (includes illus. nos. 2, 3, 7, and 8) For Models Mfd.

  • Page 5: Phase 6 Opl Microprocessor Control Panel Assembly

    Phase 6 OPL Microprocessor Control Panel Assembly Illus. No. Part No. Qty. Description 112537 Phase 6 OPL Keyboard 112276 OPL Stick-on Labels (English Only) ... Not Illustrated 112275 OPL Stick-On Labels (Spanish, Italian, and Hebrew) ... Not Illustrated 112277 3 Language OPL Stick-On Labels (ENGLISH, SPANISH, and HEBREW) ...
  • Page 6 Microprocessor Control Box Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 7: Microprocessor Control Box Assembly

    Microprocessor Control Box Assembly Illus. No. Part No. Qty. Description 881790 Burner Control Wiring 881789 Basket (tumbler) Hi-Limit Temperature Sensor Harness 881637 Sail Switch Hi-Limit Harness 881788 Power Control Harness (for non-reversing gas models Only) 881787 Power Control Harness (for reversing gas models Only) 881786 Power Control Harness (for reversing steam models Only)
  • Page 8 Front Panel/Main Door Assemblies For Models Mfd. as of October 24, 199T American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 9: Front Panel/Main Door Assemblies

    Front Panel/Main Door Assemblies For Models Mfd. as of October 24, 1997 Illus. No. Part No. Qty. 881871 881697 102214 170730 882411 170730 881689 881738 881684 881756 881806 881807 881740 881739 881688 881737 881685 881757 150120 151012 151014 170330 154215 150443 881440 881736...

  • Page 10: Front Panel/Main Door Assemblies

    Illus. No. Part No. Qty. Description 881741 White Main Door Handle 881760 Blue Main Door Handle 151011 5/16-18 Acorn Nut 881552 White Main Door ONLY 881550 Blue Main Door ONLY 881816 White Main Door Assembly (includes illus. nos. 1 through 7) 881820 Blue Main Door Assembly (includes illus.

  • Page 11: Main Door Switch

    Main Door Switch For Models Mfd. as of October 24, 1997 Illus. No. Part No. Qty. Description 150006 #6-32 x 7/8” Phillips Pan Head Machine Screw 152013 #6-32 Hex Nut 1/4” ATF 153010 #6 Star Washer 137005 Single Pole Door Switch 150443 1/4-20 x 3/4”...

  • Page 12: Main Door Switch

    Illus. No. Part No. Qty. Description 150006 #6-32 x 7/8” Phillips Pan Head Machine Screw 152013 #6-32 Hex Nut 1/4” ATF 153010 #6 Star Washer 137005 Single Pole Door Switch 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 881726 White Main Door Switch Housing ONLY 881698 White Main Door Switch with Housing Assembly...

  • Page 13: Drop Lint Door Assembly

    Drop Lint Door Assembly Illus. No. Part No. Qty. Description 800150 Knob Latch Kit Assembly (includes illus. nos. 1 through 3) 160009 Knob Latch Adjustable Cam ONLY 150425 #12-24 x 3/8” Round Head Machine Screw ONLY (screw for knob latch adjustable cam) 157000 Drop Lint Door Spring 881692...

  • Page 14: Lint Trap Assembly

    Illus. No. Part No. Qty. Description 800420 Non-Reversing Lint Trap Assembly Complete (includes illus. nos. 1, 3, 4, and 5) 800421 Non-Reversing Lint Trap ONLY 800422 Reversing Lint Trap Assembly Complete (includes illus. nos. 1, 3, 4, and 5) 800423 Reversing Lint Trap ONLY 154200 5/32”...

  • Page 15: For Steam Models With 10" Exhaust

    Lint Trap Assembly For Steam Models with 10” Exhaust Illus. No. Part No. Qty. Description 800440 Non-Reversing Lint Trap Assembly Complete (includes illus. nos. 1, 3, 4, and 5) 800433 Non-Reversing Lint Trap ONLY 800441 Reversing Lint Trap Assembly Complete (includes illus.

  • Page 16: Basket (Tumbler)/Support Assemblies

    Illus. No. Part No. Qty. Description 881780 Basket (tumbler) ONLY 881783 1-3/4” Non-Reversing Basket (tumbler) and Support Assembly Complete (includes illus. nos. 1 through 12) 881782 1-3/4” Reversing Basket (tumbler) and Support Assembly Complete (includes illus. nos. 1 through 12) 150413 #10-16 x 1/2”...

  • Page 17: Microprocessor Sensor Bracket Assembly

    Microprocessor Sensor Bracket Assembly Illus. No. Part No. Qty. Description 880251 1/4” Temperature Sensor Probe Assembly Complete (includes illus. nos. 1 and 5 through 8) 130103 225º Large Automatic Thermostat ONLY 153010 #6 Star Washer 152000 #6-32 Hex Nut 121028 Insulated Terminal ONLY 122701 Socket Terminal ONLY...

  • Page 18: Tumbler Bearing Assembly

    Illus. No. Part No. Qty. Description 880220 1-3/4” Flange Bearing with Nylock Setscrew 153025 9/16” Lock Washer 152050 9/16-12 Hex Nut 150508 3/8-16 x 3/4” Hex Head Machine Bolt 153005 3/8” Lock Washer 152005 3/8-16 Hex Nut 150600 3/8-16 x 1-1/2” Hex Head Machine Bolt 153004 3/8”...
  • Page 19 Tumbler Bearing Assembly Illus. No. Part No. Qty. Description 150501 5/16-18 x 3/4” Hex Head Machine Bolt 153002 5/16” Lock Washer 153001 5/16” Flat Washer 150621 5/16-18 x 1-1/2” Hex Head Machine Bolt 152004 5/16-18 Hex Nut 801107 1-3/8” Bearing Box Magnetic Sensor Assembly Complete (includes illus.

  • Page 20: Idler Bearing Assembly

    Idler Bearing Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 21: Idler Bearing Assembly

    Idler Bearing Assembly Illus. No. Part No. Qty. Description 100106 5L-690 V-Belt (basket [tumbler] to idler) 101140 14” x 3” Compound Pulley 100117 4L-620 V-Belt (idler to motor) For Non-Reversing Models ONLY 100114 4L-630 V-Belt (idler to motor) For Reversing Models ONLY 154301 5/16-18 x 1”...
  • Page 22 Illus. No. Part No. Qty. Description 100117 4L 620 V-Belt (motor to idler) 100701 3/16” x 3/16” x 1” Key 101133 5/8” x 2-1/4” Motor Pulley (60 Hz Only) 101130 5/8” x 2-1/2” Motor Pulley (50 Hz Only) 150501 5/16-18 x 3/4” Hex Head Machine Bolt 153002 5/16”...

  • Page 23: Non-Reversing T.e.f.c. Motor Mount Assembly

    Non-Reversing T.E.F.C. Motor Mount Assembly Illus. No. Part No. Qty. Description 153002 5/16” Lock Washer 153001 5/16” Flat Washer 117600 Noise Suppressor Tape (sold by the foot) 154000 5/16-18 Tinnerman Nut 800919 Non-Reversing Motor Mount ONLY (56Z frame) 803992* 1 HP 120/230v 1ø 60 Hz Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly with Plug Complete (includes illus.

  • Page 24: Reversing T.e.f.c. Motor Mount Assembly

    Reversing T.E.F.C. Motor Mount Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 25: Reversing T.e.f.c. Motor Mount Assembly

    Reversing T.E.F.C. Motor Mount Assembly Illus. No. Part No. Qty. Description 100114 4L-630 V-Belt (motor to idler) 100701 3/16” x 3/16” x 1” Key 101130 5/8” x 2-1/2” Motor Pulley (60 Hz Only) 101139 5/8” x 2-3/4” Motor Pulley (50 Hz Only) 120200 3/8”...

  • Page 26: Direct Spark Ignition (Dsi) Burner Assembly

    Illus. No. Part No. Qty. Description 809716 Natural Gas Burner Assembly Complete (includes illus. nos. 1 through 32 For Models Manufactured Natural Gas ONLY 809717 Liquid Propane (L.P.) Gas Burner Assembly Complete (includes illus. nos. 1 through 32) For Models Manufactured with Liquid Propane (L.P.) Gas ONLY 810047 Burner Box ONLY 881231*...

  • Page 27: Direct Spark Ignition (Dsi) Burner Assembly

    Direct Spark Ignition (DSI) Burner Assembly Illus. No. Part No. Qty. Description 128927 1/2” 24 VAC Redundant (natural gas) Gas Valve 880960 1/2” 24 VAC Direct Spark Ignition (DSI) Liquid Propane (L.P.) Gas Valve Assembly 150309 #10-16 x 1/2” Hex Head TEK Crimptite Screw 142506 1/2”...

  • Page 28: Hot Surface Ignition (Hsi) Burner Assembly

    Illus. No. Part No. Qty. Description 881781* Natural Gas Burner Assembly Complete Less Orifices (includes illus. nos 1 through 9 and 11 through 31) For Models Manufactured with Natural Gas ONLY 881784* Liquid Propane (L.P.) Gas Burner Assembly Complete Less Orifices (includes illus.
  • Page 29 Hot Surface Ignition (HSI) Burner Assembly Illus. No. Part No. Qty. Description 323013 Burner Box Shield/Front ONLY (for models mfd. as of October 5, 1998) 318041 Burner Box Front ONLY (for models mfd. prior to October 5, 1998) 150309 #10-16 x 1/2” Hex Head TEK Crimptite Screw 810029 Hot Surface Ignition (HSI) Module Mounting Bracket 881797...

  • Page 30: Electric Oven Assembly

    Electric Oven Assembly ELECTRIC OVEN (FRONT VIEW) ELECTRIC OVEN (REAR VIEW) American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...
  • Page 31 Electric Oven Assembly Illus. No. Part No. Qty. Description 803005 Large Electric Oven Box ONLY ---------* Electric Oven Assembly Complete ---------* Electric Element 150300 #10-16 x 1/2” Hex Washer TEK PLTD 802800 Sail Switch Box with Bracket and Cover ONLY 802801 Sail Switch Box Assembly Complete (includes illus.

  • Page 33: Air Operated Steam Damper Assembly

    Air Operated Steam Damper Assembly Illus. No. Part No. Qty. Description 165009 Steam Coil Assembly 153002 5/16” Lock Washer 152004 5/16-18 Hex Nut 152002 1/4-20 Hex Nut 153007 1/4” Lock Washer 820321 Steam Damper Hinge Assembly 803415 Steam Damper Assembly (includes illus.

  • Page 35: Single-Phase (1Ø) Motor, Electric Relay Panel Assembly

    Single-Phase (1ø) Motor, Electric Relay Panel Assembly Illus. No. Part No. Qty. Description 137015 RC Network 151000 #6-32 Pal Nut 150300 #10-16 x 1/2” Hex Washer TEK PLTD 150008 #6-32 x 1-1/4” Phillips Round Head Machine Screw 120716 2-Position Terminal Block 306304 Electric Relay Panel Mounting Plate ONLY 881751...

  • Page 37: 3-Phase (3Ø) Motor, Non-Reversing Electric Relay Panel Assembly

    3-Phase (3ø) Motor, Non-Reversing Electric Relay Panel Assembly Illus. No. Part No. Qty. Description 137015 RC Network 151000 #6-32 Pal Nut 150300 #10-16 x 1/2” Hex Washer TEK PLTD 150008 #6-32 x 1-1/4” Phillips Round Head Machine Screw 120701 4-Position Terminal Block 322812 Electric Relay Panel Mounting Plate ONLY 881800...

  • Page 39: 3-Phase (3Ø) Motor, Reversing Electric Relay Panel Assembly

    3-Phase (3ø) Motor, Reversing Electric Relay Panel Assembly Illus. No. Part No. Qty. Description 137060 Arc Suppressor (A.S.) Board 137013 Nylon Standoff 150300 #10-16 x 1/2” Hex Washer TEK PLTD 150008 #6-32 x 1-1/4” Phillips Round Head Machine Screw 120701 4-Position Terminal Block 132448 Reversing Contactor (208/230/240/380/460 volt) 24 VAC...

  • Page 40: Sail Switch Assembly

    Illus. No. Part No. Qty. Description 319203 Sail Switch Mounting Bracket 319202 Sail Switch Damper (flat) 319201 Sail Switch Box Cover 319200 Sail Switch Box 154004 Twin Speed Nut 154002 1/8" Push On Fastener 150309 #10-16 x 1/2" Hex Head TEK Crimptite Screw 150303 #4 x 3/4"...

  • Page 41: Back Guard Assemblies

    Back Guard Assemblies For Gas and Electric Models ONLY Illus. No. Part No. Qty. Description 314514 Bottom Back Guard 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 322809 Rear Electrical Box Cover 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 103500 Leveling Leg 150301...

  • Page 42: Back Guard Assembly

    Illus. No. Part No. Qty. Description 314511 Bottom Back Guard 150300 #10-16 x 1/2” Hex Washer TEK PLTD 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 322809 Rear Electrical Box Cover 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 103500 Leveling Leg American Dryer Corporation...
  • Page 43 ø 3 ø 3 ø 3 ø 3 ø 3 ø 3 ø 3 ø 3 ø 3 ø 3 ø 3 ø 3 ø 3 ø 3 ø 3 ø 1 ø 1 ø 3 * Oven assembly complete does not include oven relay. This item must be ordered separately. When ordering Oven Assembly Complete, specify 3 wire or 4 wire when applicable, as well as if dryer has Microprocessor or non-Microprocessor controls.

  • Page 44: Step Down Transformer Usage Listing

    OW N OLTAGE 120/208/240 208-240 460/480 460/480 NOTE: Each transformer requires one (1) Transformer Termination Kit (ADC Part No. 881763). American Dryer Corporation Step Down Transformer Usage Listing RANSFORM ER ADC P ERVICE 132070 3 or 4 132082 132082 132082...

  • Page 45: Additional Parts Available

    Additional Parts Available Part No. Description 112039 “Black/White/Green Ground” Label 112280 “Clean Lint Screen” Label 112284 “Phase 6 OPL Program Location Summary” Label 114001 “CAUTION-Exhaust/Lint Screen” Label 114006 “WARNING - Fire Hazards” Label 120100 3/8” Straight (BX) Connector 120300 3/8” x 45° (BX) Connector 120400 3/8”...
  • Page 46 ADC 450173 1 - 01/26/98-50 4 * 09/11/00-25 2 * 02/25/98-50 3 * 05/09/00-50 5 * 03/22/01-25 6 * 05/23/01-25...
