Instruction Manual
Over the last 60 years, Omcan has grown to become a leading supplier to the food
service industry in Canada and the USA. Our success over these many years is
directly attributed to our established relationships with all of our valued customers
and through providing them with Diverse, Dependable and Proven products.
Omcan continues to help our customers remain competitive.
With associates in North America, Europe, and Asia, our global footprint continues
to expand as we hold to the principle that clients benefi t from the accessibility
and familiarity of our sales team. In 2013 as our geography and brand recognition
continued to grow, we changed to one name Omcan Food Machinery.
In over 200,000 sq ft of warehouse space we stock over 2,500 quality food
equipment and supplies for the food preparation market.

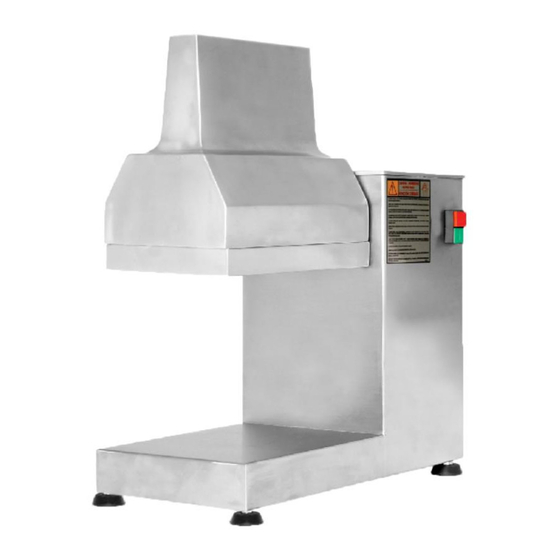

Meat Tenderizer
Model ABN-HD
Instruction Manual
3115 Pepper Mill Court, Mississauga, ON, L5L 4X5
1889 Maryland Avenue, Niagara Falls, NY, 14305
1-800-465-0234
www.omcan.com
Advertisement
Table of Contents
Related Manuals for Omcan ABN-HD
Summary of Contents for Omcan ABN-HD
- Page 1 Over the last 60 years, Omcan has grown to become a leading supplier to the food service industry in Canada and the USA. Our success over these many years is Meat Tenderizer directly attributed to our established relationships with all of our valued customers Model ABN-HD and through providing them with Diverse, Dependable and Proven products.
-
Page 2: Table Of Contents
Table of Contents Model ABN-HD Section Page General Information -------------------------------------------------------------------------------- 3 Safety & Warranty ------------------------------------------------------------------------------ 3 - 4 Technical Specifi cations ---------------------------------------------------------------------- 5 - 6 Installation -------------------------------------------------------------------------------------------- 6 Operation ----------------------------------------------------------------------------------------- 7 - 9 Maintenance ---------------------------------------------------------------------------------------- 10 Troubleshooting ------------------------------------------------------------------------------------ 11 Parts Breakdown... -
Page 3: General Information
If not properly handed, the ABN-HD is a machine potentially dangerous. At no time should you put your hand inside the protection Lid (Picture 4, # 1.) through its upper opening. Any movable part, to clean it or for other maintance purposes, shall only be withdrawn by skilled and dully trained people. - Page 4 Do not let water, dirt or dust get into the Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at mechanical or electrical components of the unit.
-
Page 5: Technical Specifi Cations
Technical Specifi cations 1. Protection Lid 1. Rollers Extractor 2. Rollers Support 2. Rollers 3. Motor Cabinet Cover 4. Motor Cabinet 5. ON/OFF Switch 1. Safety Switch 1. Protection Lid 2. ON/OFF Switch 3. Motor Cabinet... -
Page 6: Installation
The ABN-HD has a Safety Switch (Pic. 3, #1) to switch the machine OFF as soon as the Protection Lid (Pic. 4, #1) is lifted. The ABN-HD is a table top machine with the ability to process various diff erent kinds of meat. -
Page 7: Operation
Lid (Pic. 4, #1) MUST be fi tted properly before every use. To start the machine press the ON/OFF Switch (Pic. 4, #2) placed on the cabinet side. Model ABN-HD has a safety switch that does not allow the machine to work UNDERVOLTAGE without the Protection Lid (Pic. -
Page 8: Operation
ETIQ.SENTIDO TAMPA ABN-HD 32021.8 CABLE 3X1.0MM WITH PLUG 17898.5 PORCA DOS ROLOS ABN-HD 32613.5 SCREW M8X40 DIN 933 SS 18351.2 ANEL TRAS. ROLO 1 ABN-HD 32614.3 CONTACTOR 110V 50/60HZ 18450.0 ANEL TRAS. ROLO 2 ABN-HD 32615.1 FIO ELETR.PRETO 1x380mm 18554.0 ANEL DIANT. - Page 9 Parts Breakdown Operation Model ABN-HD 1. Rollers Extractor 1. Roller 1. Roller RECOMMENDATIONS Make sure your hair is tied up to avoid getting caught by turning parts which could lead to serious injury. The operation must be a trained or skilled personnel. Never touch turning parts with your hands or with any other...
-
Page 10: Maintenance
The ABN-HD was designed to operate with minimal maintenance but wearing caused by long use may cause some malfunctions. If such problem occurs with your ABN-HD refer to the below table for the most common situations and their recommended solutions.
