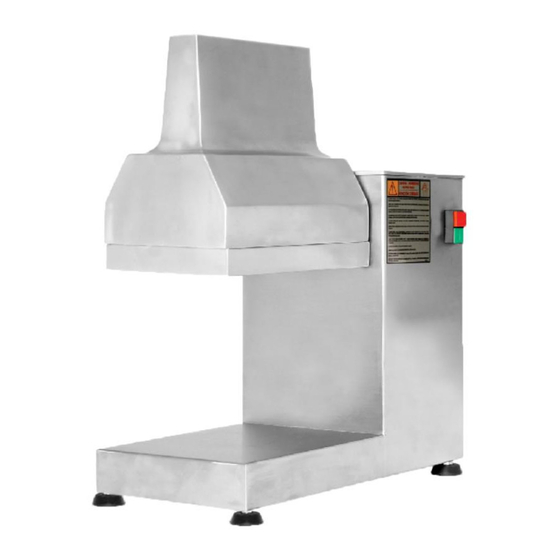

- Page 1 Meat Tenderizer Model ABN-HD Instruction Manual Version 1.1 3115 Pepper Mill Court, Mississauga, ON, L5L 4X5 1-800-465-0234 4450 Witmer Industrial Estates, Unit 4, Niagara Falls, NY, 14305 www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model ABN-HD Section Page General Information -------------------------------------------------------------------------------- 3 Safety & Warranty ------------------------------------------------------------------------------ 3 - 4 Technical Specifications ---------------------------------------------------------------------- 5 - 6 Installation -------------------------------------------------------------------------------------------- 6 Operation ----------------------------------------------------------------------------------------- 7 - 9 Maintenance ---------------------------------------------------------------------------------------- 10 Troubleshooting ------------------------------------------------------------------------------------ 11 Parts Breakdown... -
Page 3: General Information
If not properly handled, the ABN-HD is potentially DANGEROUS. At no time should you put your hand inside the Protection Lid (Pic. 4, #1) through its upper opening. Any movable part shall only be disassembled by trained personnel for cleaning or maintenance. - Page 4 Safety and Warranty procedure have to be fully understood by the operator. Any manual command shall be done only if the operator is certain it is the correct one. In the case of a power shortage, immediately turn the machine OFF. Only use recommended or equivalent lubricants, oils or greases when servicing the unit.
-
Page 5: Technical Specifications
Technical Specifications 1. Protection Lid 1. Rollers Exterior 2. Rollers Support 2. Rollers 3. Motor Cabinet Cover 4. Motor Cabinet 5. ON/OFF Switch 1. Safety Switch 1. Protection Lid 2. ON/OFF Switch 3. Motor Cabinet... -
Page 6: Installation
Technical Specifications The ABN-HD has a Safety Switch (Pic. 3, #1) to switch the machine OFF as soon as the Protection Lid (Pic. 4, #1) is lifted. The ABN-HD is a table top machine with the ability to process various different kinds of meat. -
Page 7: Operation
Rollers (Pic. 12, #1) have completely stopped before to lifting the Protection Lid (Pic. 4, #1). The Protection Lid (Pic. 4, #1) MUST be fitted properly before every use. To start the machine press the ON/OFF Switch (Pic. 4, #2) placed on the cabinet side. Model ABN-HD has a safety switch that does not allow the machine to work without the Protection Lid (Pic. 4, #1). - Page 8 Operation REMOVING AND REPLACING THE ROLLERS Removing the Rollers requires the full attention from the operator to avoid possible accidents. • Lift the Protection Lid (Pic. 1, #1). • Draw the Rollers key (Pic. 7, #1). • Lift the Rollers Extractor (Pic. 8, #1), first the backside, bending it to come out from the Rollers Support (Pic. 8, #2), then place the Rollers Extractor (Pic. 9, #1) on a leveled surface. • Observe that each Roller has on its backside figure indicating its right position into the Rollers Support (Pic.
- Page 9 Operation 1. Rollers Extractor 1. Roller 1. Roller RECOMMENDATIONS Make sure your hair is tied up to avoid getting caught by turning parts which could lead to serious injury. The operation must be a trained or skilled personnel. Never touch turning parts with your hands or with any other objects.
-
Page 10: Maintenance
Maintenance AFTER FINISHING THE WORK After every operation, TURN THE MACHINE OFF by switching the machine OFF and removing the plug from the socket before cleaning the machine. Never clean the machine unless it has come to a complete stop. Put all components back to their functional positions before turning it ON again. -
Page 11: Troubleshooting
The ABN-HD was designed to operate with minimal maintenance but wearing caused by long use may cause some malfunctions. If such problem occurs with your ABN-HD refer to the below table for the most common situations and their recommended solutions. -
Page 12: Parts Breakdown
Parts Breakdown Model ABN-HD 17847... - Page 13 Parts Breakdown Model ABN-HD 17847...
-
Page 14: Parts Breakdown
Parts Breakdown Model ABN-HD 17847 Item Item Diagram Item Description Diagram No. Description Description Diagram No. NUT M3 DIN 934 S/S 12853.8 SCREW 00654.8 SCREW M8X16 13238.1 WASHER L.A3.2 DIN 125 S/S 17181.6 CRAMP T 18R SMALL 04203.0 SCREW M5X10 DIN 933 SS 21081.1... -
Page 15: Electrical Schematics
Electrical Schematics Model ABN-HD 17847... -
Page 17: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: www.omcan.com/warrantyregistration.html For mailing in Canada For mailing in the US OMCAN INC. OMCAN PRODUCT WARRANTY REGISTRATION... - Page 20 Over the last 60 years, Omcan has grown to become a leading supplier to the food service industry in Canada and the USA. Our success over these many years is directly attributed to our established relationships with all of our valued customers and through providing them with Diverse, Dependable and Proven products.
