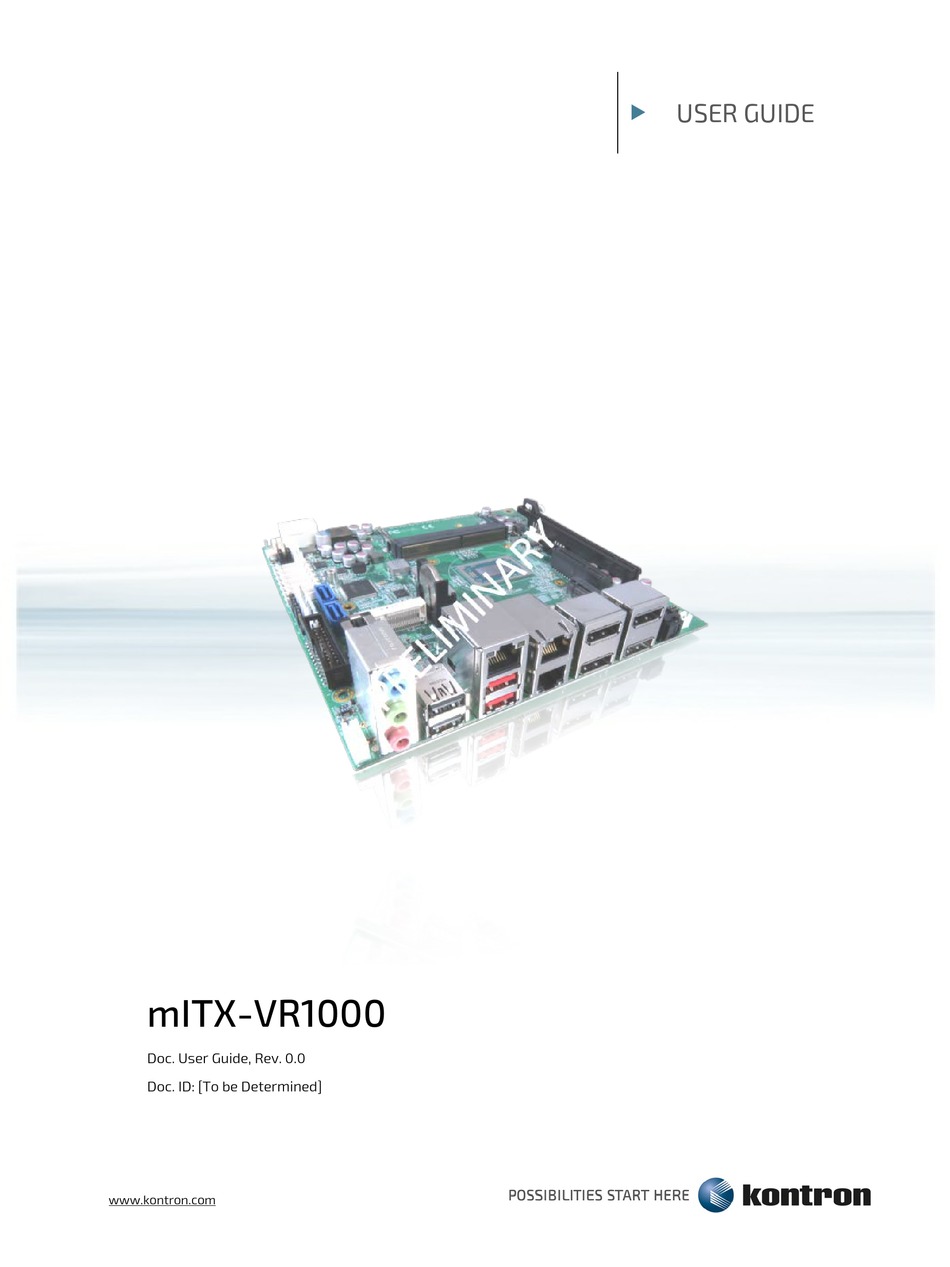

USER GUIDE
mITX-VR1000
Doc. User Guide, Rev. 0.0
Doc. ID: [To be Determined]
www.kontron.com
// 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mITX-VR1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kontron mITX-VR1000

Summary of Contents for Kontron mITX-VR1000

  • Page 1  USER GUIDE mITX-VR1000 Doc. User Guide, Rev. 0.0 Doc. ID: [To be Determined] www.kontron.com // 1...
  • Page 2 - User Guide, Rev. 0.0 This page has been intentionally left blank www.kontron.com // 2...
  • Page 3 In cases of doubt, please contact Kontron. This user guide is protected by copyright. All rights are reserved by Kontron. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the express written permission of Kontron.
  • Page 4 ENVIRONMENTAL DAMAGE (COLLECTIVELY, "HIGH RISK APPLICATIONS"). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.
  • Page 5 If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact Kontron support. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user guide on our website.

  • Page 6: Symbols

    - User Guide, Rev. 0.0 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 7: For Your Safety

    Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines.

  • Page 8: Lithium Battery Precautions

    General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty.

  • Page 9: Table Of Contents

    - User Guide, Rev. 0.0 Table of Contents Symbols ..........................................6 For Your Safety ........................................7 High Voltage Safety Instructions .................................. 7 Special Handling and Unpacking Instruction ............................7 Lithium Battery Precautions ..................................8 General Instructions on Usage ..................................8 Quality and Environmental Management ..............................

  • Page 10: List Of Tables

    - User Guide, Rev. 0.0 7.8. Serial COM1 - COM2 Ports (CN1 & CN4) ............................40 7.9. LVDS Panel Connector (CN30) ................................42 7.10. Backlight Power Output Wafer for LVDS1 (CN20) ........................44 7.11. Feature Connector (GPIO Internal Connector) (CN2) ........................45 7.12.

  • Page 11: List Of Figures

    Table 41: Pin Assignment JP6 ..................................60 Table 42: Pin Assignment JP7 ..................................61 List of Figures Figure 1: System Block Diagram mITX-VR1000 ............................16 Figure 2: Top Side ......................................21 Figure 3: Bottom Side ..................................... 23 Figure 4: Connector Panel Side ................................... 24 Figure 5: DC Jack J1 ......................................

  • Page 12: 1/ Introduction

    - User Guide, Rev. 0.0 1/ Introduction This user guide describe the mITX-VR1000 board made by Kontron. This board will also be denoted mITX-VR1000 within this user guide. Use of this user guide implies a basic knowledge of PC-AT hardware and software. This user guide focuses on describing the mITX-VR1000 board's special features and is not intended to be a standard PC-AT textbook.

  • Page 13: 2/ Installation Procedures

     Handle the board only by the edges To get the board running follow these steps. If the board shipped from KONTRON already has components like RAM and CPU cooler mounted, then skip the relevant steps below. Turn off the PSU (Power Supply Unit) Turn off PSU (Power Supply Unit) completely (no mains power connected to the PSU) or leave the Power Connectors unconnected while configuring the board.

  • Page 14: 2.2. Chassis Safety Standards

    > 7 mm. Do not use washers with teeth, as they can damage the PCB and cause short circuits. 2.2. Chassis Safety Standards Before installing the mITX-VR1000 in the chassis, users must evaluate the end product to ensure compliance with the requirements of the IEC60950-1 safety standard: ...
  • Page 15 - User Guide, Rev. 0.0 apparattillverkaren  Kassera använt batteri enligt fabrikantens instruktion VAROITUS! Paristo voi räjähtää, jos se on virheellisesti asennettu.  Vaihda paristo ainoastaan lalteval- mistajan suosittelemaan tyyppiln  Hävitä käytetty paristo valmistajan ohjeiden mukaisesti www.kontron.com // 15...

  • Page 16: 3/ System Specifications

    - User Guide, Rev. 0.0 3/ System Specifications 3.1. System Block Diagram Figure 1: System Block Diagram mITX-VR1000 www.kontron.com // 16...

  • Page 17: 3.2. Component Main Data

    - User Guide, Rev. 0.0 3.2. Component Main Data The table below summarizes the features of the mITX-VR1000 motherboard. Table 1: Component Main Data System Processor  AMD Embedded V-Series V1000 APU  AMD Embedded R-Series R1000 APU Memory ...

  • Page 18: 3.3. Environmental Conditions

    The mITX-VR1000 is designed to support AMD Ryzen™ Embedded V1000 and R1000 Processors. The BGA APU is remounted from factory. Kontron has defined the board versions as listed in the following table, so far all based on Embedded APUs. Other versions are expected at a later date.

  • Page 19: 3.5. System Memory Support

    Memory modules have in general a much lower longevity than embedded motherboards, and therefore EOL of modules can be expected several times during lifetime of the motherboard. As a minimum it is recommend using Kontron memory modules for prototype system(s) in order to prove stability of the system and as for reference.

  • Page 20: 3.6. On-Board Graphics Subsystem

    – refer to the actual power supply specification. Please note, in order to keep the power consumption to a minimal level, boards do not implement a guaranteed minimum load. The mITX-VR1000 board must be powered through the DC jack using 12V DC power supply.

  • Page 21: 4/ Connector Locations

    - User Guide, Rev. 0.0 4/ Connector Locations 4.1. Top Side Figure 2: Top Side Table 8: Jumper List Item Designation Description See Chapter AT / ATX Power Mode Selection 7.22.1 USB Power Selection 7.22.2 Clear CMOS Selection 7.22.3 Backlight Power Enable Selection for LVDS1 7.22.4...
  • Page 22 - User Guide, Rev. 0.0 Item Designation Description See Chapter BAT2 CR2032 Battery Holder Onboard Buzzer RS-232 / 422 / 485 Port 1 Wafer Feature Connector (GPIO Internal Connector) 7.11 P80 Header RS-232 / 422 / 485 Port 2 Wafer...

  • Page 23: 4.2. Bottom Side

    - User Guide, Rev. 0.0 4.2. Bottom Side Figure 3: Bottom Side Table 10: Bottom Side Internal Connector Pin Assignment Item Designation Description See Chapter SIM1 SIM Card Connector, Push-Push type 7.14 www.kontron.com // 23...

  • Page 24: 4.3. Connector Panel Side

    - User Guide, Rev. 0.0 4.3. Connector Panel Side Figure 4: Connector Panel Side Table 11: Connector Panel Side Connector List Item Designation Description See Chapter CN11 HDMI Port Connector CN12 GbE LAN2 & GbE LAN3 Connector CN13 GbE LAN1 & USB3.0 Port-1, 2 Connector 6.4 &...

  • Page 25: 5/ Connector Definitions

    - User Guide, Rev. 0.0 5/ Connector Definitions The following defined terms are used within this user guide to give more information concerning the pin assignment and to describe the connector's signals. Defined Term Description Shows the pin numbers in the connector...

  • Page 26: 6/ I/O-Area Connectors

    6/ I/O-Area Connectors 6.1. DC Jack (J1) mITX-VR1000 is designed to be supplied from a +12 V DC power supply through this DC jack. Hot plugging any of the power connector is not allowed. Hot plugging might damage the board. In other words, turn off main supply etc. to make sure all the power lines are turned off when connecting to the motherboard.

  • Page 27: Hdmi Connector (Cn11)

    - User Guide, Rev. 0.0 6.2. HDMI Connector (CN11) The HDMI connector is based on standard HDMI type A and compliant with HDMI 1.4. Figure 6: HDMI Connector CN11 Table 13: Pin Assignment HDMI Connector CN11 Signal Description Note...

  • Page 28: Dp Connector (Cn14, Cn15 & Cn16)

    - User Guide, Rev. 0.0 6.3. DP Connector (CN14, CN15 & CN16) The DP (DisplayPort) connector is based on standard DP female port. Models with V1000 APU has 3 DP connectors. Port 3 (CN16) can be replaced with a BOM-optional LVDS (CN30).

  • Page 29: Ethernet Connectors (Cn13 - Lan1 & Cn12 - Lan2, Lan3)

    - User Guide, Rev. 0.0 6.4. Ethernet Connectors (CN13 - LAN1 & CN12 - LAN2, LAN3) Models with V1000 APU support three channels of 10/100/1000 Mbit Ethernet, which are based Intel® I210 controllers, while models with R1000 APU support one channels (LAN1).

  • Page 30: Usb Connectors (I/O Area)

    - User Guide, Rev. 0.0 6.5. USB Connectors (I/O Area) The external I/O connector panel supports one dual USB 2.0 connectors and one dual USB 3.0 connectors. USB3.0 ports are backward compatible with USB2.0. Figure 9: USB 2.0 Connectors CN19 - USB 2.0 Port 4, 5 Table 16: Pin Assignment USB 2.0 Connectors CN19 - USB 2.0 Port 4, 5...

  • Page 31: Figure 11: Usb 2.0 High Speed Cable

    - User Guide, Rev. 0.0 Signal Description USB_D+ USB 2.0 Differential Pair (+) Ground USB_RX- USB 3.0 Rx. Differential Pair (-) USB_RX+ USB 3.0 Rx. Differential Pair (+) Ground USB_TX- USB 3.0 Tx. Differential Pair (-) USB_TX+ USB 3.0 Tx. Differential Pair (+) For HiSpeed rates it is required to use a USB cable, which is specified in USB 2.0 standard:...

  • Page 32: Stack-Up Azalia Audio Phone Jack (Cn17)

    - User Guide, Rev. 0.0 6.6. 3 Stack-up Azalia Audio Phone Jack (CN17) The external I/O connector panel supports one 3.5 mm triple-port Azalia audio phone jack for headset, microphone and audio input devices. The audio output signals are shared with those of the speaker connectors CN18 & CN21.

  • Page 33: 7/ Internal Connectors

    - User Guide, Rev. 0.0 7/ Internal Connectors 7.1. CR2032 Battery Holder (BAT2) Figure 14: CR2032 Battery Holder BAT2 Table 19: Pin Assignment BAT2 Signal Description Battery+ Battery- www.kontron.com // 33...

  • Page 34: Fan Wafers (Fan1 & Fan2)

    - User Guide, Rev. 0.0 7.2. Fan Wafers (FAN1 & FAN2) The CPU FAN Wafer (FAN2) is used for the connection of the FAN for the CPU while the System FAN Wafer (FAN1) for the connection of the FAN for the system.

  • Page 35: Sata (Serial Ata) Port 1 & Port 2 Connector (Sata1 & Sata2)

    - User Guide, Rev. 0.0 7.3. SATA (Serial ATA) Port 1 & Port 2 Connector (SATA1 & SATA2) The SATA connectors supply the data connection for the SATA hard disk and are SATA 3.0 compatible. They are a BOM option to replace M.2 Key B sockets.

  • Page 36: Hdd Power Output Wafer 1 & Wafer 2 (Cn6 & Cn7)

    - User Guide, Rev. 0.0 7.4. HDD Power Output Wafer 1 & Wafer 2 (CN6 & CN7) Figure 17: HDD Power Output Wafer CN6, CN7 Table 22: Pin Assignment CN6, CN7 Signal Note +12V 12 V power supply Ground...

  • Page 37: Speaker Connector (Cn18 & Cn21)

    - User Guide, Rev. 0.0 7.5. Speaker Connector (CN18 & CN21) The Speaker audio-out interface is available through the wafers CN18 and CN21. These outputs are shared with the audio output (Line-out) signals of the audio jack CN17 and front panel pin header FP1.

  • Page 38: Front Panel Pin Header (Fp1)

    - User Guide, Rev. 0.0 7.6. Front Panel Pin Header (FP1) The front panel pin header provides audio output (Line-Out), microphone (Mic-In), USB 2.0 (2 ports), power switch, power LED, storage LED, reset switch signals through the pin header FP1. The audio output signals are shared with those of the speaker connectors CN18 &...

  • Page 39: S/Pdif Out Pin Header (Cn10)

    - User Guide, Rev. 0.0 7.7. S/PDIF Out Pin Header (CN10) The S/PDIF audio output jack is supplied via the internal pin header (CN10). Figure 20: S/PDIF Out Pin Header CN10 Table 25: Pin Assignment CN10 Signal Note SPDIF-O...

  • Page 40: Serial Com1 - Com2 Ports (Cn1 & Cn4)

    - User Guide, Rev. 0.0 7.8. Serial COM1 - COM2 Ports (CN1 & CN4) Figure 21: Serial COM CN1, CN4 Table 26: Pin Assignment CN1, CN4 RS232 Signal RS422 Signal Half Duplex Full Duplex Note RS485 Signal RS485 Signal...
  • Page 41 - User Guide, Rev. 0.0 Signal Description RX+/- Received Data differential pair receives data from the communications link. Power Supply GND signal www.kontron.com // 41...

  • Page 42: Lvds Panel Connector (Cn30)

    - User Guide, Rev. 0.0 7.9. LVDS Panel Connector (CN30) The LVDS connector is based on 30-pole connector type HOMETOM WF30H6-7AJA178 and supports dual channel 24- bit LVDS cable for LCD panel / display. It is a BOM option to replace DisplayPort Port 3 for models with V1000 APU.
  • Page 43 - User Guide, Rev. 0.0 Signal Description TxoutA2+ LVDS Channel A data Lane 2 (+) TxoutB2+ LVDS Channel B data Lane 2 (+) TxoutA3- LVDS Channel A data Lane 3 (-) TxoutB3- LVDS Channel B data Lane 3 (-)

  • Page 44: Backlight Power Output Wafer For Lvds1 (Cn20)

    - User Guide, Rev. 0.0 7.10. Backlight Power Output Wafer for LVDS1 (CN20) Figure 23: Backlight Power Output Wafer CN20 Table 29: Pin Assignment CN20 Signal Note BL_EN** Backlight Enable signal BL_ADJ_PWM Backlight Adjustment PWM (Pulse Width Modulation) signal...

  • Page 45: Feature Connector (Gpio Internal Connector) (Cn2)

    - User Guide, Rev. 0.0 7.11. Feature Connector (GPIO Internal Connector) (CN2) Figure 24: Feature Connector CN2 Table 30: Pin Assignment CN2 Signal Note INTRUDER_ALERT SMB_CLK SLP_S5 SMB_DAT SYS_PWRGD +3.3VRTC +3.3VSB +5VSB FGPIO0 FGPIO1 FGPIO2 FGPIO3 FGPIO4 FGPIO5 FGPIO6 FGPIO7 www.kontron.com...
  • Page 46 - User Guide, Rev. 0.0 Signal Note FGPIO8 FGPIO9 FGPIO10 FGPIO11 FGPIO12 FGPIO13 FGPIO14 FGPIO15 FGPIO16 FGPIO17 EGCLK EGCS# EGAD TMA0 +12V SLP_S3 www.kontron.com // 46...

  • Page 47: Mpcie Socket (Mpcie1)

    - User Guide, Rev. 0.0 7.12. mPCIe Socket (MPCIE1) Full-sized Mini-PCI Express V1.2 socket (MPCIE1). Socket MPCIE1 supports mPCIe, USB2.0 and SIM-card socket. The SIM-card socket makes it possible to use a 3G/4G-wireless modem in this mPCIe slot. The USB does support WAKE function.
  • Page 48 - User Guide, Rev. 0.0 Signal Note Ground Ground +1.5V Ground SMB_CLK PETn0 / SATA_TX-* SMB_DATA PETp0 / SATA_TX+* Ground Ground USB_D- Ground USB_D+ +3.3VSB Ground +3.3VSB LED_WWAN# Ground / NC* LED_WLAN# Reserved LED_WPAN# Reserved +1.5V Reserved Ground Reserved +3.3VSB...

  • Page 49: Ngff M.2 Key B Socket (M2B1)

    7.13. NGFF M.2 Key B Socket (M2B1) The mITX-VR1000 supports M.2 modules in format 2242 / 2280 with Key B. The M.2 specification supports PCIe x2, USB2.0 and SIM interfaces. The SIM interface makes it possible to use a 3G/4G-wireless modem in this M.2 slot. The USB does support WAKE function.
  • Page 50 - User Guide, Rev. 0.0 Signal Note M2B1_RXN UIM RESET* M2B1_RXP UIM CLK* UIM DATA* M2B1_TXN UIM PWR* M2B1_TXP M2B0_RXN M2B0_RXP M2B0_TXN M2B0_TXP PCIE_RST# M2B_CLKREQ# REFCLKN PCIE_WAKE# REFCLKP www.kontron.com // 50...
  • Page 51 - User Guide, Rev. 0.0 Signal Note M2B_SIM_DETECT M2B_RESET# M2B_SUSCLK +3.3V +3.3V +3.3V * These pins are connected to SIM1 SIM Interface directly. www.kontron.com // 51...

  • Page 52: Sim Card Connector (Sim1)

    - User Guide, Rev. 0.0 7.14. SIM Card Connector (SIM1) Figure 27: SIM Card Connector SIM1 Table 33: Pin Assignment SIM1 Signal Description Note UIM_PWR Power +5V or +3.3V UIM_RESET Reset signal UIM_CLK Clock signal Ground UIM_VPP Programming voltage input...

  • Page 53: Pci Express X16 Slot (Pcie2)

    - User Guide, Rev. 0.0 7.15. PCI Express x16 Slot (PCIE2) The mITX-VR1000 supports PCI Express x16 via slot PCIE2 which supports PCIe x8 signal only. Figure 28: PCI Express x16 Slot PCIE2 Table 34: Pin Assignment PEG1 Side B...
  • Page 54 - User Guide, Rev. 0.0 Side B Side A Signal Description Signal Description Ground Reserved +3.3V +3.3 V power Reserved Reserved +3.3V +3.3 V power +3.3VSB +3.3 V standby power +3.3V +3.3 V power WAKE# Link reactivation PERST# PCI Express reset...
  • Page 55 - User Guide, Rev. 0.0 Side B Side A Signal Description Signal Description Ground HSIP7 Receiver Lane 7, Differential pair PRSNT2# Hot plug presence detect HSIN7 Ground Ground Reserved Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground...

  • Page 56: Mpcie Activity Led Pin Header (Cn8)

    - User Guide, Rev. 0.0 7.16. MPCIE Activity LED Pin Header (CN8) Figure 29: MPCIE Activity LED Pin Header CN8 Table 35: Pin Assignment CN8 Signal Note LED+ LED- www.kontron.com // 56...

  • Page 57: Key B Led Pin Header (Cn9)

    - User Guide, Rev. 0.0 7.17. M.2 Key B LED Pin Header (CN9) Figure 30: M.2 Key B LED Pin Header CN9 Table 36: Pin Assignment CN9 Signal Note LED+ LED- www.kontron.com // 57...

  • Page 58: 7.18. Switches And Jumpers

    - User Guide, Rev. 0.0 7.18. Switches and Jumpers The product has several jumpers which must be properly configured to ensure correct operation. Figure 31: Jumper Connector For a three-pin jumper (see Figure 35), the jumper setting is designated “1-2” when the jumper connects pins 1 and 2.

  • Page 59: Usb Power Selection (Jp2)

    - User Guide, Rev. 0.0 7.18.2. USB Power Selection (JP2) Figure 33: USB Power Selection JP2 Table 38: Pin Assignment JP2 Jumper 1 Position Description Pin 1-2 Pin 2-3 USB power will be cut off in S4 & S5 state.

  • Page 60: Backlight Power Enable Selection For Lvds1 (Jp5)

    - User Guide, Rev. 0.0 7.18.4. Backlight Power Enable Selection for LVDS1 (JP5) Figure 35: Backlight Power Enable Selection JP5 Table 40: Pin Assignment JP5 Jumper 1 Position Description Pin 1-3 Pin 3-5 Backlight Enable Voltage = +3.3V Backlight Enable Voltage = +5V...

  • Page 61: Lvds Edid Selection (Jp7)

    - User Guide, Rev. 0.0 7.18.6. LVDS EDID Selection (JP7) Figure 37: LVDS EDID Selection JP7 Table 42: Pin Assignment JP7 Jumper 1 Position Description Pin 1-2 Pin 2-3 Normal Operation LVDS F/W Write “X” = Jumper set (short) and “-” = jumper not set (open) www.kontron.com...

  • Page 62: About Kontron

    Kontron is a listed company. Its shares are traded in the Prime Standard segment of the Frankfurt Stock Exchange and on other exchanges under the symbol "KBC". For more information, please visit: www.kontron.com...
