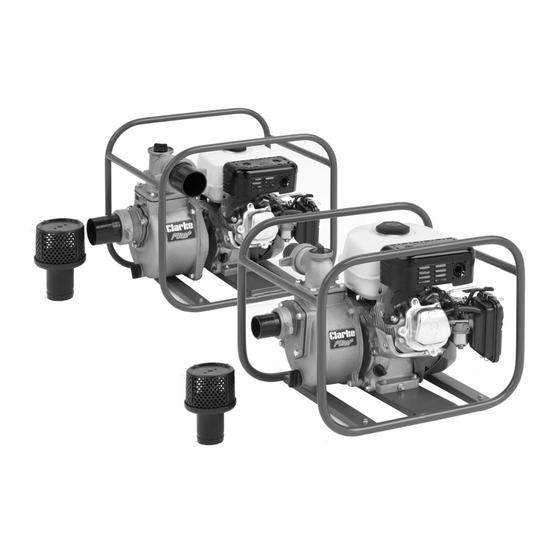

Petrol driven water pump

Advertisement

Quick Links

PETROL DRIVEN WATER PUMP
Model Nos: PW2 & PW3
PART NOS: 7140640 & 7140645
OPERATING & MAINTENANCE
INSTRUCTIONS
GC01/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PW2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Clarke PW2

  • Page 1 PETROL DRIVEN WATER PUMP Model Nos: PW2 & PW3 PART NOS: 7140640 & 7140645 OPERATING & MAINTENANCE INSTRUCTIONS GC01/14...
  • Page 2: Environmental Protection

    INTRODUCTION Thank you for purchasing this CLARKE Petrol Driven Water Pump. Before attempting to use the machine, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to the pump giving you long and satisfactory service.
  • Page 3: General Safety Rules

    GENERAL SAFETY RULES As with all machinery, there are certain hazards involved with its operation and use. Exercising caution will reduce the risk of personal injury. ALWAYS observe all safety precautions for the handling of fuel. ALWAYS thoroughly familiarise yourself with this unit & its operation, and follow all instructions in this manual.
  • Page 4 The pumps are fitted with an open impeller. The suction strainer supplied, must always be used, to ensure that large stones or other objects cannot be drawn up, as this would cause severe damage to the pump. The images show a PW3 pump although PW2 pumps are similar.
  • Page 5: Before Use

    BEFORE USE REMEMBER: Contaminated water is water containing small solids in suspension, NOT slurry, sludge, sand, or mud. Place the pump on a firm foundation and as near to the water source as possible. Ensure there is adequate drainage for the discharged water, and that there is no danger of damage to property as a result of the pumping operation.
  • Page 6 GENERAL USE OF THE PUMP Connect the suction and discharge hoses to the pump housing using the hose clamps and gaskets supplied to achieve an airtight seal. There must be no damage of any kind to the hoses which must be well protected and supported. NOTE: Hoses or pipes should be supported independently and not carried by the pump.
  • Page 7 OPERATION (REFER TO THE ILLUSTRATION ON PAGE 4) WARNING: WHEN THE ENGINE IS RUNNING, THE EXHAUST MUFFLER IS VERY HOT, TAKE CARE TO AVOID BURNS. WARNING: NEVER RUN THE ENGINE IN AN ENCLOSED SPACE - ENSURE THERE IS ADEQUATE VENTILATION. Ensure the site and pump is prepared as detailed on page 6, then proceed as follows: PRIMING &...
  • Page 8: Maintenance

    Clearance should be 0.70-0.80mm. The recommended spark plug for both the PW2 and PW3 pump is RK34200/168F. CHANGING THE OIL The oil in the engine should be changed after the first 20 hours use and thereafter every 6 months or 100 running hours.
  • Page 9: Troubleshooting

    TROUBLESHOOTING s l i l l i . y r c t i c t i t i s t i s c t i t i s f I . l i t t l u . p l l l i l i o l l i...
  • Page 10: Parts And Servicing

    PARTS AND SERVICING or spare parts and service, please contact your nearest dealer, or CLARKE International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400 PARTS & SERVICE FAX: 020 8558 3622 e-mail as follows: PARTS: Parts@clarkeinternational.com...
  • Page 11: Specifications

    SPECIFICATIONS n i l n i l n i l n i l y t i y t i y t i t e l " 2 " 3 o l f ) l l...
  • Page 12: Pump Parts Diagram

    PUMP PARTS DIAGRAM MODEL - PW2...
  • Page 13: Pump Parts List

    PUMP PARTS LIST Model - PW2 ItemPart Description 114 RK41100 23” Frame sub-assy. 115 GB/T923-88 Nut M6 116 RK41310 Rubber 117 GB/T5787 Bolt, M6×12 118 GB/T6170 Nut, M8 119 GB/T5787 Bolt, M8×32 120 RK44112 Housing, rear 121 RK44121 O-ring 122 RK44230...
  • Page 14 ENGINE PARTS DIAGRAM-MODEL PW2...
  • Page 15 PARTS LIST-MODEL PW2 ENGINE Item Part Description RK14711/168F Intake valve RK14755/168F Valve spring RK14751/168F Intake valve spring seat RK14757/168F Exhaust valve spring seat RK14758/168F RK12254/168F Inlet gasket RK16141/168F Connecting block RK16142/168F Carburetor gasket RK17330/168F Air cleaner gasket RK16100 Carburetor assy...
  • Page 16 PUMP PARTS DIAGRAM MODEL - PW3...
  • Page 17 PARTS LIST - MODEL PW3 PUMP MODEL - PW3 Item Part Description 114 RK41100 23” Frame sub-assy. 115 GB/T923-88 Nut M6 116 RK41310 Rubber 117 GB/T5787 Bolt, M6 × 12 118 GB/T6170 Nut, M8 119 GB/T5787 Bolt, M8 × 32 120 RK44112 Housing, rear 121 RK44121...
  • Page 18 PARTS DIAGRAM - PW3 ENGINE...
  • Page 19 PARTS LIST- MODEL PW3 ENGINE ItemPart Description ItemPart Description RK14415/168F Adj bolt for valve gap RK11212/168F Oil drain plug RK14410/168F Valve rocker assy RK11213/168F Washer RK14261/168F Pusher guide GB276-89 Bearing 6205 RK14250/168F Pusher RK13180/168F Crankshaft oil seal RK14455 Tappet RK11100 Crankcase RK14100 Camshaft assy...
  • Page 20 DECLARATION OF CONFORMITY - PW2...
  • Page 21 DECLARATION OF CONFORMITY - PW2...
  • Page 22 DECLARATION OF CONFORMITY - PW3...
  • Page 23 DECLARATION OF CONFORMITY - PW3...
