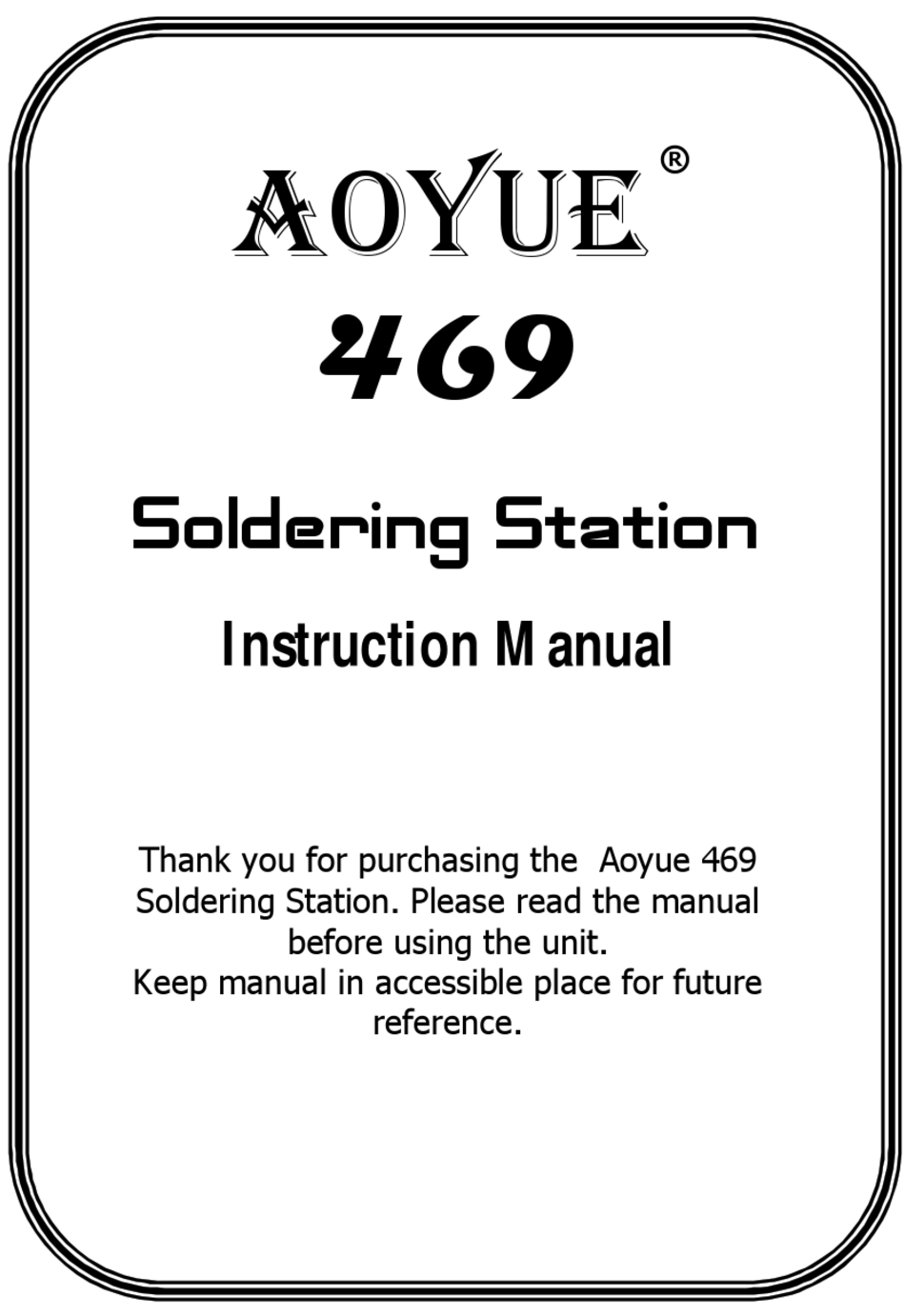

- Page 1 AOYUE ® Soldering Station Instruction Manual Thank you for purchasing the Aoyue 469 Soldering Station. Please read the manual before using the unit. Keep manual in accessible place for future reference.
-
Page 2: Table Of Contents
This manual is designed to familiarize and instruct the operator with the proper operation and maintenance of the equipment. The “Care and Safety Precautions” section explains the hazards of using any type of soldering or reworking device. Please read carefully and observe the guidelines in order to maximize usage and minimize the risk of injury or accidents . -
Page 3: Product Description
PRODUCT DESCRIPTION The Aoyue 469 is a high performance soldering iron. It is equipped with a fast acting PTC ceramic heater suitable for advance soldering needs. The separate tip and heater design offers cost efficiency and easy replacement of tips. -
Page 4: Package Content
PACKAGE CONTENT Platform Sponge Sponge Tray Nuts and Bolts... - Page 5 PACKAGE CONTENT 469 Soldering System Solder Spool Stand Solder Iron Holder...
-
Page 6: Product Assembly
PRODUCT ASSEMBL Y Screw in Solder Iron Holder. Snap in Spool Stand... - Page 7 PRODUCT ASSEMBL Y Place in Sponge Tray Note: Solder Wire not included.
-
Page 8: Safety Precautions
SAFETY PRECAUTIONS CAUTION: Improper usage can cause serious injury to personnel and/or damage to equipment and work area. For your own safety, please observe the following precautions. ● Check each component after opening the package to make sure everything is in good condition. If there are any suspected damage, do not use the item and report the issue to your vendor. -
Page 9: Specifications
SPECIFICATIONS MAIN STATION Voltage Input : available in 110V / 220V Station Dimensions: 51(w) x 59 (h) x 85 (d) mm Weight: 235 grams Power Consumption: Temperature Range: 300°C - 480°C Heating Element PTC Ceramic heater PTC ceramic voltage: available in 110V / 220V FUNCTIONS and FEATURES ... -
Page 10: Operating Guidelines
OPERATING GUIDELINES REMINDERS: Make sure the equipment is placed on a flat stable surface and all the heat-generating components placed on their respective hold- ers or stands. Ensure all function switches are OFF prior plugging to wall outlet. ... -
Page 11: Care And Maintenance
CARE AND MAINTENANCE 1. Tip Temperature : High temperature shortens tip life and may cause thermal shock to components. Always use the lowest possible temperature when soldering. 2. Cleaning : Always clean the soldering tip before use to remove any residual solder or flux adhering to it. 3. - Page 12 To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. AOYUE INTERNATIONAL LIMITED Jishui Industrial Zone, Nantou, Zhongshan City, Guangdong Province, P.R.China http://www.aoyue.co...
