18 | Keysight | Millimeter Wave Network Analyzers (N5290A/N5291A) - Cofiguration Guide

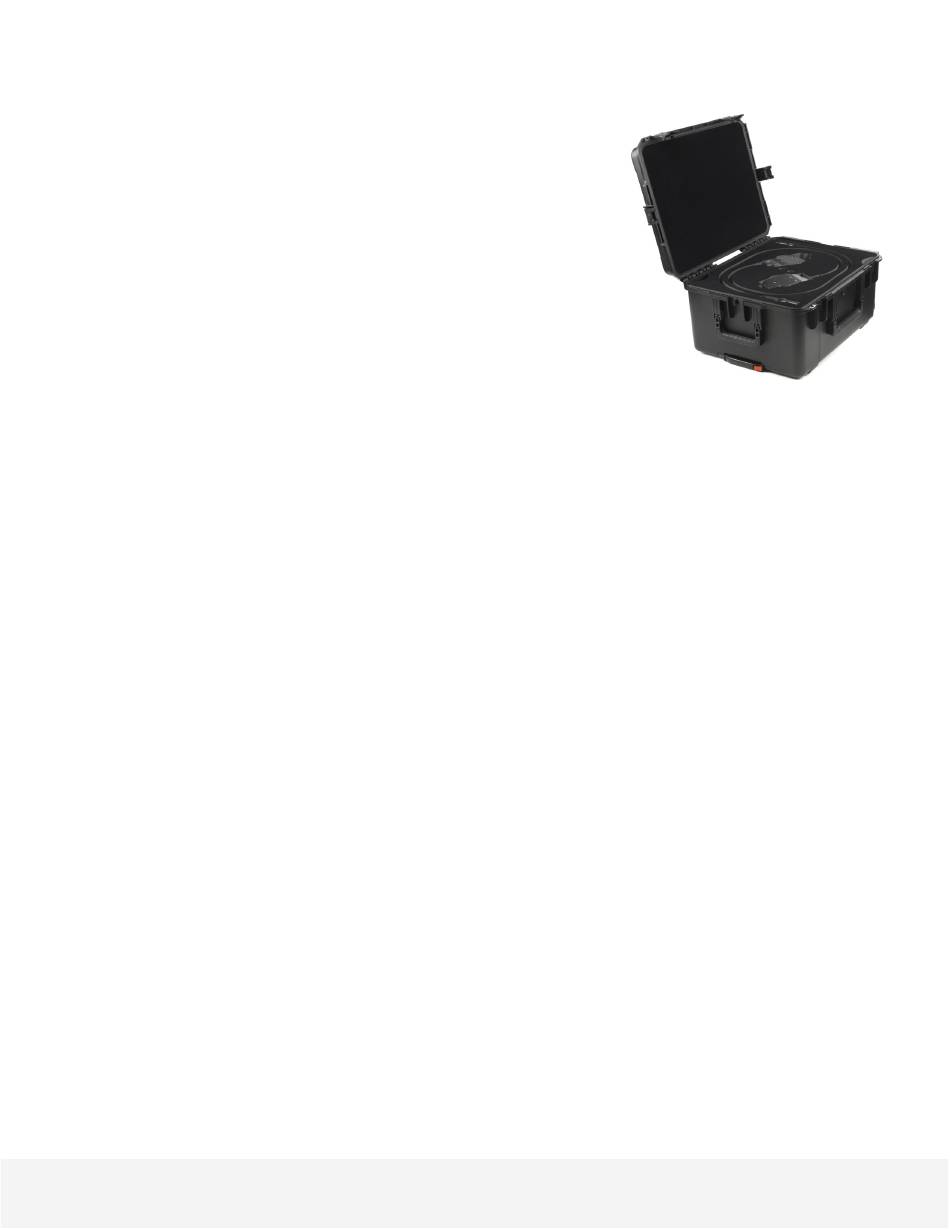

Broadband frequency extender transit case (N5290A303)
The transportation case is available for storage and transportation of the N5293A or
N5295A frequency extenders. The transportation case comes standard with the pre-
configured N5290/91A millimeter wave network analyzer solutions. For the solutions that
are configured separately the transportation case may be purchased as N5290A301. The
case is designed to transport 4 frequency extenders so that a single case is required for
2- and 4-port systems.
The transit case may also be purchased as P/N: N5295-80003.
4 in-lb. 14 mm open end torque wrench (P/N: 8710-2813)
The 4 in-lb 14mm Torque wrench is designed to provide a repeatable connection to
ruggedized 1.0 mm connector of the N5293A and N5295A frequency extenders.
This torque wrench comes with the 85058B calibration kit.
It is a recommended accessory when the an 85059B calibration kit is not purchased with
the system.
Cable adapter for OML/ VDI frequency extenders (N5290A304)
This accessory is required if there is a need to connect an OML or VDI module to the
N5292A test set controller and use the configured millimeter wave system to control the
OML/VDI frequency extenders.
The adapter assembly will connect directly to the N5292A and provide a standard 1.2 m
length cable that would allow users to connect directly to the RF, LO and IF inputs of the
OML/VDI frequency extenders.
For the VDI frequency extenders, use the existing DC power supply purchased with the
frequency extenders or order the VDI-175 DC power supply for the standard modules.
The mini VDI modules are supplied with a DC power supply.
For the OML frequency extenders, an external DC power supply is required. Purchase
the N5260AK91 which will include a U1570B power supply and frequency extender DC
supply adapter.
